Toshiba Part #/MPN: THNSNJ960PCSZ
DiscTech Item #: TOS-THNSNJ960PCSZ-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 500/400
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

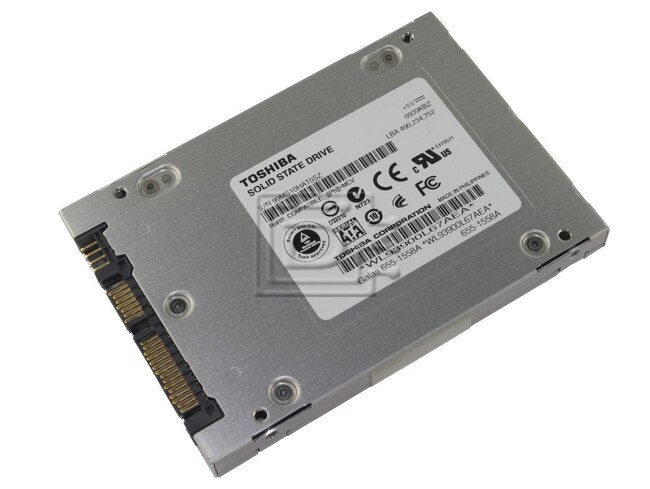

Toshiba HK3R2 Series THNSNJ960PCSZ 960GB 6Gbps eMLC Read Intensive 1-DWPD SATA SSD - Brand New
Toshiba HK3R2 Series THNSNJ960PCSZ 960GB 6.0 Gb/s Enterprise Multi-Level Cell Read Intensive 1-DWPD Serial ATA Solid State Drive - Brand New
Enterprise Read Intensive SSD
The HK3R2 Enterprise SATA SSD series is optimized for read-intensive enterprise storage applications where performance, low power consumption and data-integrity are critical. Equipped with a Toshiba designed SATA SSD controller, the series comes in a 2.5-inch 7.0 mm form factor and with capacities of 120 GB (THNSNJ120PCSZ), 240 GB (THNSNJ240PCSZ), 480 GB (THNSNJ480PCSZ) and 960 GB (THNSNJ960PCSZ). The read-intensive Enterprise SSDs incorporate Toshiba Quadruple Swing-By Code (QSBC), a highly efficient error correction code (ECC) for improved reliability. 1 DWPD (Drive Writes Per Day) endurance with random 4 KiB workload, Power Loss Protection and end-to-end data protection highlight the enterprise features of the HK3R2 Enterprise SSD series.
Key Features
- SATA 6.0 Gbit/s Interface
- Capacities up to 960 GB
- 1 DWPD endurance w/ full random 4 KiB workload
- Power Loss Protection and End-to-End Protection
- Quadruple Swing-By Code Technology (QSBC)
Application
- Web / File Server
- Content Distribution NetworkVideo on Demand (VoD) / Media Streaming
- Operating System Boot & Logging
- Low-Duty Storage Systems
- Industrial Applications
Compatibility:
This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.
Basic Specification | |
---|---|
Intel Model Number | THNSNJ960PCSZ |
Interface | SATA-3.2 |
Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Memory Type | MLC |
Formatted Capacity | 960GB |
Sustained 64KiB Sequential Read | 500 MiB/s |
Sustained 64KiB Sequential Write | 400 MiB/s |
Sustained 4KiB Random Read | 75,000 IOPS |
Sustained 4KiB Random Write | 14,000 IOPS |
Reliability | |
MTTF | 2,000,000 hours |
DWPD | 1 |
Power Requirements | |
Supply Voltage | 5 V ±5 % |
Power Consumption (Operating) | 4.5 W Typ. |
Power Consumption (Ready) | 1.0 W Typ. |
Dimension | |
Height | 7.0 mm +0 , -0.5 mm |
Width | 69.85 ±0.25 mm |
Length | 100.45 mm Max. |
Weight | 60 g Max |
Environmental Specifications | |
Temperature (Operating) | 0 to 55 °C |
Relative Humidity (Operating) | 5 to 95 % R.H. |
Vibration (Operating) | 21 m/s {2.17 Grms} (100 to 800 Hz) |
Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
