TRIPP LITE Part #/MPN: B020-U08-19KTAA
DiscTech Item #: TRI-B020-U08-19KTAA-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 3-5 business daysSpecial Order - Ships in 3-5 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: Ethernet RJ45, VGA, PS2
Bays/Ports/Slots: 8
U Height: 1U
Voltage: 110-240V Multi
Resolution: 1280x1024
Color: Black

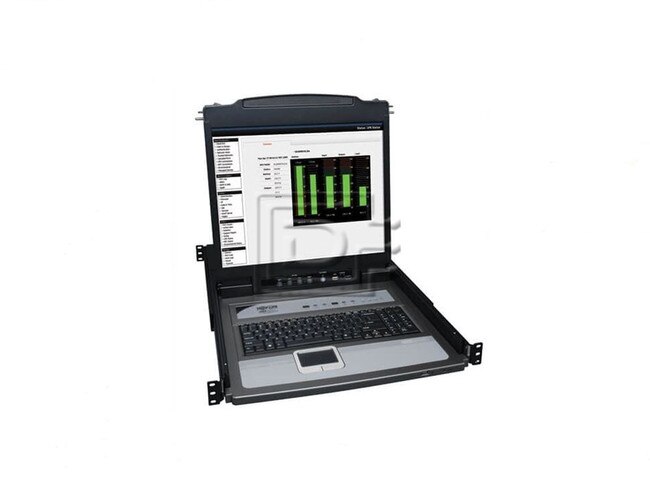

Tripp Lite NetDirector B020-U08-19KTAA 8-Port 1U Rack Console KVM Switch w/ 19in LCD Display & 8-PS2/USB Combo Cabling - TAA Compliant - Brand New
Tripp Lite NetDirector B020-U08-19KTAA 8-Port 1U Rackmount Console KVM Switch with 19" LCD Display & 8-PS2/USB Combo Cabling - TAA / Trade Agreements Act Compliant - Brand New
Overview
Tripp Lite’s B020-U08-19KTAA KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.
The B020-U08-19KTAA has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.
The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, and an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19KTAA stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Saves Space and Money
- Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer
- Mounts into 19”-wide rack, 26”-38” deep
- Control up to 8 computers/servers from one easily accessible console – ideal when rack space is at a premium
- Includes eight P778-Series cables that support computers with either PS/2 or USB connections
- Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
- Eliminates need to buy separate monitors, keyboards and mice for each computer/server
Simplifies IT Tasks
- Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
- Hot pluggable; add or remove computers without having to power down the switch
- Auto-scan mode automatically sequences through all active ports that are accessible to the user
Large 19” LCD
- Extra-wide display makes multitasking easier
- Supports video resolutions up to 1280 x 1024
- DDC emulation allows optimal output to LCD
Multi-Level Password Security
- Enhances security by limiting access to an administrator and up to 4 local users
- Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed
Expandability and Long-Lasting Reliability
- A console cable kit is included for connecting the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit
- An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral with all the connected servers
- Compatible with all major operating systems for easy integration into your existing structure
- Firmware is upgradable with included cable and utility
- Heavy-duty steel housing stands up to frequent use
TAA Compliant
- Complies with the Federal Trade Agreement Act (TAA) for GSA Schedule purchases
System Requirements
- Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
- P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
- Compatible with all major operating systems
- Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W
Package Includes
- B020-U08-19KTAA 1U rackmount console KVM switch with 19” LCD
- (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
- USB/PS2 combo console cable kit
- RJ11 to DB9 firmware upgrade cable
- C13 to 5-15P power cord
- Grounding wire
- Rackmount hardware
- CD with owner's manual
- Quick start guide
RACK-MOUNT & DESKTOP KVM SWITCHES | |
---|---|
Model Number | B020-U08-19KTAA |
OVERVIEW SPECIFICATIONS | |
Users | 1 |
Console | Yes |
Max CPU | 8 |
INPUT SPECIFICATIONS | |
Nominal Input Voltage(s) Supported | 100V AC 110V AC 115V AC 120V AC 127V AC 140V AC 200V AC 208V AC 220V AC 230V AC 240V AC |
Input Frequency | 50/60Hz |
Input Current | 120V (0.8A) / 230V (0.4A) |
PHYSICAL SPECIFICATIONS | |
Unit Dimensions (hwd / in.) | 1.75 x 17 x 27 |
Unit Weight (lbs.) | 30.6 |
Included Mounting Accessories | Yes |
Color | Black |
LCD Monitor (in) | 19 |
ENVIRONMENTAL SPECIFICATIONS | |
Storage Temperature Range | -4 Degrees F to 140 degrees F (-20 to +60 C) |
Relative Humidity | 0 to 80% RH, Non-Condensing |
Operating Temperature | 32 Degrees F to 120 Degrees F (0 to 50 C) |
COMMUNICATIONS SPECIFICATIONS | |
Port Control | Push Buttons, Hotkeys, OSD |
IP Remote Access | No |
CONNECTION SPECIFICATIONS | |
Ports | 8 |
Computer/Server Ports | (x8) HD18 (Female) |
Firmware Upgrade Port | RJ45 |
PC/Server Connections | PS/2 USB VGA |
Included Cable (Side A) - Connector 1 | HD18 Male |
Included Cable (Side B) - Connector 2 | PS/2 male |
Included Cable (Side B) - Connector 3 | PS/2 male |
Included Cable (Side B) - Connector 4 | USB A Male |
SPECIAL FEATURES SPECIFICATIONS | |
Cat5 KVM Switch | No |
FEATURES & SPECIFICATIONS | |
Autoscan (Y,N) | Y |
CERTIFICATION SPECIFICATIONS | |
Certifications | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
Approvals | UL, cUL, CE, FCC, RoHS |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 31 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
