Ubiquiti Networks Part #/MPN: AF-24HD
DiscTech Item #: UBI-AF-24HD-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 1
Wattage/VA: 50W
Voltage: 50V

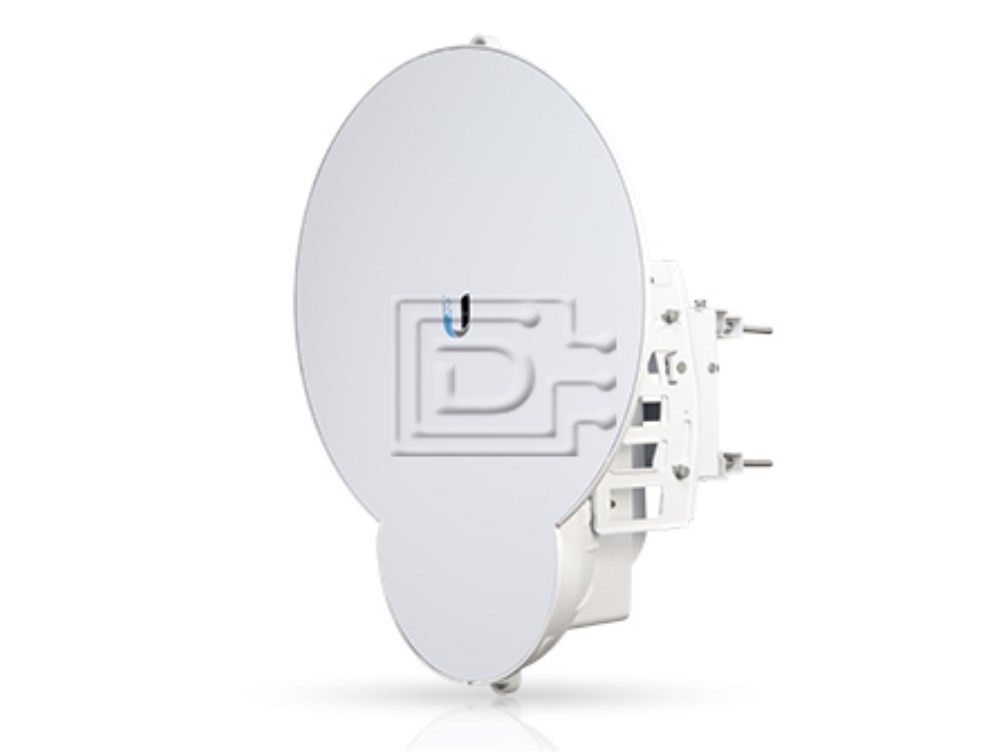

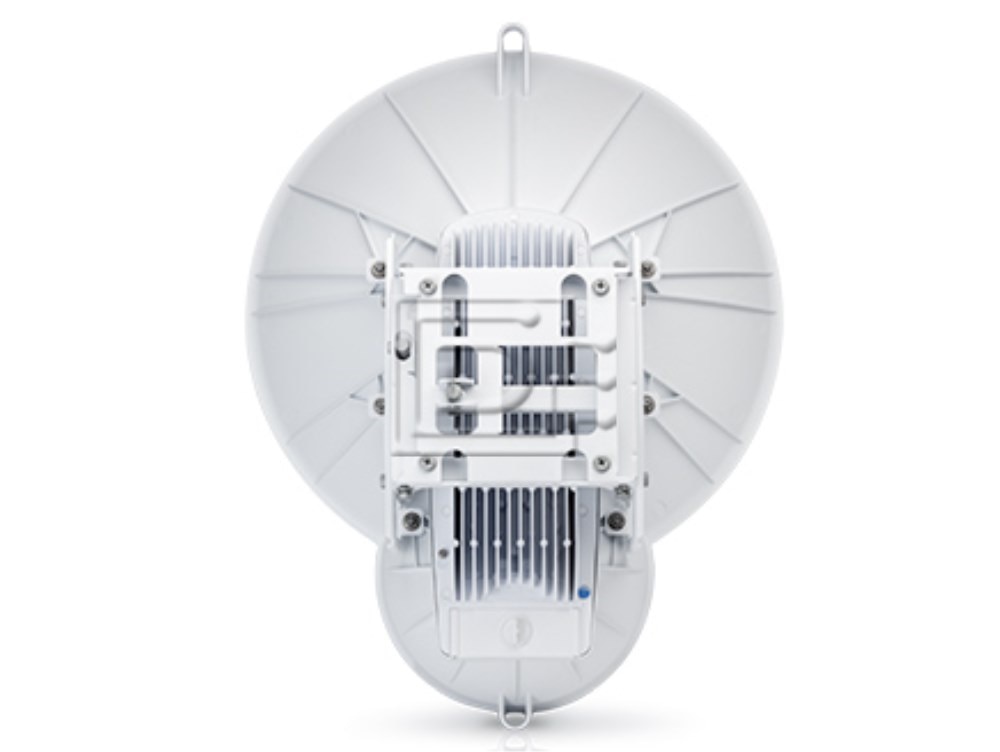

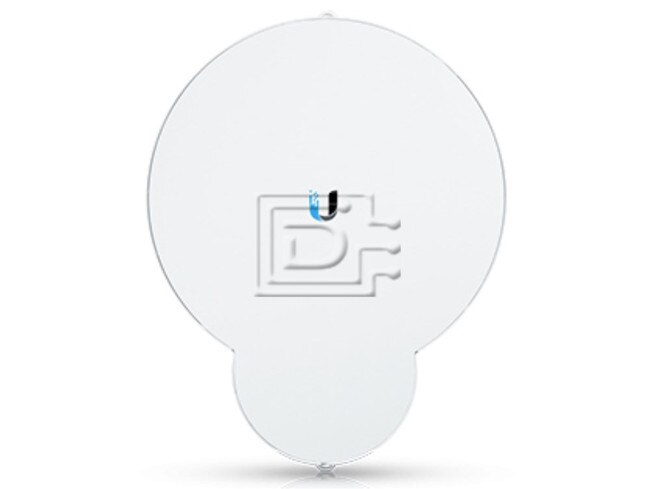

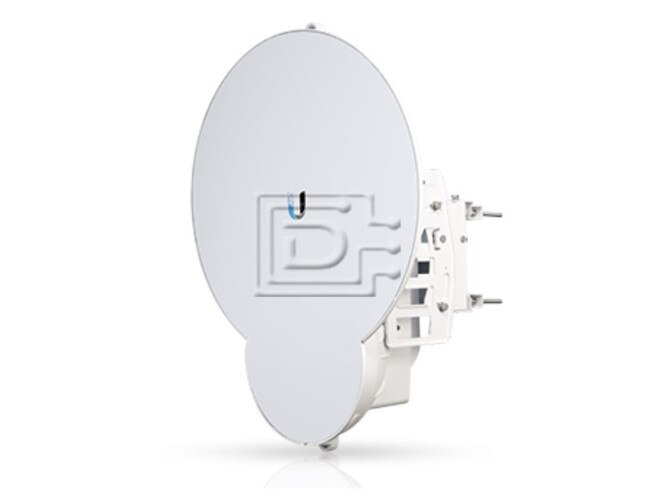

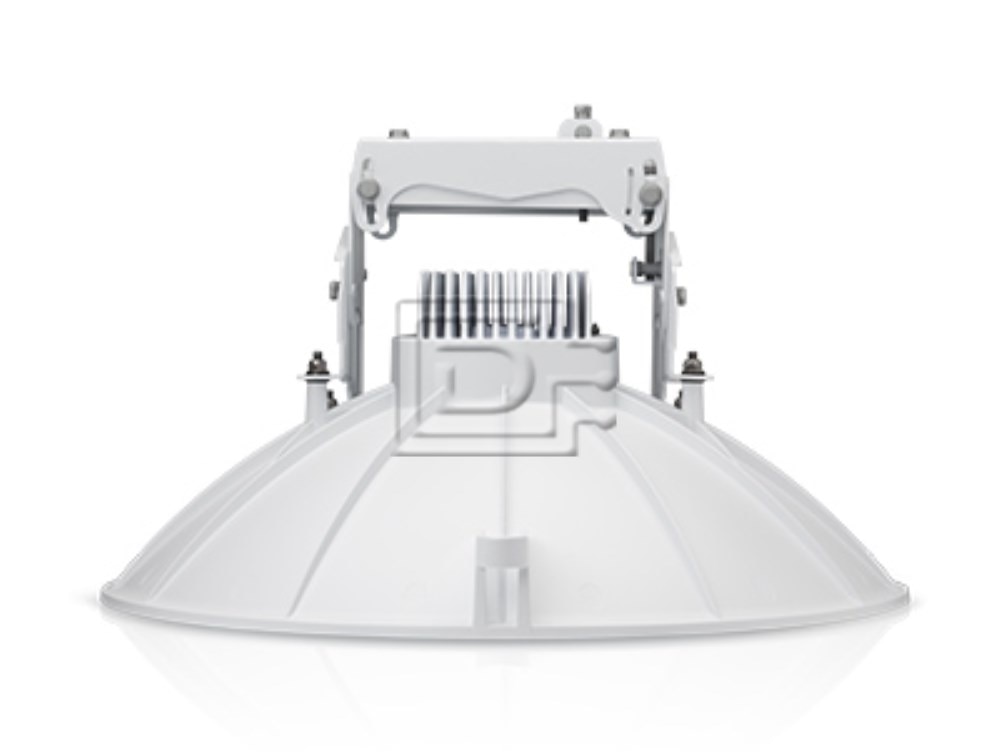

Ubiquiti Networks AF-24HD airFiber 24 GHz HD Point To Point Wireless Giabit Radio - Brand New
Ubiquiti Networks AF-24HD airFiber 24 GHz High Definition Point-to-Point Wireless Giabit Radio - Brand New
Best-in-Class Performance and Range
Our INVICTUS custom silicon dramatically improves wireless performance. The AF-24HD model supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
The airFiber AF-24/AF-24HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension.
Robust Mechanical Assembly
An independent lab has tested the airFiber mechanical assembly to meet MIL-STD-810G, a rigorous United States MIL STD (Military Standard) that defines a variety of challenging environmental conditions.
The mechanical assembly has also undergone vibration testing using an extended version of IEC 60068 2 6, an environmental standard of the IEC (International Electrotechnical Commission).
SPECIFICATIONS | |
---|---|
Model Number | AF-24HD |
Operating Frequency | 24.05 - 24.25 GHz |
Dimensions | 593 x 768 x 370 mm (23.35 x 30.24 x 14.57 in) |
Weight | 17.3 kg (38.14 lb) Mount included |
Max Power Consumption | 50 W |
Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
Power Method | Passive Power over Ethernet |
Supported Voltage Range | 42-58VDC |
Certifications | CE, FCC, IC |
Wind Loading | 770 N @ 200 km/hr (170Ibf @ 125 mph) |
Wind Survivability | 200 km/hr (125 mph) |
Mounting | Pole Mount Kit (included) |
Operating Temperature | -40 to 55° C (-40 to 131° F) |
LEDs | (8) Status LEDs: Data Port Speed Data Port Link/Activity Configuration Port Speed Configuration Port Link/Activity GPS Synchronization Modulation Mode Master/Slave RF Status (1) Two-Digit LED Display Calibrated in dBm |
INTERFACE | |
Data Port | (1) 10/100/1000 Ethernet Port |
Configuration Port | (1) 10/100 Ethernet Port |
Auxiliary Port | (1) RJ-12, Alignment Tone Port |
SYSTEM | |
Maximum Throughput | 2 Gbps |
Maximum Range | 20+ km |
Packets per Second | >1 Million |
Encryption | 128-bit AES |
Uplink/Downlink Ratio | 50% Fixed |
RADIO FREQUENCY | |
GPS | GPS Clock Syncronization |
TRANSCEIVER | |
EIRP | ~33 dBm(FCC/IC) ~20 dBm (CE) |
Frequency Accuracy | +/-2.5 ppm without GPS Synchronization +/-0.2 ppm with GPS Synchronization |
Channel Bandwidth | 100 MHz |
Operating Channels | 24.1 GHz, 24.2 GHz |
Modulation | 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO 1/4x QPSK SISO |
INTEGRATED SPLIT ANTENNA | |
TX Gain | 33 dBi |
RX Gain | 40 dBi |
Beamwidth | <3.5° |
Front-to-Back Ratio | 70 dB |
Polarity | Dual-Slant Polarization |
Cross-Polarity Isolation | >28dB |
Click here to view the manufacturer's item description/brochure
Weight: 38.5 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
