Ubiquiti Networks Part #/MPN: AF-5U
DiscTech Item #: UBI-AF-5U-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 1
Wattage/VA: 40W
Voltage: 50V

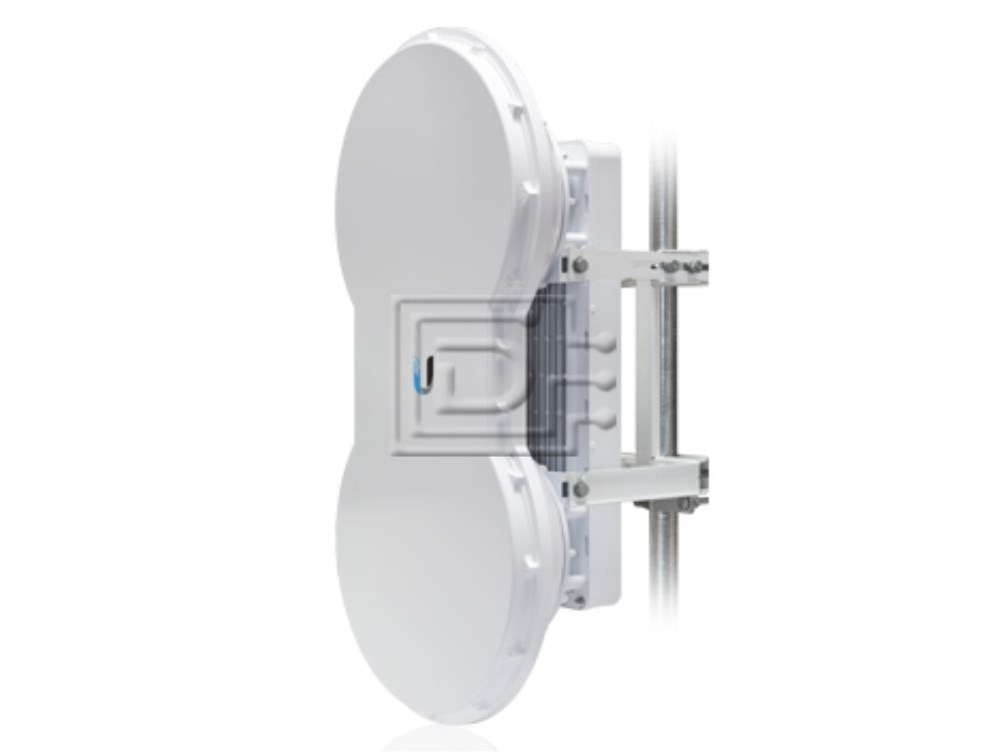

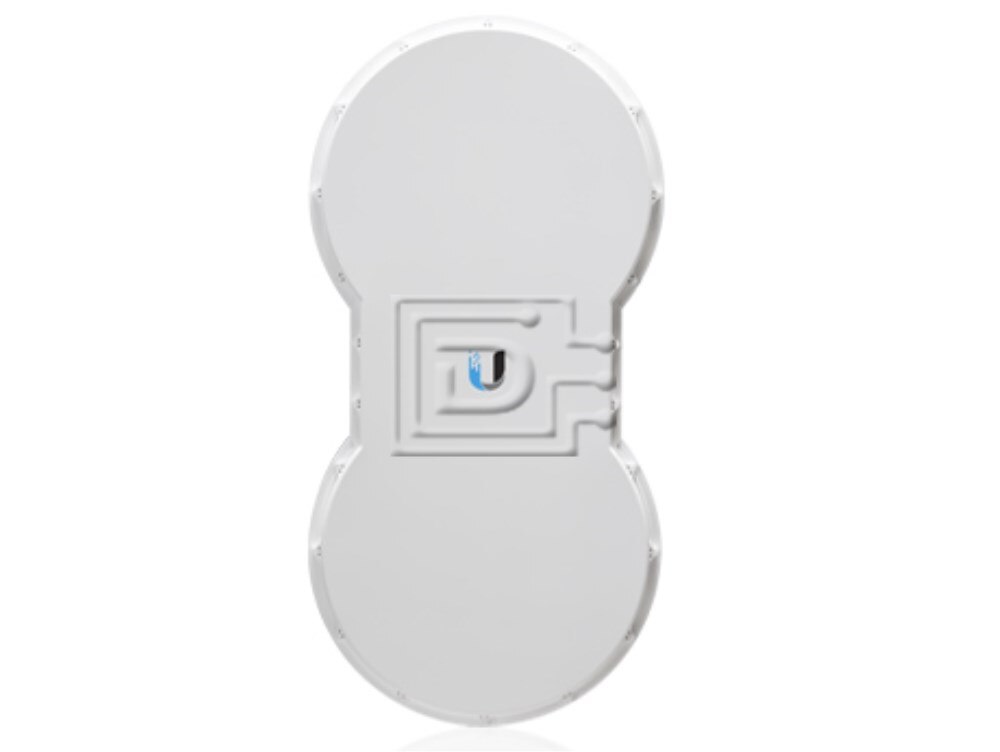

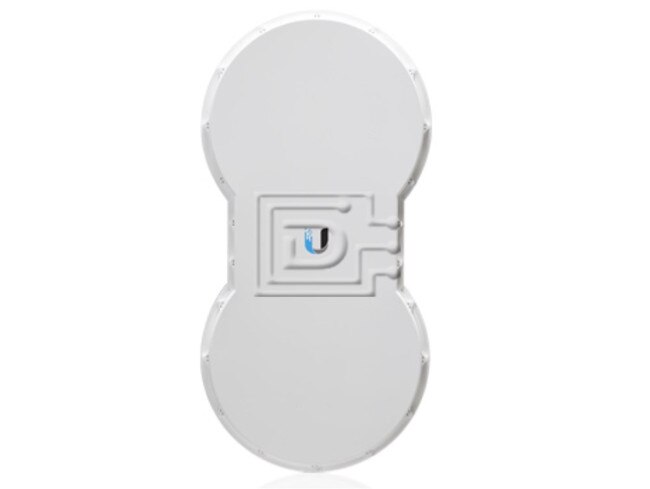

Ubiquiti Networks AF-5U airFiber 5 GHz High-Band Point To Point Wireless Gigabit Radio - Brand New
Ubiquiti Networks AF-5U airFiber 5 GHz High-Band Point-to-Point Wireless Gigabit Radio for - Brand New
airFiber 5U
The high-band (5.7 - 6.2 GHz) model, AF-5U, has robust filtering to enable co-location with devices operating in the lower 5 GHz bands while allowing operation at a higher output power in many areas of the world.
Superior Processing
Ubiquiti Networks introduces our proprietary INVICTUS™ core communications processing engine. The speed, power, and efficiency of this integrated circuit enhances the performance of the airFiber AF-5U.
Efficient Use of 5 GHz Band
airFiber AF-5U features 1 MHz center channel resolution with market-leading Power Envelope Tracking technology. The airFiber AF-5U accurately and continuously controls transmit power relative to the band edge. The power level automatically tracks to optimize performance near band edges, allowing you to choose the part of the band with the least interference.
Long-Range Links
Newly developed for the airFiber AF-5U, the patent-pending xRT feature uses an innovative, adaptive multi-channel coding scheme to enhance radio transceiver performance, thereby maximizing your link budget and spectrum utilization – while still maintaining regulatory compliance. This results in links that can span distances from 10 m up to 100+ km.
Quick and Easy Installation

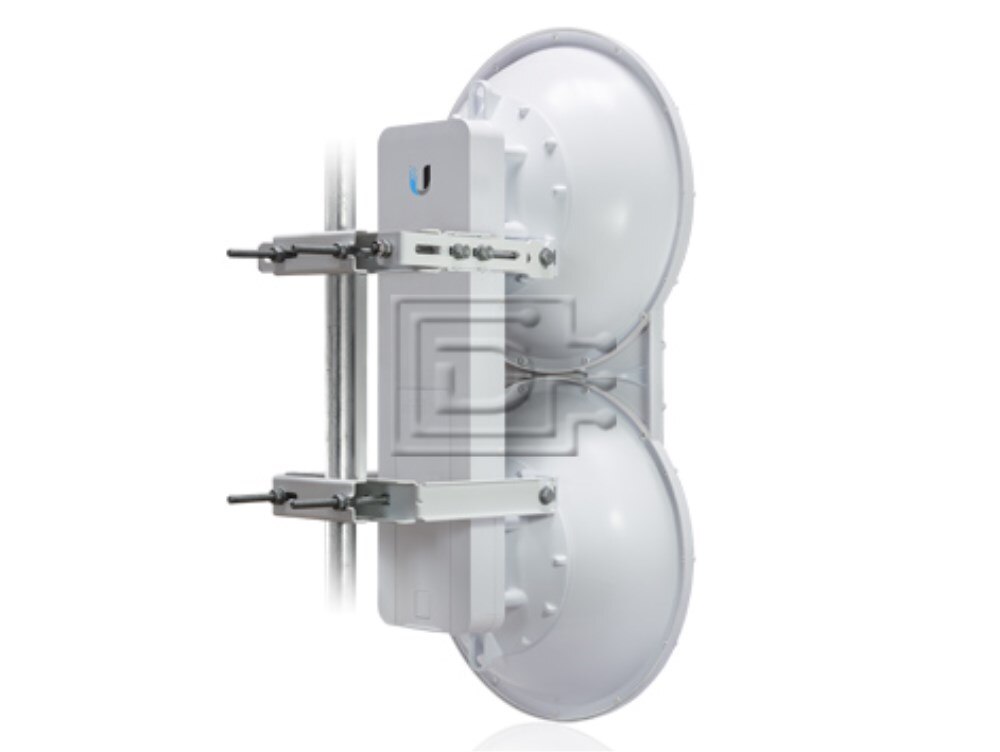

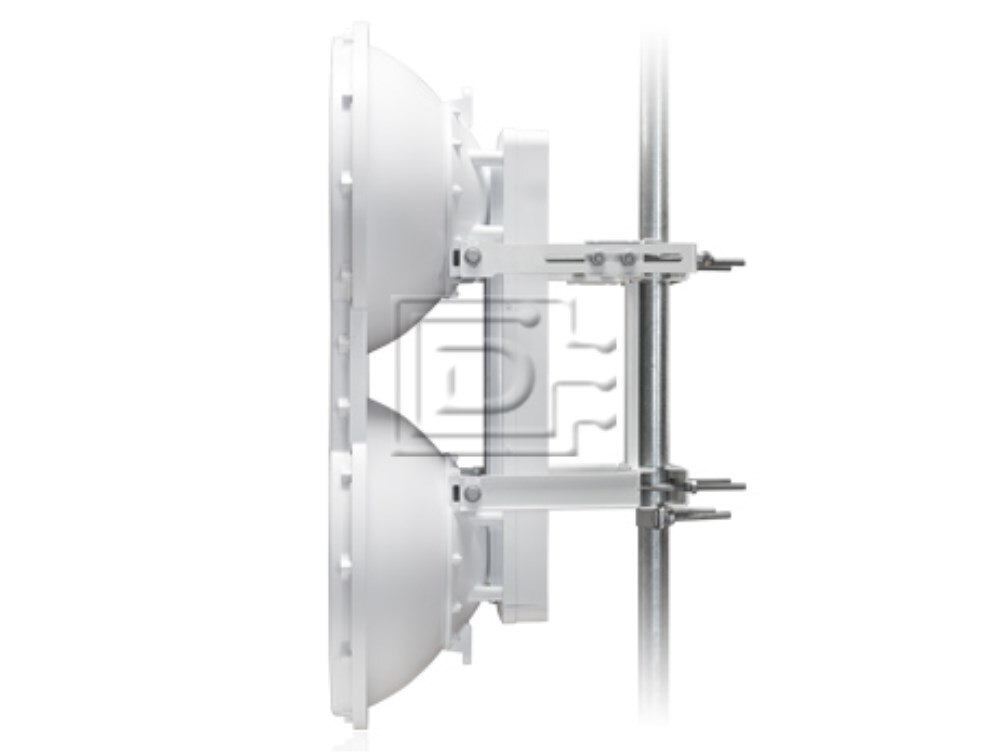

The unique sliding-clamp design of the airFiber AF-5U allows mounting hardware to be pre assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the airFiber radio during installation.
Radio Alignment Display
Newly designed for the airFiber AF-5U, the Radio Alignment Display (RAD) makes aiming quicker and easier. The dual, calibrated signal strength indicators display the actual signal strength on the local and remote airFiber radios in real time. The comprehensive array of radio status indicators display the following:
- GPS synchronization status
- Master/slave mode
- RF link status
- RF overload warning
- Current modulation mode
- Link activity and speed for wired management and data ports
SPECIFICATIONS | |
---|---|
Model Number | AF-5U |
Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 in) |
Weight | 16 kg (35.27 lb) Mount included |
Max Power Consumption | 40 W |
Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
Power Method | Passive Power over Ethernet |
Supported Voltage Range | 42-58VDC |
Certifications | CE, FCC, IC |
Mounting | Pole Mount Kit (included) |
Wind Loading | 863 N @ 200 km/hr (194Ibf @ 125 mph) |
Wind Survivability | 200 km/hr (125 mph) |
Operating Temperature | -40 to 55° C (-40 to 131° F) |
LEDs | (12) Status LEDs: Data Port Link/Activity Data Port Speed Management Port Link/Activity Management Port Speed GPS Synchronization Master/Slave Link Status Modulation Mode 0.25x to 4x, 6x, 8x, 10 (Unlabeled), Overload Remote and Local Displays (Calibrated Signal Strength |
OPERATING FREQUENCY | |
FCC 15.247, IC RSS-210 ETSI EN 302 502 Other Regions | 5725 - 5850 MHz 5725 - 5875 MHz 5725 - 6200 MHz |
INTERFACE | |
Data Port | (1) 10/100/1000 Ethernet Port |
Management Port | (1) 10/100 Ethernet Port |
Auxiliary Port | (1) RJ-12, Alignment Tone Port |
SYSTEM | |
Maximum Throughput | 1.2+ Gbps |
Maximum Range | 100+ km (Dependent on Regulatory Region) |
Packets per Second | >1 Million |
Encryption | 128-bit AES |
Uplink/Downlink Ratio | 50% Fixed |
Radio Frame Synchronization | GPS |
Dynamic Frequency Selection | CE,(FCC/IC Not Applicable) |
RADIO FREQUENCY | |
GPS | GPS Clock Synchronization |
TRANSCEIVER | |
EIRP | ~50 dBm(Dependent on Regulatory Region and Frequency Band) |
Frequency Accuracy | +/-2.5 ppm without GPS Synchronization +/-0.2 ppm with GPS Synchronization |
Channel Bandwidth | 10/20/30/40/50 MHz |
Modulation | 1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO 1/2 Rate QPSK xRT 1/4 Rate QPSK xRT |
INTEGRATED SPLIT ANTENNA | |
TX Gain | 23 dBi |
RX Gain | 23 dBi |
Beamwidth | 6° |
Front-to-Back Ratio | 70 dB |
Polarity | Dual-Slant Polarization |
Cross-Polarity Isolation | >28dB |
Click here to view the manufacturer's item description/brochure
