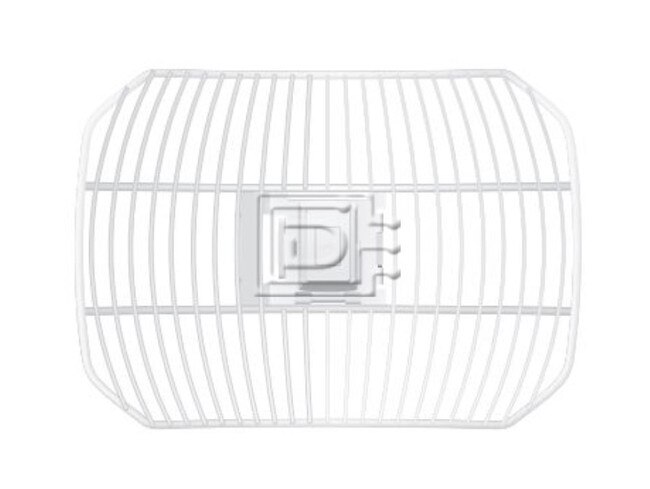

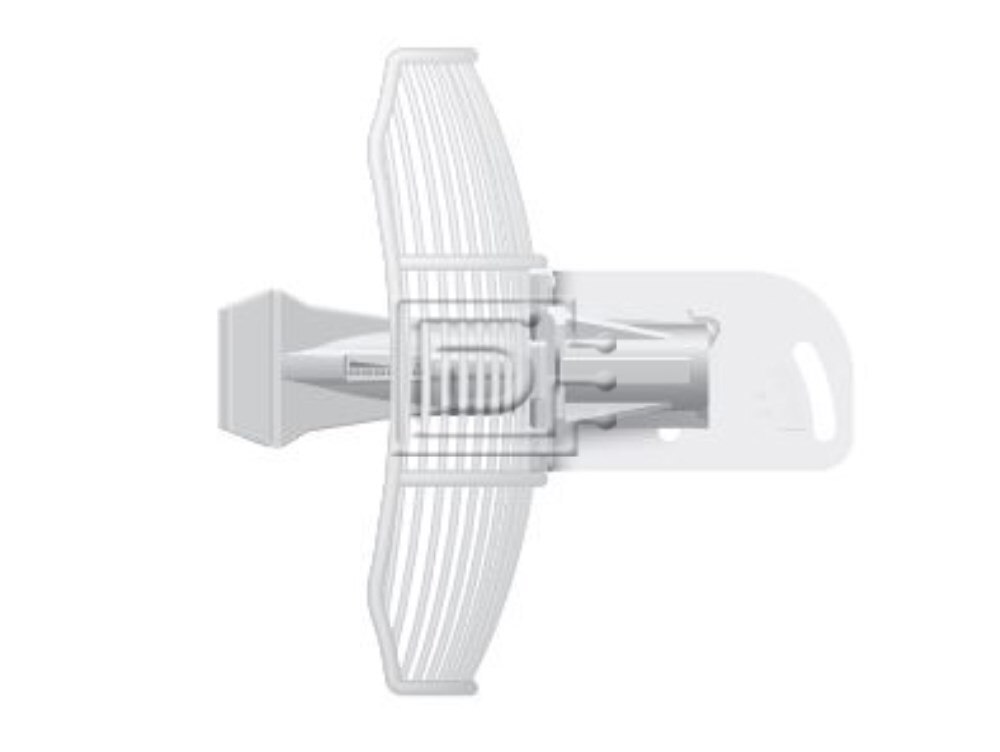

Ubiquiti Networks AG-HP-2G16 airGrid M2 HP Wireless Broadband Antenna

Ubiquiti Networks Part #/MPN: AG-HP-2G16

DiscTech Item #: UBI-AG-HP-2G16-BN-1Y

$99.00

Brand New
Warranty:1 Year Manufacturer
Low Stock:Call for ETA

Back

$99.00

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 1

Wattage/VA: 3W

Voltage: 24V

Ubiquiti Networks AG-HP-2G16 airGrid M2 HP Wireless Broadband Antenna - Brand New

Ubiquiti Networks AG-HP-2G16 airGrid M2 HP 16dBi airMAX Wireless Broadband Antenna - Brand New

airGrid™M
Utilizing InnerFeed™ technology, the new airGrid™M HP Series from Ubiquiti Networks™ represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti’s InnerFeed and airMAX™ (TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).

Complete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. airGridM operates in the worldwide, license-free frequency range of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range up to 30+ km.

The low-cost, high-performance, robust “all-in-one” design and light weight of airGridM make it versatile and ideal in several different applications.

Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency.

Compared to other systems in its class, the airGridM delivers superior performance in reduced latency, throughput, and scalability.

Intelligent QoS Priority is given to voice/video for seamless access.
Scalability High capacity and scalability.
Long Distance Capable of high-speed, 30+ km links.

Easy, No Tool Assembly
The updated mechanical design makes assembling and disassembling the airGridM, literally, a snap. No tools are required.

You simply snap the feed, antenna, mounting bracket and rear housing together for a secure, solid assembly.

airGrid M2 HP
Model: AG-HP-2G16

2412 - 2462 MHz
16 dBi
Antenna Size: 370 x 270 mm

SYSTEM INFORMATION
Model Number	AG-HP-2G16
Processor Specs	Atheros MIPS 24KC, 400 MHz
Memory Information	32 MB SDRAM, 8 MB Flash
Networking Interface	(1) 10/100 Ethernet Port
REGULATORY/COMPLIANCE INFORMATION
Wireless Aprovals	FCC Part 15.247 IC RS210 CE
RoHS Compliance	Yes
PHYSICAL/ELECTRICAL ENVIRONMENTAL
Enclosure Characteristics	Outdoor UV Stabilized Plastic
Mounting Kit	Pole Mounting Kit (Included)
Max Power Consumption	3 W
Power Supply	24V 0.5A PoE Adapter (Included)
Power Method	Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature	-30 to 75° C
Operating Humidity	5 to 95% Condensing
Shock and Vibration	ETS1300-019-1.4
EN 302 326 DN2
SPECIFICATIONS
Dimensions	370 x 270 x 270 mm (Mount Included)
Weight	1478 g (Mount Included)
Wind Survivability	125 mph
Wind Loading	8 Ibf @ 125 mph
ANTENA/RADIO INFORMATION
Operation Frequency	2412 - 2462 MHz
Ourput Power	28 dBm
Max VSWR	>1.5:1
Gain	16 dBi
