Ubiquiti Networks Part #/MPN: AM-2G15-120
DiscTech Item #: UBI-AM-2G15-120-BN-1Y
- Brand New
- Warranty:1 Year Manufacturer
- Low Stock:Call for ETA

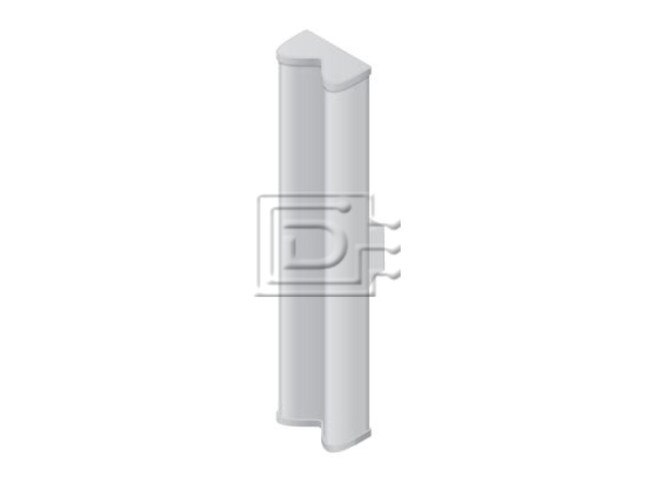

Ubiquiti Networks AM-2G15-120 airMAX 120 Degree 2.4GHz Basestation Sector Antenna - Brand New
Ubiquiti Networks AM-2G15-120 airMAX 120 Degree 2.4GHz Basestation Sector Antenna - Brand New
Sector Coverage
The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was desgned to seamlessly integrate with RocketM radios (RocktM sold separately).
Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology
Unlike standard WI-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airetime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent Qos Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high-speed, carrier class links.
ANTENNA CHARACTERISTICS | |
---|---|
Model | AM-2G15-120 |
Dimensions (mm) | 700 x 145 x 93 |
Weight | 4.0 kg |
Frequency Range | 2.3 - 2.7 GHz |
Gain | 15.0 - 16.0 dBi |
HPOL Beamwidth | 123° (6 dB) |
VPOL Beamwidth | 118° (6 dB) |
Electrical Beamwidth | 9° |
Electrical Downtilt | 4° |
MAX. VSWR | 1.5:1 |
Wind Survivability | 125 mph |
Wind Loading | 24 Ibf @ 100 mph |
Polarizaion | Dual-Linear |
Cross-pol Isolation | 28 dB Min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Click here to view the manufacturer's item description/brochure
Weight: 9 lb
Warranty: 1 Year Manufacturer
Brand New
1 Year Manufacturer Warranty
