Ubiquiti Networks Part #/MPN: AM-5AC21-60
DiscTech Item #: UBI-AM-5AC21-60-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

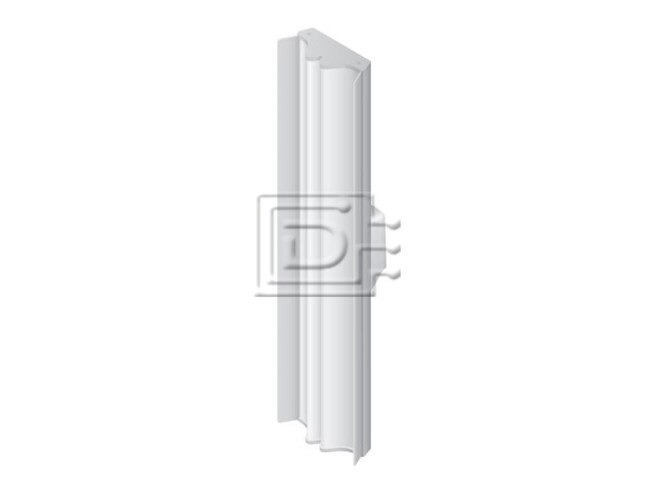

Ubiquiti Networks AM-5AC21-60 airMAX ac Sector 60 Degree 5GHz Basestation Sector Antenna - Brand New
Ubiquiti Networks AM-5AC21-60 airMAX ac Sector 60 Degree 5GHz Basestation Sector Antenna - Brand New
Overview
Ad the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket5ac radios.
They are also compatible with the RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Performance
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).
Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
| ANTENNA CHARACTERISTICS | |
|---|---|
| Model | AM-5AC21-60 |
| Dimensions | 750 x 173 x 78 mm (29.53 x 6.81 x 3.07 in) |
| Weight | 4.8 kg (10.58 lbs) |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 21 dBi |
| HPOL Beamwidth | 60° (6 dB) |
| VPOL Beamwidth | 60° (6 dB) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| MAX. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h 125 mph |
| Wind Loading | 391 N @ 200 km/h 88 Ibf @ 125 mph |
| Polarizaion | Dual-Linear |
| Cross-pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Click here to view the manufacturer's item description/brochure
Weight: 10.5 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
