Ubiquiti Networks ES-48-750W Switches

Ubiquiti Networks Part #/MPN: ES-48-750W

DiscTech Item #: UBI-ES-48-750W-BN-1Y


$1,029.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$1,029.00

Interface Types: Ethernet RJ45, SFP

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 48

U Height: 1U

Wattage/VA: 750W

Voltage: 110-240V Multi

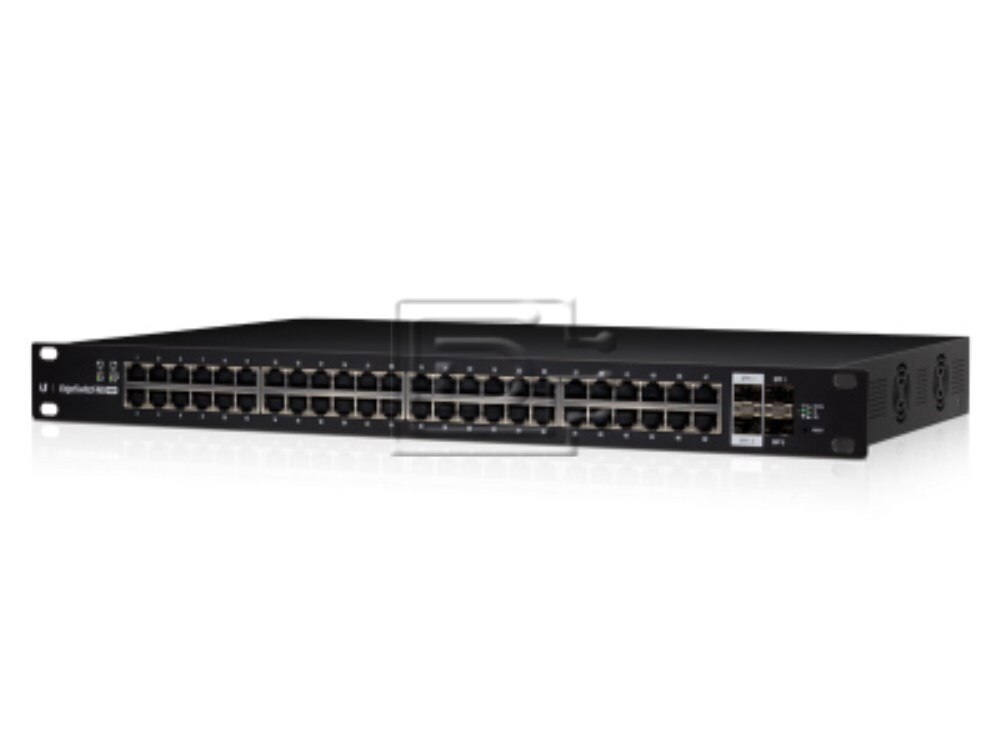

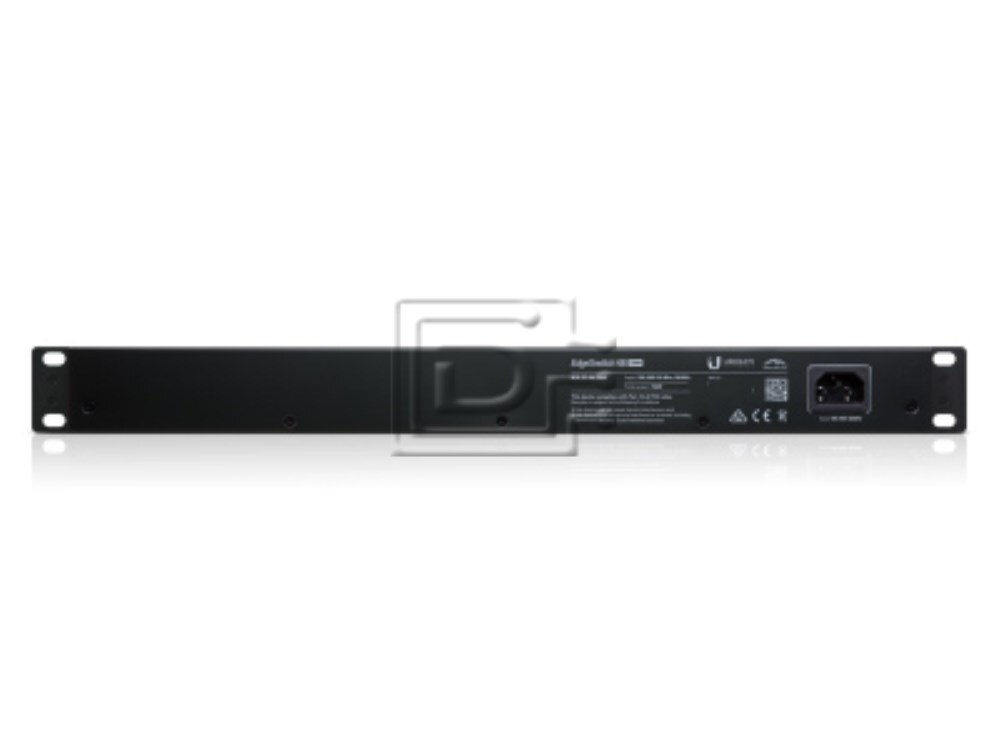

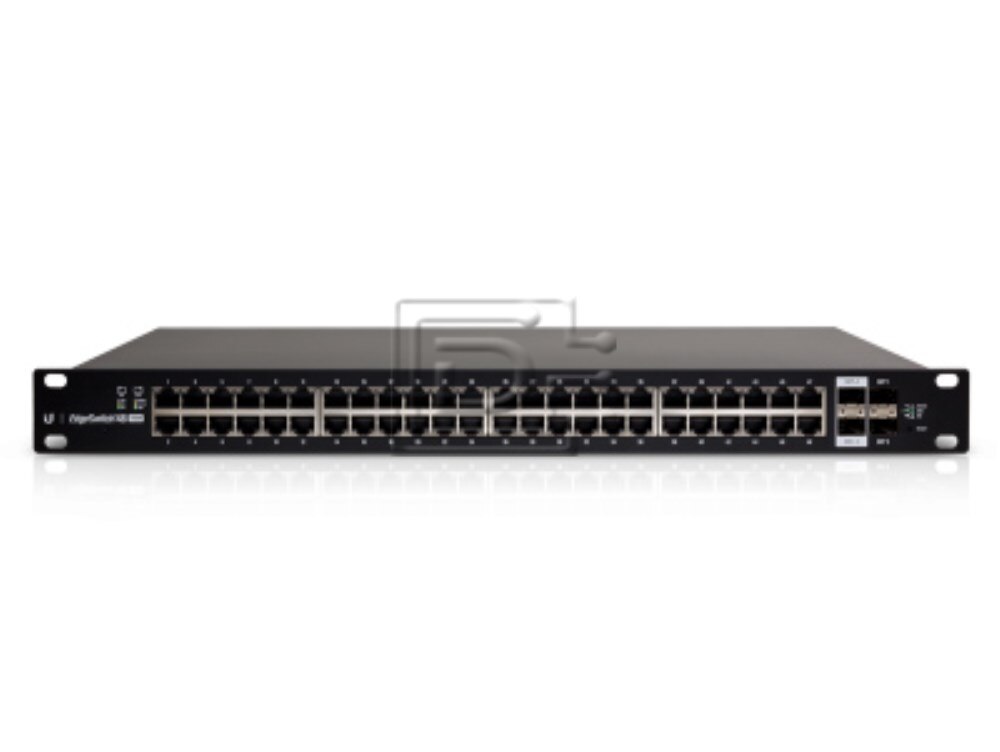

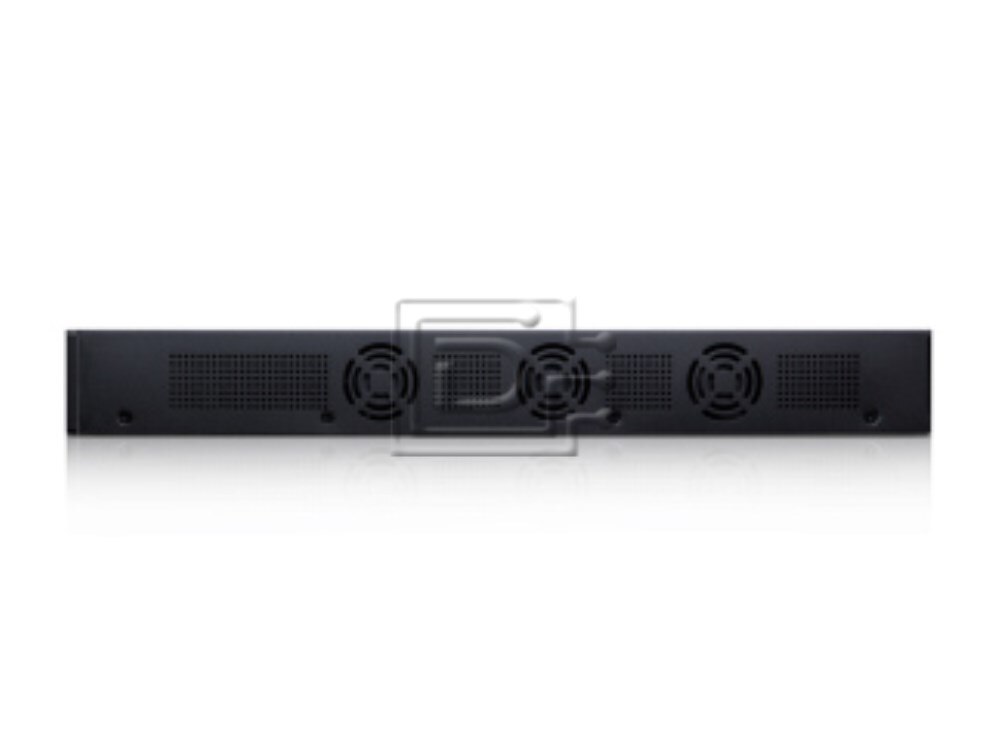

Ubiquiti Networks ES-48-750W EdgeSwitch 48-Port 750W Managed Switches w/ SFP - Brand New

Ubiquiti Networks ES-48-750W EdgeSwitch 48-Port 750W Managed Switches with SFP - Brand New

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non-blocking throughput, the 24-port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.

PoE+ Flexibility
The EdgeSwitch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.

By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.

For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry -standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:

  • MSTP/RSTP/STP
  • VLAN, Private VLAN, Voice VLAN
  • Link Aggregation
  • DHCP Snooping, IGMP Snooping
  • TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
  • DiffServ, CoS
  • Static Routing, Policy-Based Routing

EdgeSwitch 48 (750W Model)
Model: ES-48-750W

  • (48) Gigabit RJ45 Ports
  • (2) SFP+ Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 70 Gbps
  • Switching Capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Maximum Power Consumption: 750W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable

HARDWARE SPECIFICATIONS
ModelES-48-750W,
Dimensions485 X 43.7 X 374.6 mm
(19.09 X 1.72 X 14.75 in)
Weight6.5 kg
(14.3 lb)
Total Non-Blocking Throughput70 Gbps
Switching Capacity140 Gbps
Forwarding Rate104.16 Mpps
Max Power Consumption750 W
Power Method100 - 240 VAC/50 - 60 Hz
Universal Input
Power SupplyAC/DC
Internal
750 W DC
LEDs Per Port
Serial Console Port
RJ45 Data Ports
SFP Data Ports

N/A
PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface(1) RJ45 Serial Port
Ethernet In/Out Band
CertificationsCE
FCC
IC
RackmountYes
1U High
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Operating Temperature-5 to 40°C
(23 to 104°F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETDI300-019-1.4 Standard
PoE PER PORT
PoE InterfacesPOE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max PoE+ Wattage per Ports by PSE34.2W
Voltage Range 802.3at Mode50-57V
Max Passive PoE Wattage per Port17W
24V Passive PoE Voltage Range20-27V

Click here to view the manufacturer's item description/brochure

Weight: 15.5 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
