Ubiquiti Networks M2 Wiress Access Point

Ubiquiti Networks Part #/MPN: ROCKETM2

DiscTech Item #: UBI-ROCKETM2-BN-1Y


$95.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$95.00

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 128MB

Wattage/VA: 6.5W

Voltage: 24V

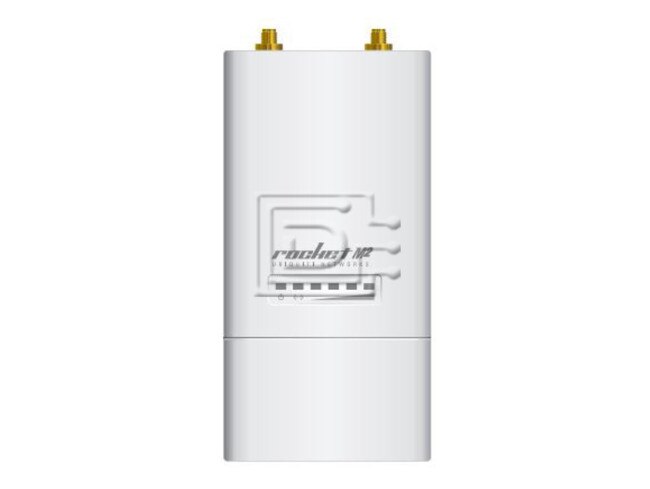

Ubiquiti Networks Rocket M2 2.4GHz Wireless Access Point - Brand New

Ubiquiti Networks Rocket M2 2.4GHz Wireless Access Point - Brand New

Overview
Featuring mix-and-match industrial design, the Rocket™ is a Ubiquiti Networks® airMAX® BaseStation that supports speeds of up to 150+ Mbps real TCP/IP throughput. It is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications.

Flexibility
The Rocket is available in several frequency models: 900 MHz, 2.4 GHz, 3/3.65 GHz, and 5 GHz, to support your specific application. You have the freedom to locate, deploy, and operate the Rocket in these unlicensed bands (subject to local country regulations).

The Rocket allows for a high degree of flexibility in configuring channel bandwidths: 2, 3, 5, 8, 10, 20, 25, 30, and/or 40 MHz, depending on the specific product model and local country regulations.

Plug and Play Integration
Rocket radios and airMAX antennas have been designed to seamlessly work together. Every airMAX Sector, RocketDish™, Omni, or Yagi antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; then you have the optimal combination of Rocket radio and airMAX antenna for your PtP or PtMP application.

airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS Priority is given to voice/video for seamless streaming.

Scalability High Capacity and scalability.

Long Distance Capable of high-speed, carrier-class links.

2.4 GHz Models
The 2.4 GHz frequency band is free to use, worldwide; however, it is extremely crowded due to interference from other wireless devices. Also, there are only three non-overlapping, 20 MHz channels available for use.

M2
The Rocket enclosure is built to survive harsh environments and fits the Rocket mount built into every airMAX antenna. Pair the Rocket with the appropriate antenna for your PtP link or PtMP network.

PHYSICAL/ELECTRICAL INFORMATION
Model NumberROCKETM2
Dimensions160 x 80 x 30 mm
(6.30 x 3.15 x 1.18 inch)
Weight500 g
(1.1 lb)
Enclosure CharacteristicsOutdoor UV Stabilized Plastic
ProcessorMIPS 24Kc
Memory128 MB SDRAM
8 MB Flash
Networking Interface(1) 10/100 Mbps
RF Connections(2) RP-SMA (Waterproof)
LEDsPower
Ethernet
(4) Signal Strength
Max Power Consumption6.5 W
Power Supply24V
1A PoE Adapter
Power MethodPassive PoE
(Pairs 4, 5+; 7, 8 Return)
ESD/EMP Protection+/-24KV Air / Contact
Operating Temperature-30 to 75°C
(-22 to 167° F)
Operating Humidity5 to 95% Non-Condensing
Shock and VibrationETS1300-019-1.4
MS SOFTWARE INFORMATION
ModesAccess Point
Station
ServicesWeb Server
SNMP
SSH Server
Telnet
Ping Watchdog
DHCP
NAT
Bridging
Routing
UtilitiesAntenna Alignment Tool
Discovery Utility
Site Survey
Ping
Traceroute
Speed Test
Distance AdjustmentDynamic Ack and Ackless Mode
Power AdjustmentSoftware Adjustable UI or CLI
SecurityWPA2 AES Only
QoSSupports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Statistical ReportingUp Time
Packet Errors
Data Rates
Wireless Distance
Ethernet Link Rate
OtherRemote Reset Support
Software Enabled/Disabled
VLAN Support
64QAM
5/8/10/20/30/40 MHz Channel Width Support
Ubiquiti Specific FeaturesairMAX Mode
Traffic Shaping with Burst Support
Discovery Protocol
Frequency Band Offset
Ackless Mode
M5 COMPLIANCE
Wireless ApprovalsFCC
IC
CE
RoHS ComplianceYes
M5 OPERATING FREQUENCY
Operating Frequency2402 - 2462 MHz
Output Power28 dBm
