Ubiquiti Networks Part #/MPN: NB-5G22
DiscTech Item #: UBI-NB-5G22-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 32MB
Bays/Ports/Slots: 1
Wattage/VA: 5.5W
Voltage: 24V

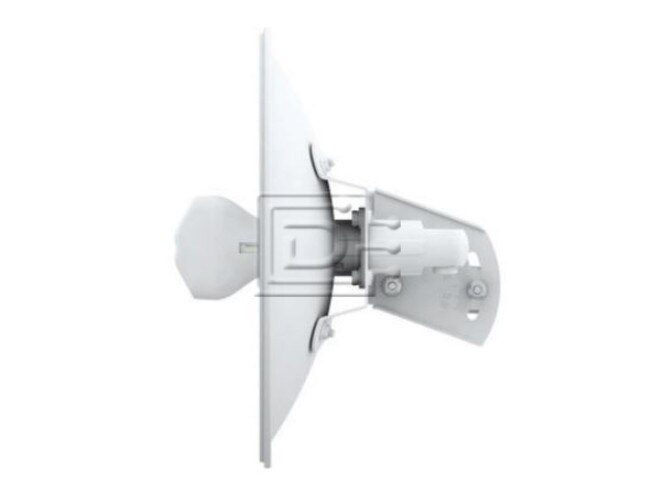

Ubiquiti Networks NB-5G22 NanoBridge M5 5GHz High Performance Long Range Antenna - Brand New
Ubiquiti Networks NB-5G22 NanoBridge M5 5GHz High Performance Long Range Antenna - Brand New
Overview
With the NanoBridge®, Ubiquiti Networks™ pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment).
The NanoBridge combines Ubiquiti's InnerFeed™ and airMAX technologies to create a simple, yet powerful wireless unit capable of up to 100+ Mbps real outdoor throughput and up to 30+ km range.
InnerFeed Technology
Ubiquiti’s revolutionary InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable*. This improves performance because it eliminates cable losses.
Providing high performance and robust all-in-one mechanical design at a low cost, the NanoBridge is extremely versatile and cost-effective to deploy.
airMAX™ Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
- Intelligent Qos Priority is given to voice/video for seamless streaming.
- Scalability High capacity and scalability.
- Long Distance Capable of high-speed, carrier-class links.
| SYSTEM INFORMATION | |
|---|---|
| Model Number | NB-5G22 |
| Processor Specs | Atheros MIPS 24KC 400 MHz |
| Memory | 32 MB SDRAM 8 MB Flash |
| Networking Interface | 1 x 10/100 Ethernet Port |
| REGULATORY/COMPLIANCE INFORMATION | |
| Wireless Approvals | FCC IC CE |
| RoHS Compliance | Yes |
| PHYSICAL/ELECTRICAL/ENVIRONMENTAL | |
| Dimensions (mm) | 326 diameter |
| Weight Dish and Mount Included) | 1.904 kg |
| Power Supply | 24V 0.5A PoE |
| Power Method | Passive Poe (Pairs 4, 5+; 7, 8 Return) |
| Max Power Consumption | 5.5 W |
| Gain | 22 dBi |
| LEDs | (1) Power (1) LAN (4) WLAN |
| Wind Loading | 45 Ibf @ 125 mph |
| Wind Survivability | 125 mph |
| LEDs | (1) Power (1) LAN (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mounting Kit Included |
| Operating Temperature | -30 to 75° C |
| Operating Humidity | 5 to 95% Non-Condensing |
| Shock & Vibration | ETS1300-019-1.4 |
| OPERATING FREQUENCY SUMMARY (MHz) | |
| Worldwide USA | 5170 -5875 5725 - 5850 |
| ANTENNA INFORMATION | |
| Gain | 22 dBi |
| Max VSWR | 1.5:1 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 4.5 lb
