Ubiquiti Networks Part #/MPN: PBE-5AC-620
DiscTech Item #: UBI-PBE-5AC-620-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 128MB
Bays/Ports/Slots: 1
Wattage/VA: 8.5W
Voltage: 24V

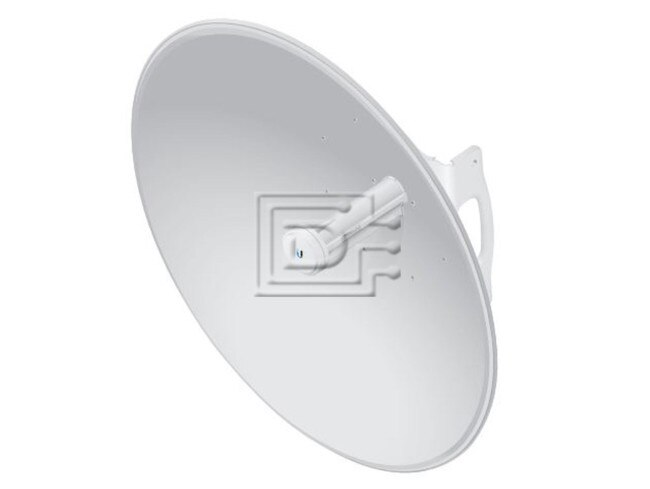

Ubiquiti Networks PBE-5AC-620 PowerBeam ac 5GHz 620mm Dish Reflector Bridge - Brand New
Ubiquiti Networks PBE-5AC-620 PowerBeam ac 5GHz 620mm Dish Reflector Bridge - Brand New
Overview
Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam™ ac.
Improved Noise Immunity
The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
Ubiquiti’s InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.
Innovative Mechanical Design
- Built-in mechanical 10° of downtilt, while the mounting bracket of the PBE-5AC-620 offers ± 15° of tilt.
- Convenient pole-mounting Only a single wrench is needed to mount the PowerBeam ac on a pole.
- Easy removal The antenna feed can be detached with the push of a button.
Industrial-Strength Construction
- Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
- Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance. The pole bracket design prevents paint from being removed from the metal brackets for improved corrosion resistance.
SYSTEM AND REGULATORY/COMPLIANCE | ||
---|---|---|
Model Number | PBE-5AC-620 | |
Frequency | 5 GHz | |
Gain | 29 dBi | |
Dish Reflector | 620 mm | |
Processor Specs | Atheros MIPS 74Kc 720 MHz | |
Memory | 128 MB DDR2 8 MB Flash | |
Networking Interface | (1) 10/100/1000 Ethernet Port | |
Wireless Approvals | FCC IC CE | |
RoHS Compliance | Yes | |
PHYSICAL/ELECTRICAL/ENVIRONMENTAL | ||
Dimensions | 620 x 620 x 386 mm (24.41 x 24.41 x 15.2 in) | |
Weight | 6.4 kg (14.11 lb) | |
Power Supply | 24V 0.5A Gigabit PoE | |
Power Method | Passive PoE (pairs 4,5+; 7,8 return) | |
Supported Voltage Range | 20 - 26 VDC | |
Max Power Consumption | 8.5 W | |
Gain | 29 dBi | |
Operating Frequency Worldwide USA | 5150 - 5875 MHz 5725 - 5850 MHz | |
Wind Loading | 872 N @ 200 km/h (196 Ibf @ 125 mph) | |
Wind Survivability | 200 km/h (125 mph) | |
LEDs | (1) Power (1) LAN) (4) WLAN | |
Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels | |
Channel Sizes PtP Mode RtMP Mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz | |
Polarization | Dual Linear | |
Enclosure | Outdoor UV Stabilized Plastic | |
Mounting | Pole-Mount Kit Included | |
ESD/EMP Protection | Air: +/- 24 kV Contact: +/- 24 kV | |
Operating Temperature | -40 to 70° C (-40 to 158° F) | |
Operating Humidity | 5 to 95% Non-Condensing | |
Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 | |
Vibration Test | IEC 68-2-6 | |
Temperature Shock Test | IEC 68-2-14 | |
UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 | |
Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 | |
ANTENNA INFORMATION | ||
Gain | 29 dBi | |
Max VSWR | 1.6:1 | |
Built-in Mechanical Downtilt | +15° to -15° |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 15 lb
