Ubiquiti Networks PBE-M2-400 PowerBeam Bridge

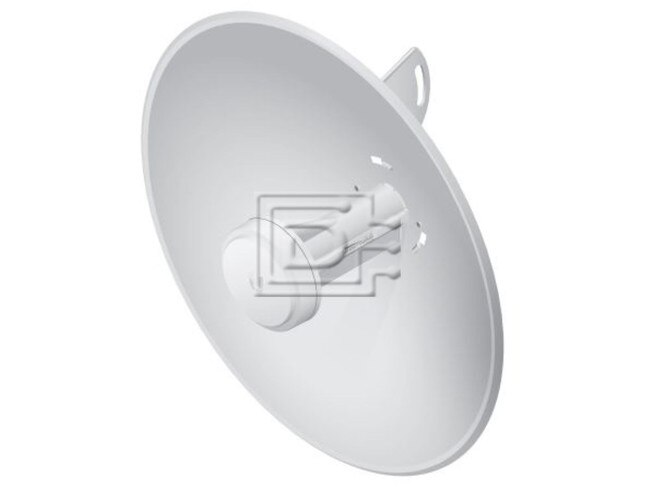

Ubiquiti Networks PBE-M2-400 Wireless Bridge Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year ManufacturerWarranty
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

$99.00

Interface Types:Ethernet RJ45
Electrical Interface:Ethernet Gigabit - 1Gbps
Bays/Ports/Slots:1
RAM:64MB
Voltage:24V

Description

Ubiquiti Networks PBE-M2-400 PowerBeam M2 2.4GHz 400mm Dish Reflector Bridge - Brand New

Ubiquiti Networks PBE-M2-400 PowerBeam M2 2.4GHz 400mm Dish Reflector Bridge - Brand New

Overview
Starting with the first-generation NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam™.

Improved Noise Immunity
The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
Ubiquiti’s InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Providing high performance and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy.

airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS Priority is given to voice/video for seamless streaming.

Scalability High capacity and scalability.

Long Distance Capable of high-speed, carrier-class links.

Specifications

SYSTEM AND REGULATORY/COMPLIANCE
Model NumberPBE-M2-400
Frequency2.4 GHz
Gain18 dBi
Dish Reflector400 mm
Processor SpecsAtheros MIPS 74Kc
560 MHz
Memory64 MB DDR2
8 MB Flash
Networking Interface(1) 10/100 Ethernet Port
Wireless ApprovalsFCC
IC
CE
RoHS ComplianceYes
PHYSICAL/ELECTRICAL/ENVIRONMENTAL
Dimensions420 x 420 x 289 mm
(16.54 x 16.54 x 11.38 in)
Weight1.795 kg (3.96 lb)
Power Supply24V
0.5A Gigabit PoE
Power MethodPassive PoE (pairs 4,5+; 7,8 return)
Max Power Consumption6 W
Gain18 dBi
Operating Frequency2405 - 2475 MHz
Wind Loading342 N @ 200 km/h
(77 Ibf @ 125 mph)
Wind Survivability200 km/h
(125 mph)
LEDs(1) Power
(1) LAN)
(4) WLAN
Signal Strength LEDsSoftware-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes5/8/10/20/30/40 MHz
PolarizationDual Linear
EnclosureOutdoor UV Stabilized Plastic
MountingPole-Mount Kit Included
ESD/EMP ProtectionAir: +/- 24 kV
Contact: +/- 24 kV
Operating Temperature-40 to 70° C
(-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Salt Fog TestIEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration TestIEC 68-2-6
Temperature Shock TestIEC 68-2-14
UV TestIEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain TestETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5
ANTENNA INFORMATION
Gain18 dBi
Max VSWR1.5:1
Built-in Mechanical Downtilt+20° to -10°
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 4 lb

Warranty: 1 Year Manufacturer

Condition

Brand New

Warranty

1 Year Manufacturer Warranty
