Ubiquiti Networks Part #/MPN: PBM10
DiscTech Item #: UBI-PBM10-BN-1Y
Discontinued
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 64MB
Wattage/VA: 8W
Voltage: 24V

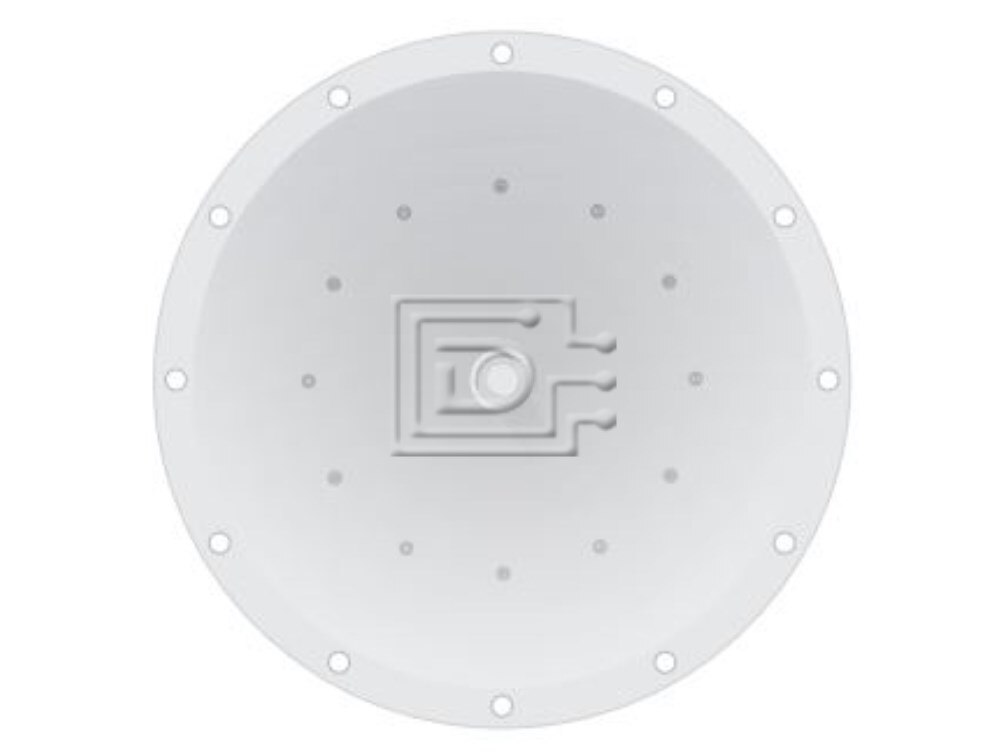

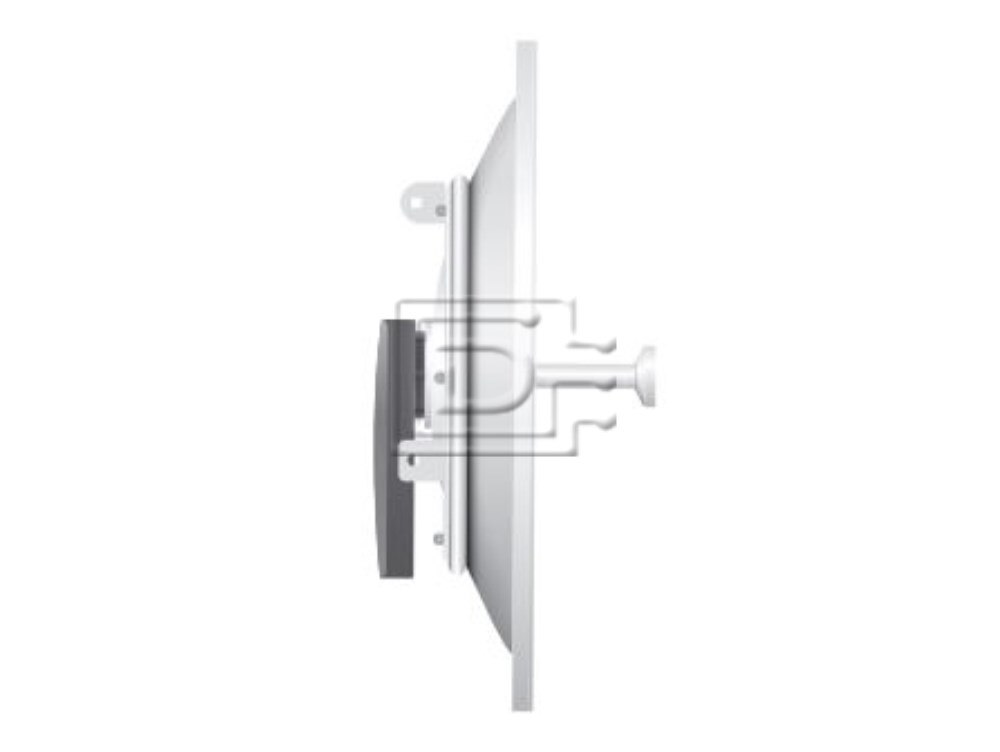

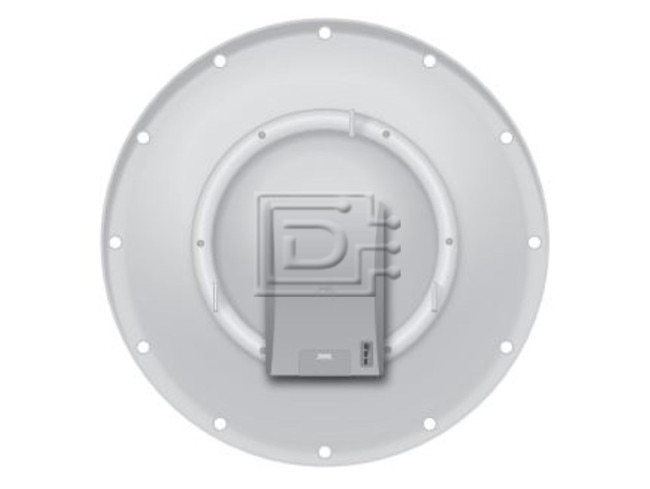

Ubiquiti Networks PBM10 PowerBridge M10 10GHz PtP Bridge w/ Dish Antenna - Brand New
Ubiquiti Networks PBM10 PowerBridge M10 10GHz PtP Bridge w/ Dish Antenna - Brand New
airMAX 2X2 PtP Bridge
PowerBridge M10 is a rugged, hi-power, 2x2 MIMO radio with enhanced receiver performance using the super-high 10 GHz radio frequency. It features incredible range performance (20+km) and breakthrough speed (150+Mbps real TCP/IP). The PowerBridge M10 radio pairs seamlessly with the included Carrier Class PowerBridge M10 dish antenna, to create powerful PtP bridging applications. Below is an example of how the PowerBridge M10 can be deployed.
Integrated airMAX Technology
Unlike the standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video forseamless access.
Scalability High capacity and scalability.
Long Distance Capable of high speed 20km+ links.
Latency Multiple features dramatically reduce noise.
PowerBridge M10 Radio and Dish
- Model: PBM10 (2 ft / 648 mm)
- 10,322 GHz – 10,574 GHz
- 33.0 – 34.4 dBi
| SYSTEM INFORMATION | ||
|---|---|---|
| Model Number | PBM10 | |
| Processor Specs | Atheros MIPS 24Kc 400 MHz | |
| Memory | 64 MB SDRAM 8 MB Flash | |
| Networking Interface | (1) 10/100 Ethernet Port | |
| REGULATORY/COMPLIANCE INFORMATION | ||
| Wireless Approvals | CE | |
| RoHS Compliance | Yes | |
| PHYSICAL/ELECTRICAL/ENVIRONMENTAL | ||
| Enclosure Size | 170 x 250 x 53 mm (without the feed) 170 x 250 x 272 mm (with the feed) | |
| Weight | 1.15 kg (without the feed) 1.2 kg (with the feed) | |
| Enclosure Characteristics | Die Cast Aluminum | |
| Mounting | Pole-Mount Kit Included | |
| Max Power Consumption | 8 W | |
| Power Supply | 24V 1A PoE Supply Included | |
| Power Method | Passive PoE (pairs 4,5+; 7,8 return) | |
| Operating Temperature | -40 to 80° C | |
| Operating Humidity | 5 to 95% Condensing | |
| Shock and Vibration | ||
| ANTENNA CHARACTERISTICS | ||
| Frequency Range | 10,322 GHz - 10,574 GHZ | |
| Gain | 33.0 - 34.4 dBi | |
| HPOL Beamwidth | 3.0 - 3.7 in over band | |
| VPOL Beamwidth | 3.0 - 3.7 in over band | |
| F/B Ratio | 33 dB | |
| Max VSWR | <1.4:1 | |
| Dimensions | 2 ft / 648 mm | |
| Weight | 9.8 kg | |
| Wind Survivability | 120 mph | |
| Wind Loading | 113 lb @ 100 mph | |
| Polarization | Dual Linear | |
| Cross-pol Isolation | 35 dB min | |
| ETSI Specification | EN 302 326 DN2 | |
| Mounting | Universal pole mount PowerBridge M10 bracket | |
