Ubiquiti Networks Part #/MPN: PBM3
DiscTech Item #: UBI-PBM3-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 64MB
Wattage/VA: 8W
Voltage: 24V

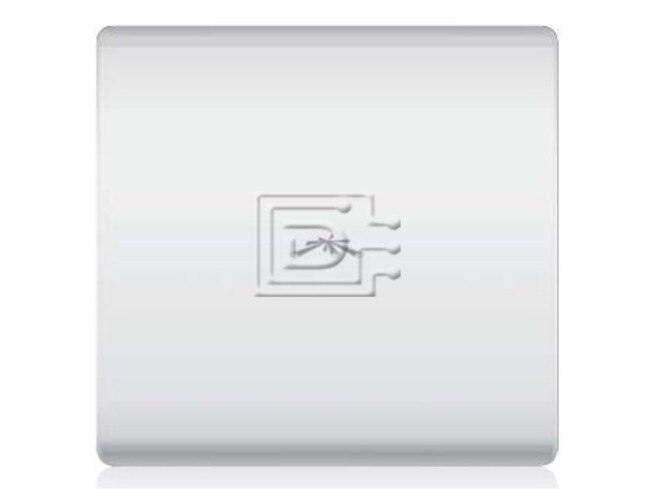

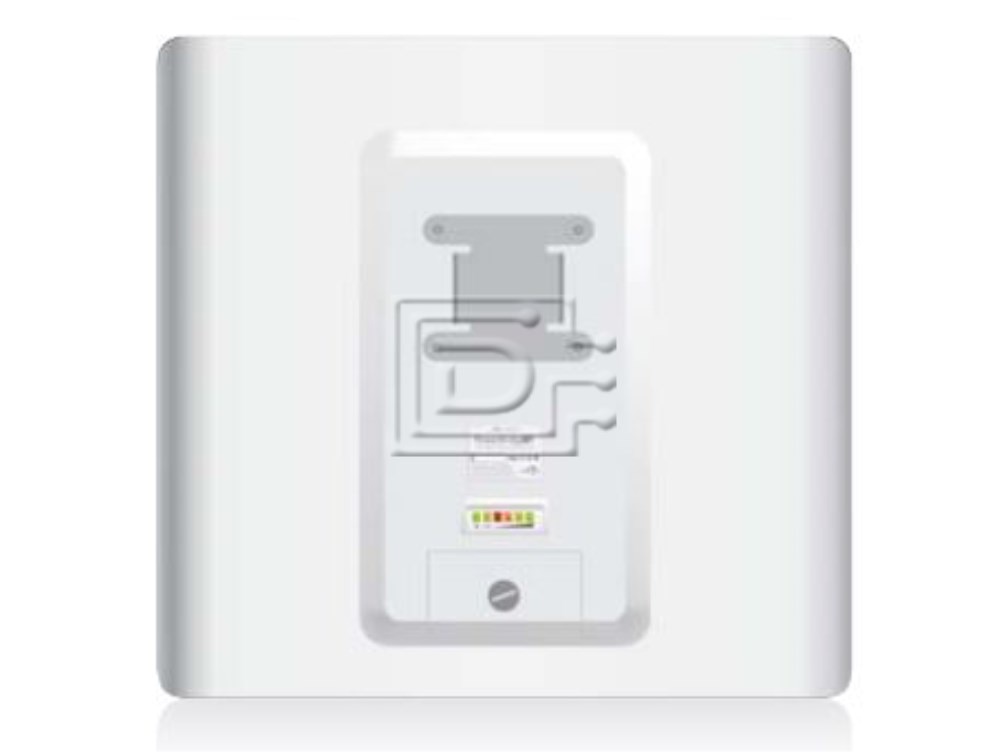

Ubiquiti Networks PBM3 PowerBridge M3 3.5GHz Bridge - Brand New
Ubiquiti Networks PBM3 PowerBridge M3 3.5GHz Bridge - Brand New
PowerBridge M airMAX Bridge
Featuring a panel antenna design and dual-polarity performance, the PowerBridge M is ideal for Point-to-Point (PtP) bridging applicaions that require a compact form factor
Designed to Perform The PowerBridge®is a slim-profile, high-performance panel antenna that provides a wind-loading advantage and improved aesthetics over dish deployment.
Plug and Play Installation The PowerBridge M features an all-in-one design for easy installation.
Advanced Software Technology Ubiquiti’s airMAX technology is proven in millions of depolyments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
SYSTEM INFORMATION | |
---|---|
Model Number | PBM3 |
Processor Specs | Atheros MIPS 24Kc 400 MHz |
Memory | 64 MB SDRAM 8 MB Flash |
Networking Interface | 1 x 10/100 Base-TX (CAT. 5, RJ-45) Ethernet Interface |
REGULATORY/COMPLIANCE INFORMATION | |
Wireless Approvals | FCC Part 90Y |
RoHS Compliance | Yes |
PHYSICAL/ELECTRICAL/ENVIRONMENTAL | |
Enclosure Size | 445 x 416 x 34 mm |
Weight | 3.82 kg |
Enclosure Characteristics | Outdoor UV Stabilized Plastic |
Mounting Kit | Pole-Mount Kit Included |
Max Power Consumption | 8 W |
Power Supply | 24V 1A surge protection integrated PoE adapter included |
Power Method | Passive PoE (pairs 4,5+; 7,8 return) |
Operating Temperature | -30 to +80° C |
Operating Humidity | 5 to 95% Condensing |
Shock and Vibration | ETSI300-019-1.4 |
ANTENNA CHARACTERISTICS | |
Frequency Range | 3.3 - 3.8 GHZ |
Gain | 20 dBi |
Polarization | Dual Linear |
Cross-pol Isolation | 28dB Minimum |
Max VSWR | 1.5:1 |
HPOL Beamwidth | 13.5 deg |
VPOL Beamwidth | 13.5 deg |
Elevation Beamwidth | 13.5 deg |
