Ubiquiti Networks Part #/MPN: PBM5
DiscTech Item #: UBI-PBM5-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 64MB
Wattage/VA: 8W
Voltage: 24V

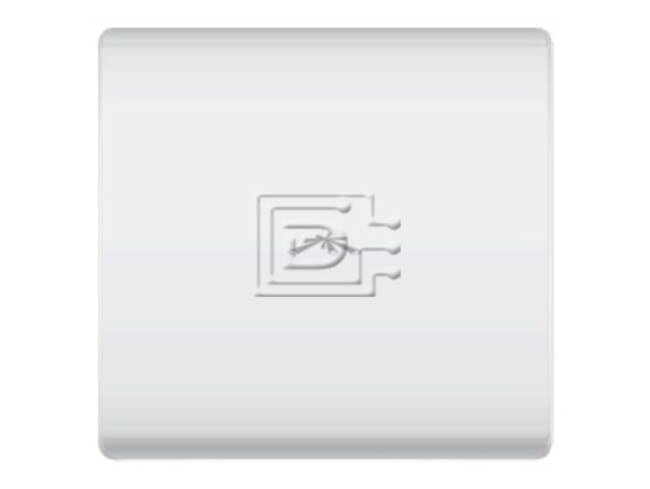

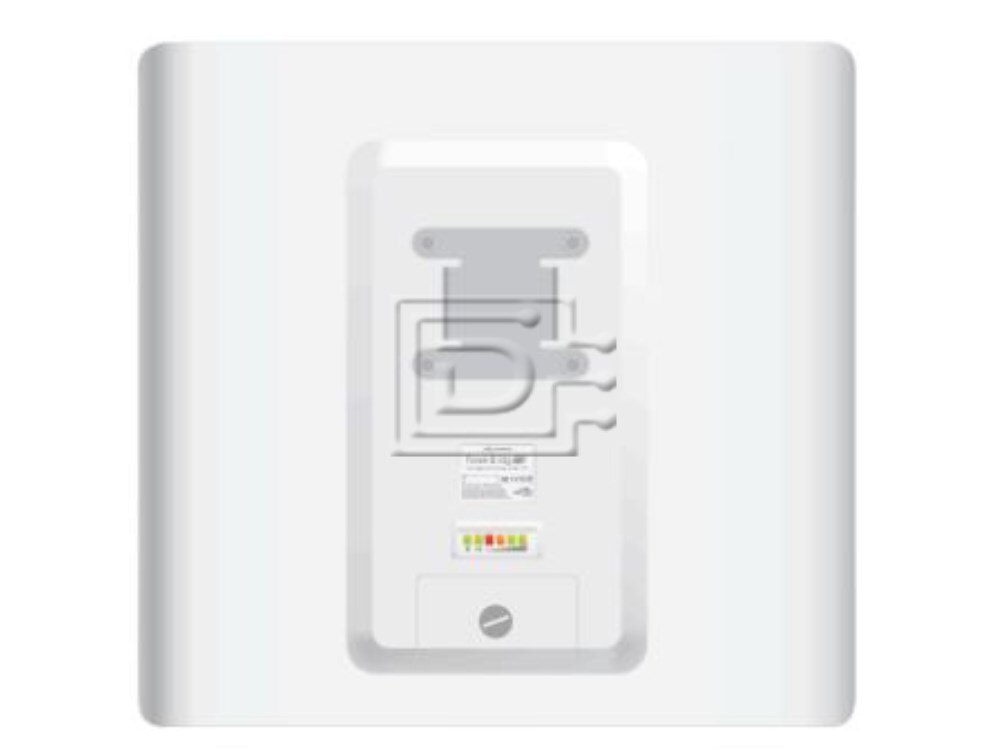

Ubiquiti Networks PBM5 PowerBridge M5 5GHz Bridge - Refurbished
Ubiquiti Networks PBM5 PowerBridge M5 5GHz Bridge
PowerBridge M airMAX Bridge
Featuring a panel antenna design and dual-polarity performance, the PowerBridge M is ideal for Point-to-Point (PtP) bridging applicaions that require a compact form factor
Designed to Perform The PowerBridge®is a slim-profile, high-performance panel antenna that provides a wind-loading advantage and improved aesthetics over dish deployment.
Plug and Play Installation The PowerBridge M features an all-in-one design for easy installation.
Advanced Software Technology Ubiquiti’s airMAX technology is proven in millions of depolyments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
| SYSTEM INFORMATION | |
|---|---|
| Model Number | PBM5 |
| Processor Specs | Atheros MIPS 24Kc 400 MHz |
| Memory | 64 MB SDRAM 8 MB Flash |
| Networking Interface | 1 x 10/100 Base-TX (CAT. 5, RJ-45) Ethernet Interface |
| REGULATORY/COMPLIANCE INFORMATION | |
| Wireless Approvals | FCC Part 15.247 IC RS210 CE |
| RoHS Compliance | Yes |
| PHYSICAL/ELECTRICAL/ENVIRONMENTAL | |
| Enclosure Size | 445 x 416 x 34 mm |
| Weight | 3.82 kg |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Mounting Kit | Pole-Mount Kit Included |
| Max Power Consumption | 8 W |
| Power Supply | 24V 1A surge protection integrated PoE adapter included |
| Power Method | Passive PoE (pairs 4,5+; 7,8 return) |
| Operating Temperature | -30 to +80° C |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ANTENNA CHARACTERISTICS | |
| Frequency Range | 4.9 - 6.0 GHZ |
| Gain | 24.8 - 26.5 dBi |
| Polarization | Dual Linear |
| Cross-pol Isolation | 28dB Minimum |
| Max VSWR | 1.1:1 |
| HPOL Beamwidth | 6 deg |
| VPOL Beamwidth | 6 deg |
| Elevation Beamwidth | 6 deg |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 9 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
