Ubiquiti Networks Part #/MPN: R5AC-PTMP
DiscTech Item #: UBI-R5AC-PTMP-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 128MB
Wattage/VA: 8.5W
Voltage: 24V

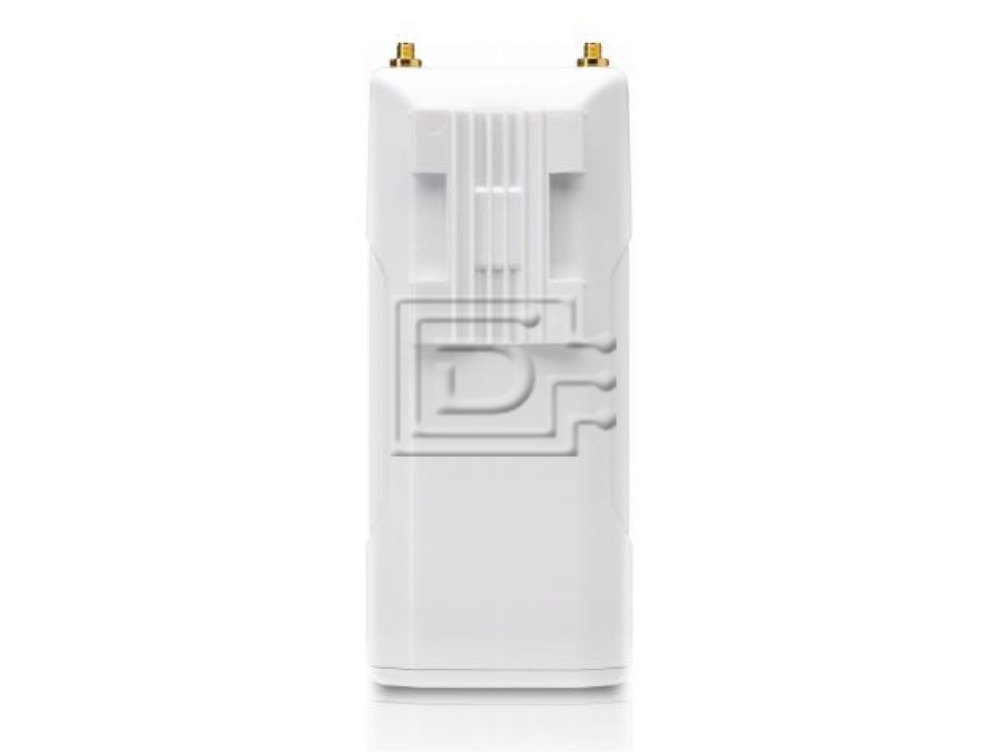

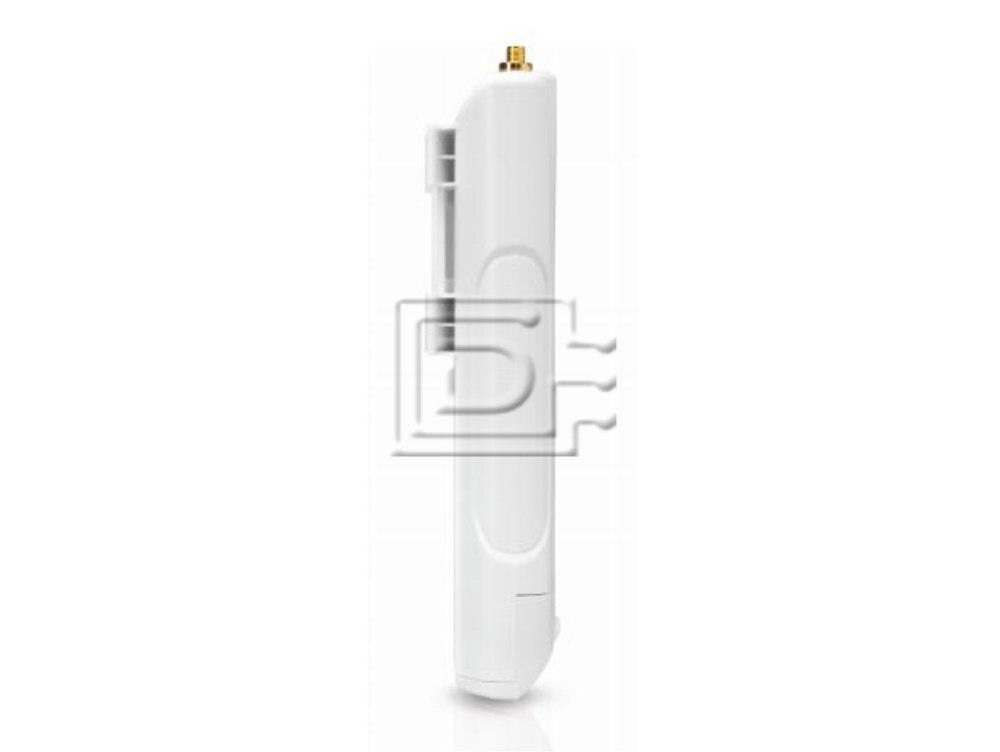

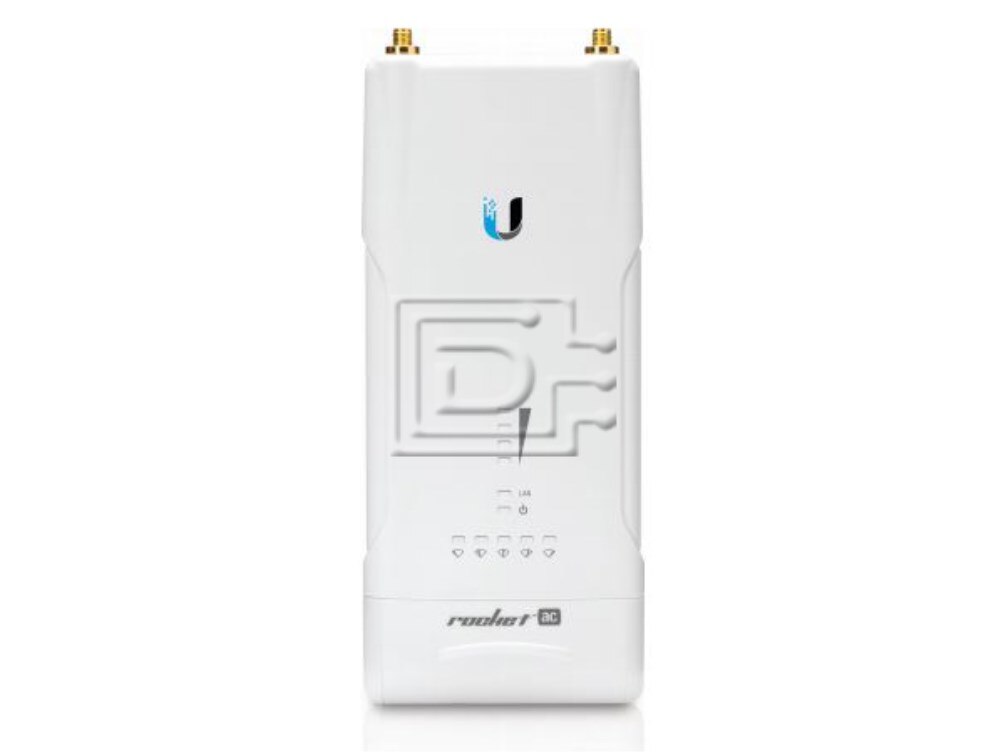

Ubiquiti Networks R5AC-PTMP Rocket ac PtMP Mid-Band 5GHz Wireless Access Point - Brand New
Ubiquiti Networks R5AC-PTMP Rocket ac Point to Multi Point Mid-Band 5GHz Wireless Access Point - Brand New
Overview
Ubiquiti Networks has designed the first airMAX® ac radios with high performance and ease of installation in mind. You have the freedom to deploy the Rocket™ ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
The Rocket ac is available as three models: the Rocket5ac Lite, Rocket5ac PtP, and Rocket5ac PtMP. All three include airMAX ac technology. The Rocket5ac PtP and Rocket5ac PtMP also feature airPrism™ technology to further enhance performance.
Pair the Rocket ac with airMAX ac antennas for optimal performance:
- PtMP links Rocket5ac PtMP or Rocket5ac Lite* with the airMAX ac Sector
Features
5 GHz Frequency Band This unlicensed band of plentiful spectrum works well for long-distance links.
Gigabit Ethernet Deliver high throughput over its wired connection.
Rocket5ac PtMP
Also featuring airPrism technology, the Rocket5ac PtMP is ideal for PtMP links to airMAX ac CPEs located in crowded RF environments.
SYSTEM INFORMATION | ||
---|---|---|
Model Number | R5AC-PTMP | |
Frequency | Mid-Band 5 GHz | |
airMAX ac Technology | Yes | |
airPrisim Technology | Yes | |
Point-to-Point | No | |
Point-to-MultiPoint Functionality | Yes | |
Gigabit Ethernet | Yes | |
Ubiquiti PoE | Yes | |
Output Power | 27 dBm | |
PHYSICAL/ELECTRICAL/ENVIRONMENTAL INFORMATION | ||
Dimensions | 198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74 in) | |
Weight | 295 g (10.41 oz) | |
Enclosure Characteristics | Outdoor UV Stabilized Plastic | |
Processor | Atheros MIPS 74Kc, 720 MHz | |
Memory | 128 MB DDR2 SDRAM 16 MB NOR FLASH | |
Networking Interface | (1) 10/100/1000 Mbps | |
RF Connections | (2) RP-SMA (Waterproof) | |
LEDs | Power, LAN, (4) Signal Strength | |
Max Power Consumption | 8.5 W | |
Power Supply | 24V 0.5A Gigabit PoE Adapter | |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) | |
Supported Voltage Range | 20 - 26 VDC | |
ESD/EMP Protection | +/- 24KV Air / Contact | |
Operating Temperature | -40° to 80°C (-40° to 176° F) | |
Operating Humidity | 5 to 95% Non-condensing | |
Shock and Vibration | ETS1300-019-1.4 | |
SOFTWARE INFORMATION | ||
Modes | Access Point Station PtMP Only | |
Services | Web Server SNMP SSH Server Telnet Ping Watchdog DHCP NAT Bridging Routing | |
Utilities | Antenna Alignment Tool Discovery Utility Site Survey Ping Traceroute Speed Test | |
Distance Adjustment | Dynamic Ack and Ackless Mode | |
Power Adjustment | Software Adjustable UI or CLI | |
Security | WPA2 AES Only | |
QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low | |
Statistical Reporting | Up Time Packet Errors Data Rates Wireless Distance Ethernet Link Rate | |
Channel Size (PtMP Mode) | 10/20/30/40 MHz | |
Other | Remote Reset Support Software Enabled/Disabled VLAN Support 256QAM | |
Ubiquiti Specific Features | 30/50/60 MHz Channels airMAX ac Mode Traffic Shaping with Burst Support Discovery Protocol Frequency Band Offset Ackless Mode | |
COMPLIANCE | ||
Wireless Approvals | FCC IC CE | |
RoHS Compliance | Yes | |
OPERATING FREQUENCY | ||
Operating Frequency Worldwide USA | 5470 - 5875 MHz 5725 - 5850 MHz | |
Output Power | 27 dBm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
