Ubiquiti Networks Part #/MPN: RM2-TI
DiscTech Item #: UBI-RM2-TI-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 128MB
Wattage/VA: 6.5W
Voltage: 48V

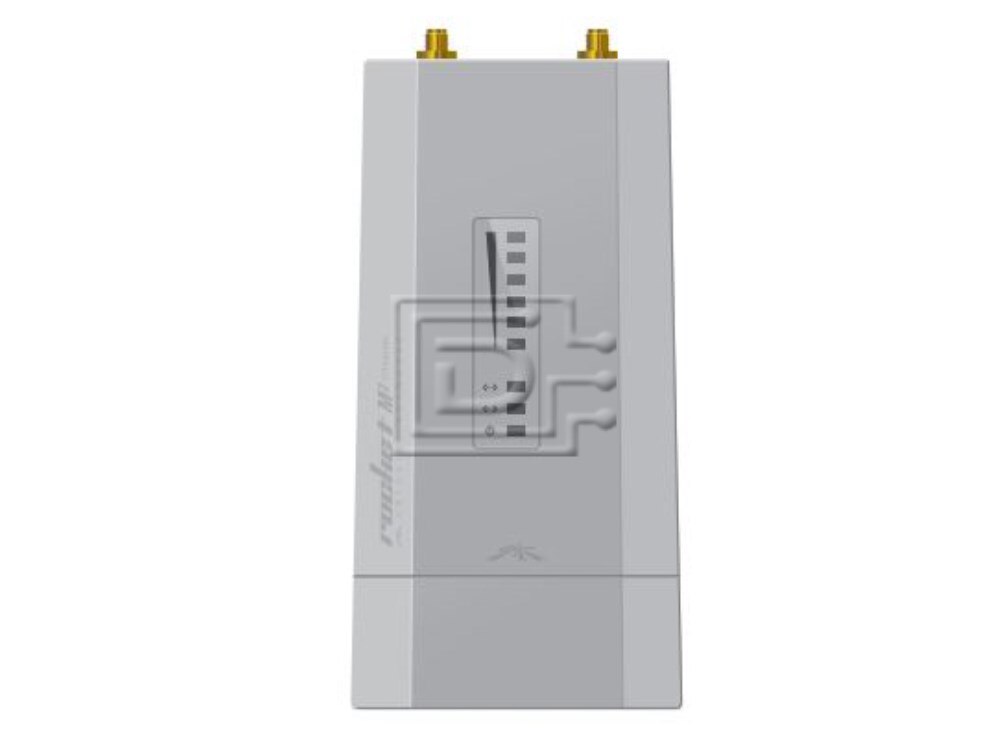

Ubiquiti Networks RM2-TI Rocket 2.4GHz Wireless Access Point - Brand New
Ubiquiti Networks RM2-TI Rocket 2.4GHz Wireless Access Point - Brand New
Overview
Featuring mix-and-match industrial design, the Rocket™ is a Ubiquiti Networks® airMAX® BaseStation that supports speeds of up to 150+ Mbps real TCP/IP throughput. It is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications.
Flexibility
The Rocket is available in several frequency models: 900 MHz, 2.4 GHz, 3/3.65 GHz, and 5 GHz, to support your specific application. You have the freedom to locate, deploy, and operate the Rocket in these unlicensed bands (subject to local country regulations).
The Rocket allows for a high degree of flexibility in configuring channel bandwidths: 2, 3, 5, 8, 10, 20, 25, 30, and/or 40 MHz, depending on the specific product model and local country regulations.
Plug and Play Integration
Rocket radios and airMAX antennas have been designed to seamlessly work together. Every airMAX Sector, RocketDish™, Omni, or Yagi antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; then you have the optimal combination of Rocket radio and airMAX antenna for your PtP or PtMP application.
airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High Capacity and scalability.
Long Distance Capable of high-speed, carrier-class links.
2.4 GHz Models
The 2.4 GHz frequency band is free to use, worldwide; however, it is extremely crowded due to interference from other wireless devices. Also, there are only three non-overlapping, 20 MHz channels available for use.
RM2-Ti
Its Gigabit Ethernet connection delivers high throughput, and its aircraft-grade aluminum casing improves performance in harsh RF environments and extreme weather conditions.
PHYSICAL/ELECTRICAL INFORMATION | |
---|---|
Model Number | RM2-TI |
Dimensions | 160 x 80 x 44 mm (6.30 x 3.15 x 1.73 inch) |
Weight | 350 g (12.35 oz) |
Enclosure Characteristics | Die-Cast Aluminum |
Processor | MIPS 74Kc |
Memory | 128 MB SDRAM 8 MB Flash |
Networking Interface | (1) 10/100/1000 Mbps (1) 10/100 Mbps |
RF Connections | (2) RP-SMA (Waterproof) |
LEDs | Power (2) Ethernet (6) Signal Strength GPS |
Max Power Consumption | 6.5W |
Power Supply | 48V 0.5A PoE Adapter |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) 802.3af Compliant |
ESD/EMP Protection | +/-30KV Air / Contact |
Operating Temperature | -30 to 75°C (-22 to 167° F) |
Operating Humidity | 5 to 95% Non-Condensing |
Shock and Vibration | ETS1300-019-1.4 |
MS SOFTWARE INFORMATION | |
Modes | Access Point Station |
Services | Web Server SNMP SSH Server Telnet Ping Watchdog DHCP NAT Bridging Routing |
Utilities | Antenna Alignment Tool Discovery Utility Site Survey Ping Traceroute Speed Test |
Distance Adjustment | Dynamic Ack and Ackless Mode |
Power Adjustment | Software Adjustable UI or CLI |
Security | WPA2 AES Only |
QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
Statistical Reporting | Up Time Packet Errors Data Rates Wireless Distance Ethernet Link Rate |
Other | Remote Reset Support Software Enabled/Disabled VLAN Support 64QAM 5/8/10/20/30/40 MHz Channel Width Support |
Ubiquiti Specific Features | airMAX Mode Traffic Shaping with Burst Support Discovery Protocol Frequency Band Offset Ackless Mode |
M5 COMPLIANCE | |
Wireless Approvals | FCC IC CE |
RoHS Compliance | Yes |
M5 OPERATING FREQUENCY | |
Operating Frequency | 2402 - 2462 MHz |
Output Power | 28 dBm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
