Ubiquiti Networks UAP-AC-HD WiFi System

Ubiquiti Networks Part #/MPN: UAP-AC-HD

DiscTech Item #: UBI-UAP-AC-HD-BN-OE

  • Special Order - Ships in 3-5 business days
    Special Order - Ships in 3-5 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 2

Wattage/VA: 17W

Voltage: 44V

Ubiquiti Networks UAP-AC-HD 802.11 b/g/n/ac wave 2 Enterprise AES UniFi AP WiFi System - Brand New

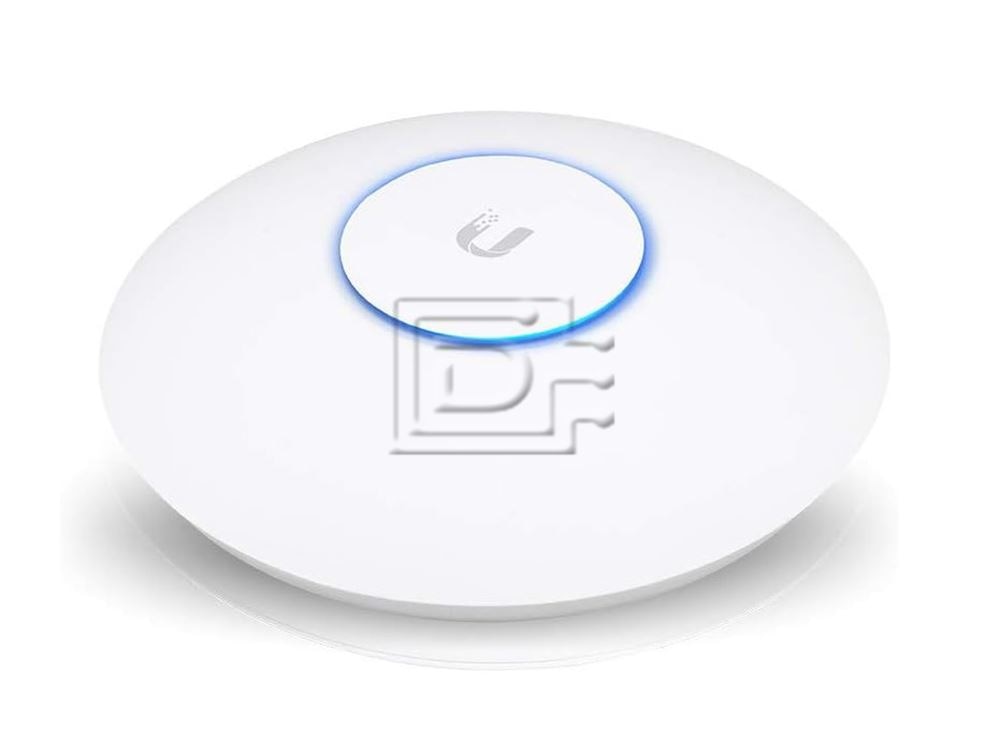

Ubiquiti UniFi AP AC HD 4x4 MU-MIMO WAVE 2 Access Point. UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.

Build wireless networks as big or small as needed. Start with one (or upgrade to a five-pack) and expand to thousands while maintaining a single unified management system.

Initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time. 802.11ac Wave 2 MU MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi AC HD AP, to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience. Assuming the same conditions, a Wave 2 AP provides up to 75% improvement* overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.


  • Perfect for high density WiFi deployments including conference venues, tradeshows and events
  • Dual Band 802.11ac 4x4 MU-MIMO WAVE 2
  • Free Software and Firmware upgrades – No annual license fees!
  • The Ubiquiti UniFi (UAP) wireless range is the perfect WiFi solution for Schools and support Bring Your own Device (BYOD). Software Controller available for Windows/Mac/Linux or in the Cloud!
  • Easy Configuration and Management through any Web Browser
  • Guest Portal / Hotspot Support
  • Remote Firmware Upgrade
  • Google Maps Integration
  • Events and Alerts with Detailed analytics
  • One UniFied Network, L3 Manageability, Multi-site management
  • WLAN Groups


The UniFi AP‑AC is compatible with an 802.3at PoE+ compliant switch.

Model NameUAP-AC-HD
Dimensions220 x 220 x 48.1 mm
8.66 x 8.66 x 1.89”

With Mounting Kits
700 g/1.54 lb

830 g/1.83 lbs
Wi-Fi BandsIEEE 802.11 b/g/n/ac wave 2
Radios2 (2.4GHz + 5GHz)
Antenna4x4 MU-MIMO
Maximum Throughput800 Mbps 2.4GHz
1733 Mbps 5GHz
Ethernet Ports2x Gigabit Ethernet
Link Aggregation
Additional PortsUSB (for PA Systems)
WPA-Enterprise(WPA/WPA2, TKIP/AES)
POE Mode802.3at PoE+
Additional FeaturesWireless Uplink
Guest WiFi

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
