Ubiquiti Networks UAP-LR Wifi System

Ubiquiti Networks Part #/MPN: UAP-FR

DiscTech Item #: UBI-UAP-LR-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 1

Wattage/VA: 6W

Voltage: 24V

Ubiquiti Networks UAP-LR 802.11 b/g/n Enterprise AES Long Range UniFi AP WiFi System - Brand New

Ubiquiti Networks UAP-LR 802.11 b/g/n Enterprise Advanced Encryption Standard Long Range UniFi AP WiFi System - Brand New

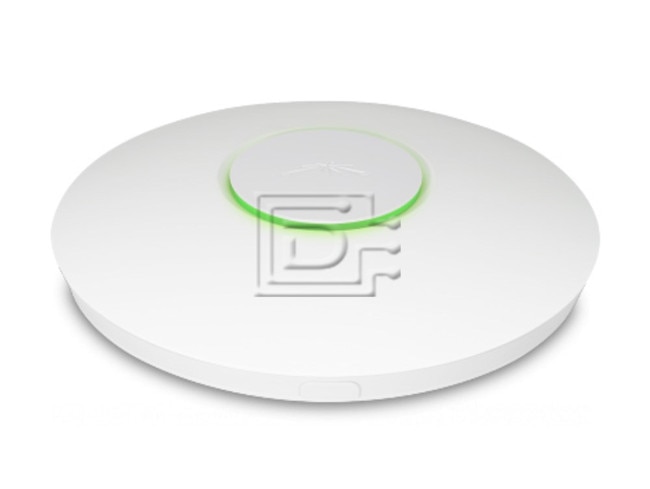

UniFi AP-Long Range (UAP-LR)
The UAP-LR has a longer range than the base model UAP with a range of up to 183 m (600 ft). It also offers 802.11n MIMO, with speeds of up to 300 Mbps.

Memory NameUAP-LR
2.4 GHz Speed300 Mbps
5 GHz Speed --
Range183 m (600 ft)
Secondary Ethernet Port --
Gigabit Ethernet --
Wi-Fi Standards802.11 b/g/n
2.4 GHzYes
5 GHz --
Simultaneous Dual-Band --
Ubiquiti POEYes
802.3 af or 802.3 at Compliant --
Security LockYes
UniFi AP Long Range
Dimensions200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 in)
Weight290 g (10.23 oz) without Mounting Kits
430 g (15.17 oz) with Mounting Kits
Networking Interface(1) 10/100 Ethernet Ports
Integrated 3 dBi Omni (Supports 2 x 2 MIMO with Spatial Diversity)
Wi-Fi Standards802.11 /b/g/n/
Power MethodPassive Power over Ethernet (12-24V
Power Supply24V, 0.5A PoE Gigabit Adapter (Included)
Maximum Power Consumption6 W
Maximum TX Power27 dBm
BSSIDUp to Four Per Radio
Power SaveSupported
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
CertificationsCE, FCC, IC
MountingWall/Ceiling (Kits Included)
Operating Temperature-10 to 70° C (14 to 158° F)
Operating Humidity5 - 80% Non-Condensing
Advanced Traffic Management
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients100+
Supported Data Rates (Mbps)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
