Ubiquiti Networks Part #/MPN: UAP-OUTDOOR-PLUS
DiscTech Item #: UBI-UAP-OUTDOOR-PLUS-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Bays/Ports/Slots: 2
Wattage/VA: 8W
Voltage: 48V
Ubiquiti Networks UAP-OUTDOOR-PLUS / UAP-Outdoor+ 802.11 b/g/n Enterprise AES Outdoor UniFI AP WiFi System - Brand New
Ubiquiti Networks UAP-OUTDOOR-PLUS / UAP-Outdoor+ 802.11 b/g/n Enterprise Advanced Encryption Standard Outdoor UniFI AP WiFi System - Brand New
UniFi AP-Outdoor+ (UAP-Outdoor+)

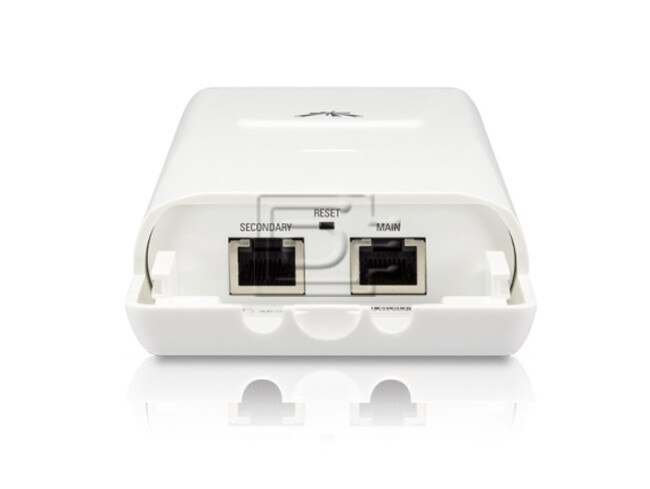

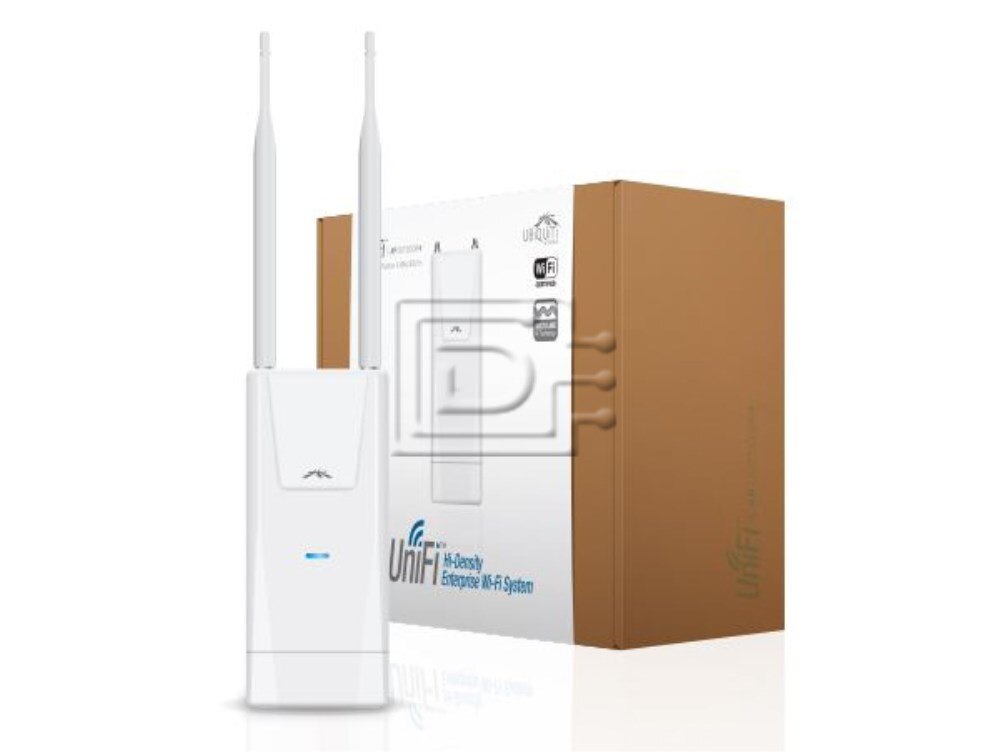

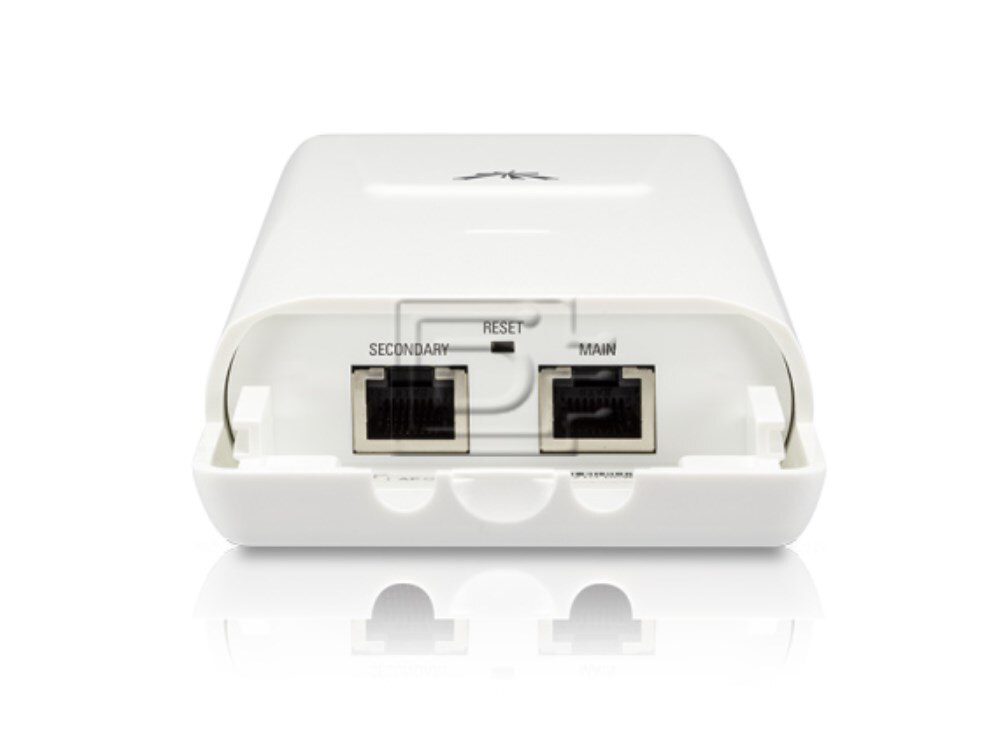

Designed for noisy, high-density environments, the UAP-Outdoor+ utilizes our innovative Multi-Lane RF technology to provide superior capacity and throughput. The UAP-Outdoor+ includes two external antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft).
Compatibility:
The UniFi UAP-Outdoor+ is compatible with an 802.3af compliant switch
| SPECIFICATIONS | |
|---|---|
| Model Name | UAP-OUTDOOR-PLUS / UAP-Outdoor+ |
| 2.4 GHz Speed | 300 Mbps |
| 5 GHz Speed | -- |
| Range | 183 m (600 ft) |
| Multi-Lane RF | Yes |
| Secondary Ethernet Port | Yes |
| Gigabit Ethernet | -- |
| Wi-Fi Standards | 802.11 b/g/n |
| 2.4 GHz | Yes |
| 5 GHz | -- |
| Simultaneous Dual-Band | -- |
| Ubiquiti POE | Yes |
| 802.3 af or 802.3 at Compliant | 802.3af (PoE) |
| External Antennas | Yes |
| UniFi AP Outdoor+ | |
| Dimensions | 205 x 83 x 37 mm (8.07 x 3.27 x 1.46 in) |
| Weight | 250 g (8.82 oz) without Mounting Kits 294 g (10.37 oz) with Mounting Kits |
| Networking Interface | (2) 10/100 Ethernet Ports |
| Buttons | Reset |
| Antennas | (2) External 5 dBi Omni Antennas Included 191 mm (Length), 13 mm (Diameter) |
| Wi-Fi Standards | 802.11 /b/g/n/ |
| Power Method | Passive Power over Ethernet (48V) 802.3af Supported |
| Power Supply | 48V, 0.5A PoE Adapter (Included) |
| Maximum Power Consumption | 8 W |
| Maximum TX Power | 28 dBm |
| BSSID | Up to Four Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Operating Humidity | 5 - 95% Non-Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS15, HT 20/40 |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: AP-Outdoor+
Weight: 2 lb
