Ubiquiti Networks Part #/MPN: UAP-OUTDOOR5
DiscTech Item #: UBI-UAP-OUTDOOR5-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Bays/Ports/Slots: 2
Wattage/VA: 6.5W
Voltage: 24V
Ubiquiti Networks UAP-Outdoor5 802.11 a/n Enterprise AES Outdoor UniFI AP WiFi System - Brand New
Ubiquiti Networks UAP-Outdoor5 802.11 a/n Enterprise Advanced Encryption Standard Outdoor UniFI AP WiFi System - Brand New

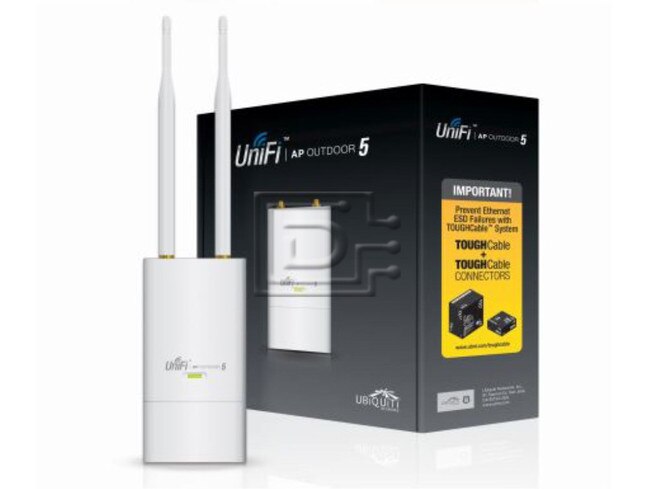

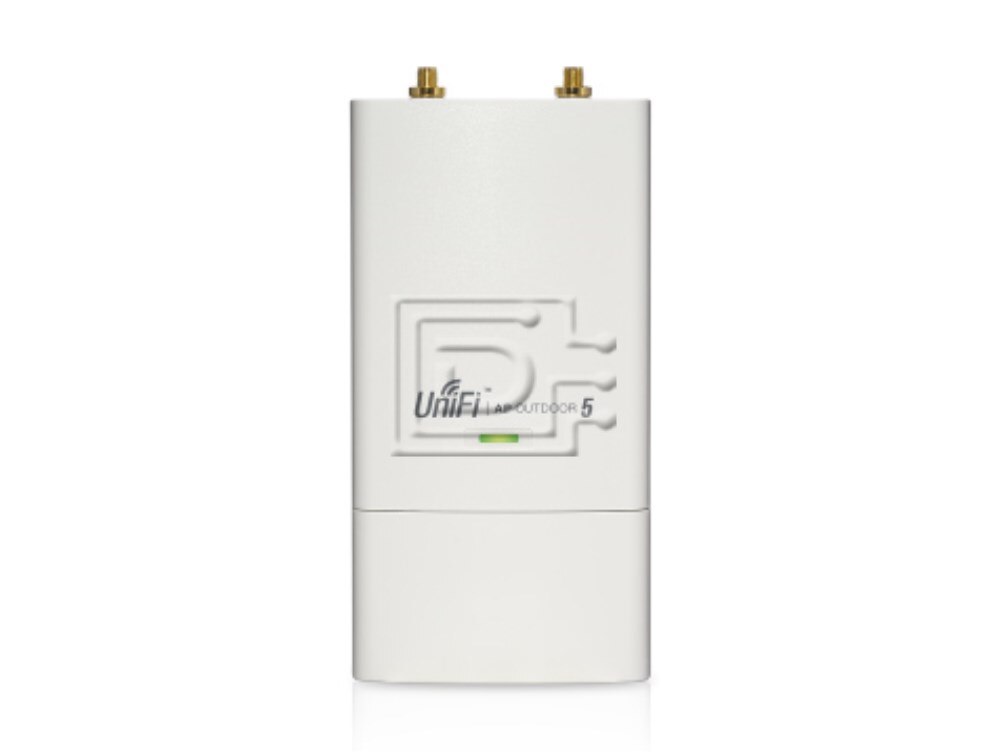

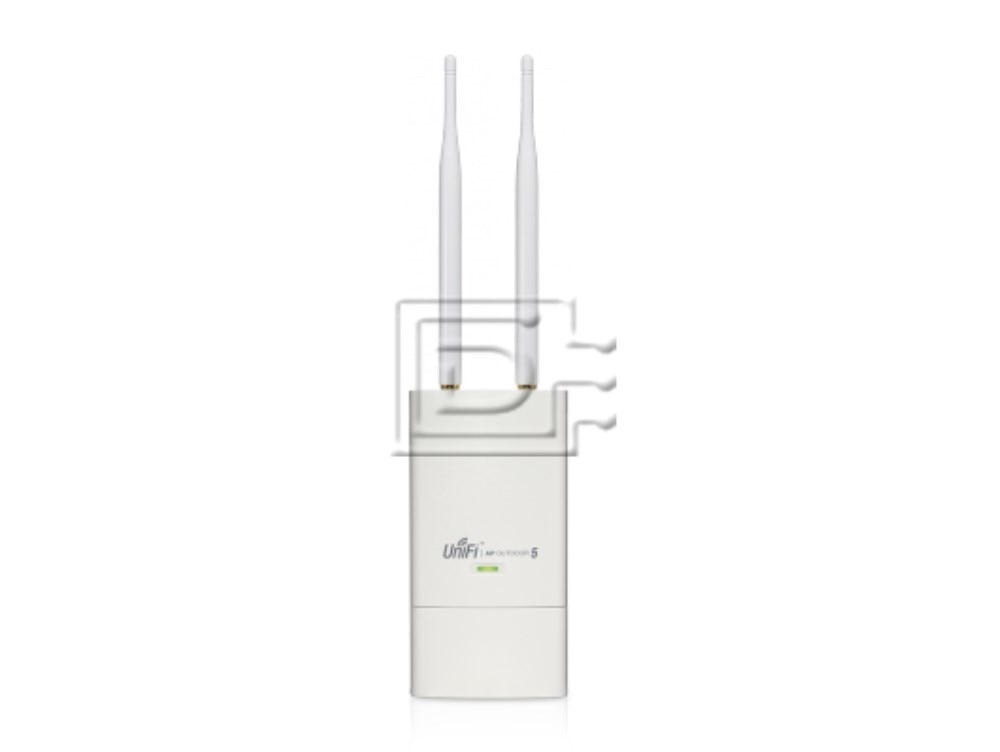

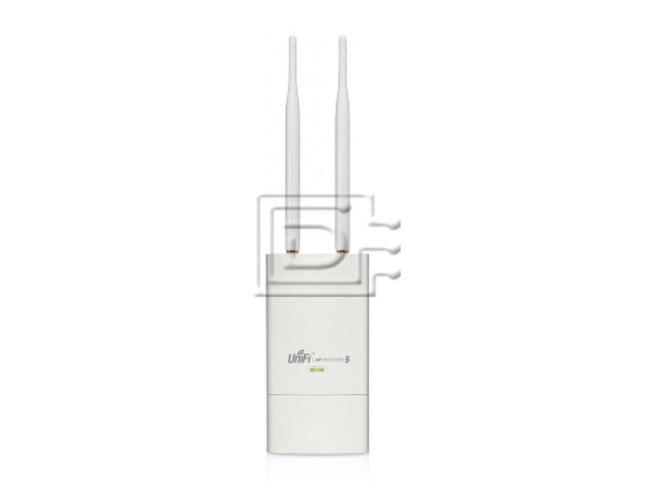

UniFi AP-Outdoor 5G (UAP-Outdoor5)
This outdoor model operates in the 5 GHz frequency spectrum. The UAP-Outdoor5 includes two external omni antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft).
| SPECIFICATIONS | |
|---|---|
| Memory Name | UAP-OUTDOOR5 |
| 2.4 GHz Speed | -- |
| 5 GHz Speed | 300Mbps |
| Range | 183 m (600 ft) |
| Multi-Lane RF | -- |
| Secondary Ethernet Port | Yes |
| Gigabit Ethernet | -- |
| Wi-Fi Standards | 802.11 a/n |
| 2.4 GHz | -- |
| 5 GHz | Yes |
| Simultaneous Dual-Band | -- |
| Ubiquiti POE | Yes |
| 802.3 af or 802.3 at Compliant | -- |
| External Antennas | Yes |
| UniFi AP Outdoor5 | |
| Dimensions | 170 x 80 x 30 mm (6.69 x 3.15 x 1.18 in) |
| Weight | 230 g (8.11 oz) without Mounting Kits 274 g (9.67 oz) with Mounting Kits |
| Networking Interface | (2) 10/100 Ethernet Ports |
| Buttons | Reset |
| Antennas | (2) External 6 dBi Omni Antennas Included 191 mm (Length), 13 mm (Diameter) |
| Wi-Fi Standards | 802.11 a/n/ |
| Power Method | Passive Power over Ethernet (12-24V) |
| Power Supply | 24V, 1A PoE Adapter (Included) |
| Maximum Power Consumption | 6.5 W |
| Maximum TX Power | 27 dBm |
| BSSID | Up to Four Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall and Pole (Kits Included) |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 - 95% Non-Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS15, HT 20/40 |
