Ubiquiti Networks Part #/MPN: UAP
DiscTech Item #: UBI-UAP-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 1
Wattage/VA: 4W
Voltage: 24V
Ubiquiti Networks UAP 802.11 b/g/n Enterprise AES UniFi AP WiFi System - Brand New
Ubiquiti Networks UAP 802.11 b/g/n Enterprise Advanced Encryption Standard UniFi AP WiFi System - Brand New

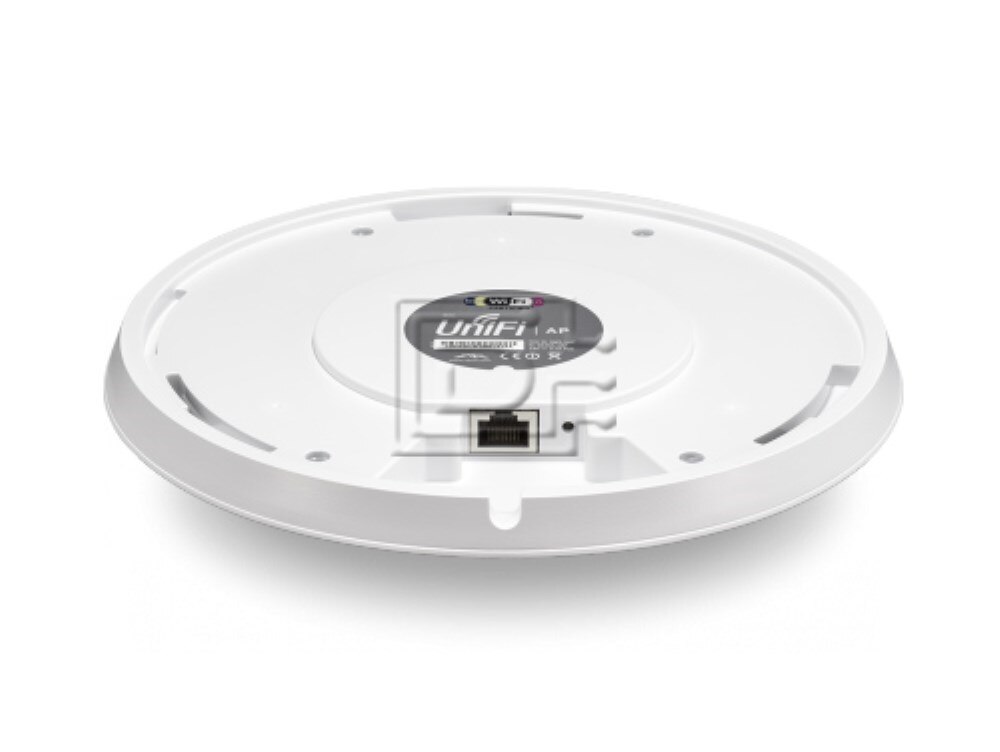

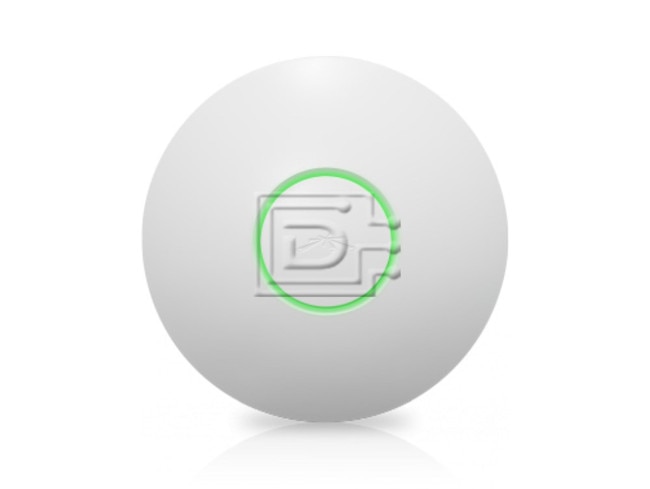

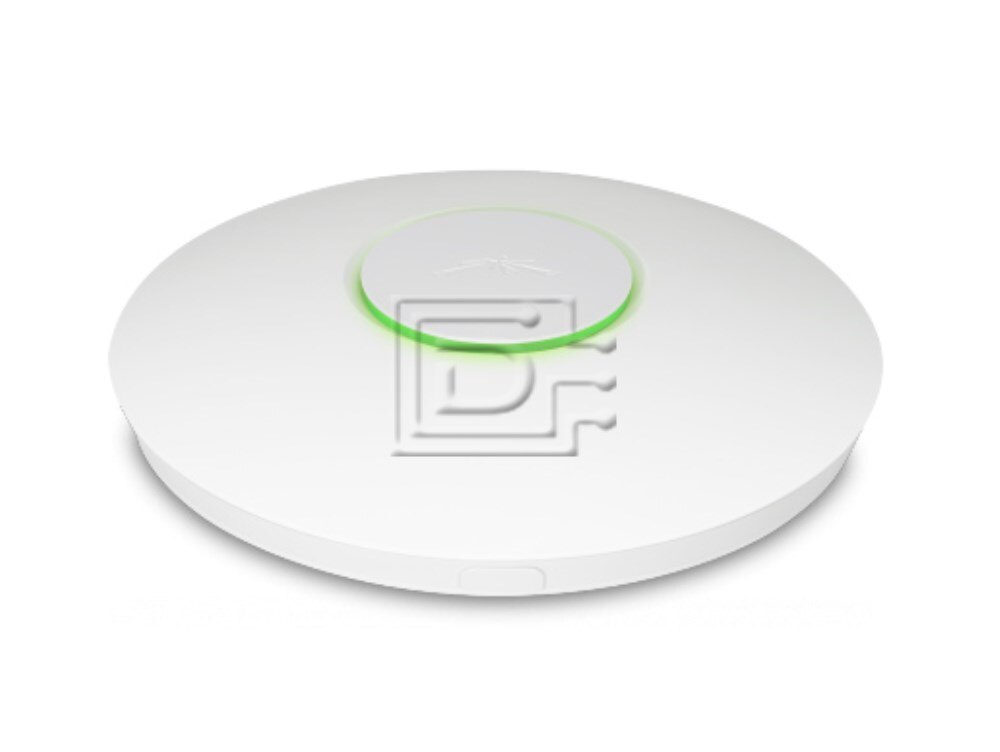

UniFi AP (UAP)
This is our standard model 802.11n MIMO UniFi AP. It is capable of speeds up to 300 Mbps with a range of up to 122 m (400 ft).
Specifications | |
---|---|
Memory Name | UAP |
2.4 GHz Speed | 300 Mbps |
5 GHz Speed | -- |
Range | 122 m (400 ft) |
Secondary Ethernet Port | -- |
Gigabit Ethernet | -- |
Wi-Fi Standards | 802.11 b/g/n |
2.4 GHz | Yes |
5 GHz | -- |
Simultaneous Dual-Band | -- |
Ubiquiti POE | Yes |
802.3 af or 802.3 at Compliant | -- |
Security Lock | Yes |
UniFi AP | |
Dimensions | 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 in) |
Weight | 290 g (10.23 oz) without Mounting Kits 430 g (15.17 oz) with Mounting Kits |
Networking Interface | (1) 10/100 Ethernet Port |
Buttons | Reset |
Antennas | Intergrated 3 dBi Omni (Supported 2 x 2 MIMO with Spatial Diversity) |
Wi-Fi Standards | 802.11 b/g/n |
Power Method | Passive Power over Ethernet (12 - 24 V) |
Power Supply | 24V, 0.5A PoE Adapter Included |
Maximum Power Consumption | 4 W |
Maximum TX Power | 20 dBm |
BSSID | Up to Four Per Radio |
Power Save | Supported |
Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Certifications | CE,FCC. IC |
Mounting | Wall/Cealing (Kits Included) |
Operating Temperature | -10 to 70° C (14 to 158° F) |
Operating Humidity | 5 - 80% Non-Condensing |
Advanced Traffic Management | |
VLAN | 802.1Q |
Advanced Qos | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
WMM | Voice, Video, Best Effort, and Background |
Concurrent Clients | 100+ |
Supported Data Rates (Mbps) | |
802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MC515, HT 20/40 |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Click here to view the manufacturer's item description/brochure
Weight: 2 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
