Ubiquiti Networks Part #/MPN: US-24-500W
DiscTech Item #: UBI-US-24-500W-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, SFP
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 24
U Height: 1U
Wattage/VA: 500W
Voltage: 110-240V Multi

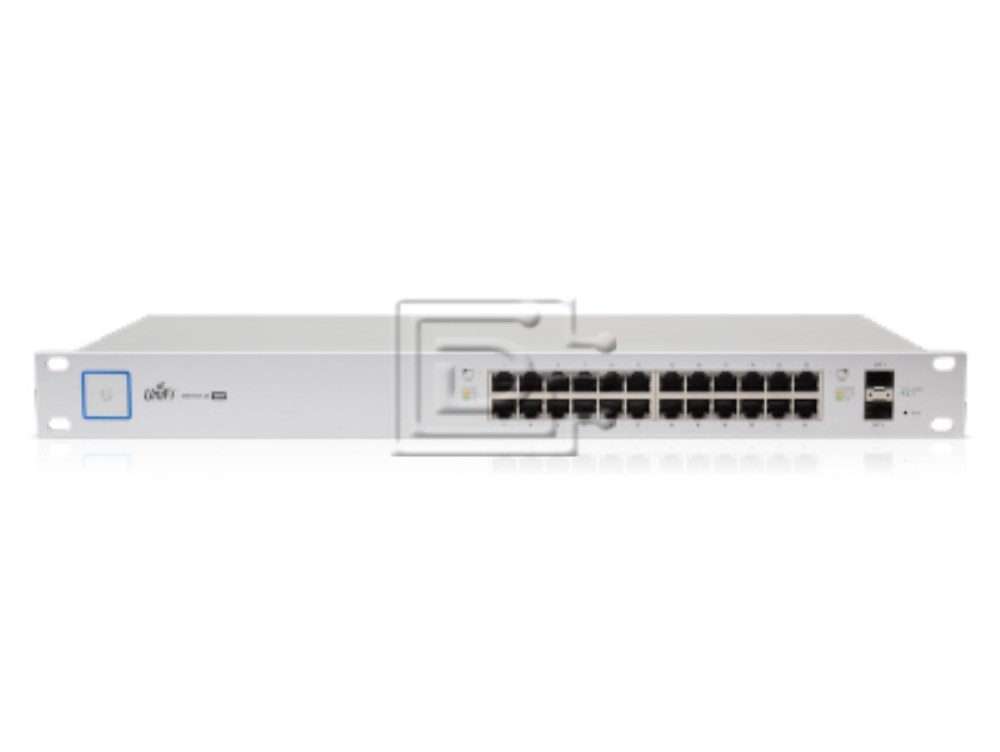

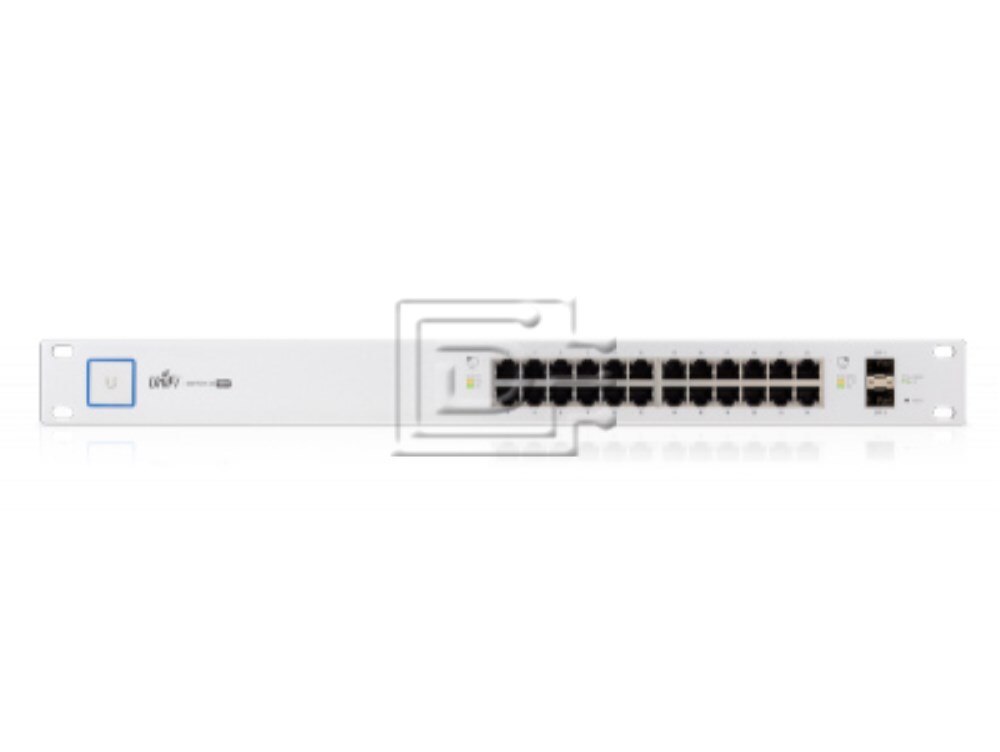

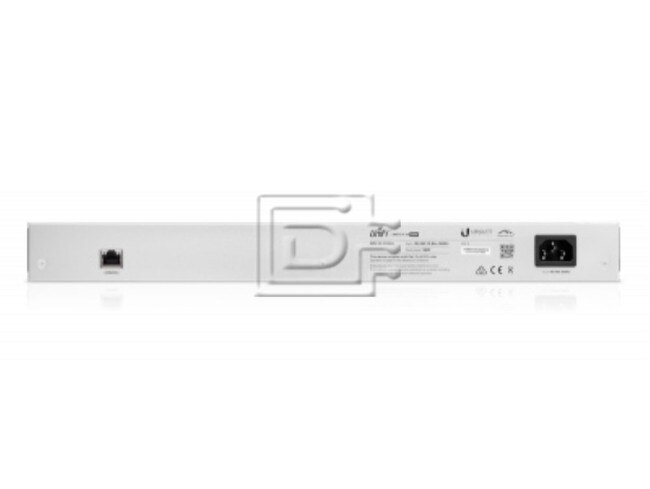

Ubiquiti Networks US-24-500W 500W 24 PoE Gigabit RJ45 Port w/SFP UniFi Rackmountable Ethernet Switch - Brand New
Ubiquiti Networks US-24-500W 500W 24 PoE Gigabit RJ45 Port w/SFP UniFi Rackmountable Ethernet Switch - Brand New
UniFi Switch
Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
Poe+ Flexibility
The UniFi Switch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure
By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.
Fiber Connectivity
The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.
UniFi Switch 24 (500W Model) Model: US-24-500W
- (24) Gigabit RJ45 ports • (2) SFP ports
- (1) Serial console port (reserved for future use)
- Non-blocking throughput: 26 Gbps
- Switching capacity: 52 Gbps
- Forwarding rate: 38.69 Mpps
- Maximum power consumption: 500W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Rackmountable
| SPECIFICATIONS | |
|---|---|
| Memory Name | US-24-500W |
| Dimensions | 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24 in) |
| Weight | 3.7 kg (8.16 lb) |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Max Power Consumption | 500W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| LEDs Per Port Serial Console Port RJ45 Data Ports SFP Data Ports | N/A PoE, Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE Per Port | |
| PoE Interface | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50-57V |
| Max Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
Click here to view the manufacturer's item description/brochure
Weight: 9 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
