Ubiquiti Networks UVC-DOME 256MB Surveillance Management Video Camera

Ubiquiti Networks Part #/MPN: UVC-DOME

DiscTech Item #: UBI-UVC-DOME-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: Ethernet RJ45

On-Board Cache: 256MB

Wattage/VA: 4W

Voltage: 24V

Ubiquiti Networks UVC-DOME 256MB 720p HD Unified Surveillance Management UniFi Dome Video Camera - Brand New

Ubiquiti Networks UVC-DOME 256MB DDR3 RAM, 720p HD Resolution, Unified Surveillance Management, UniFi Dome Video Camera - Brand New

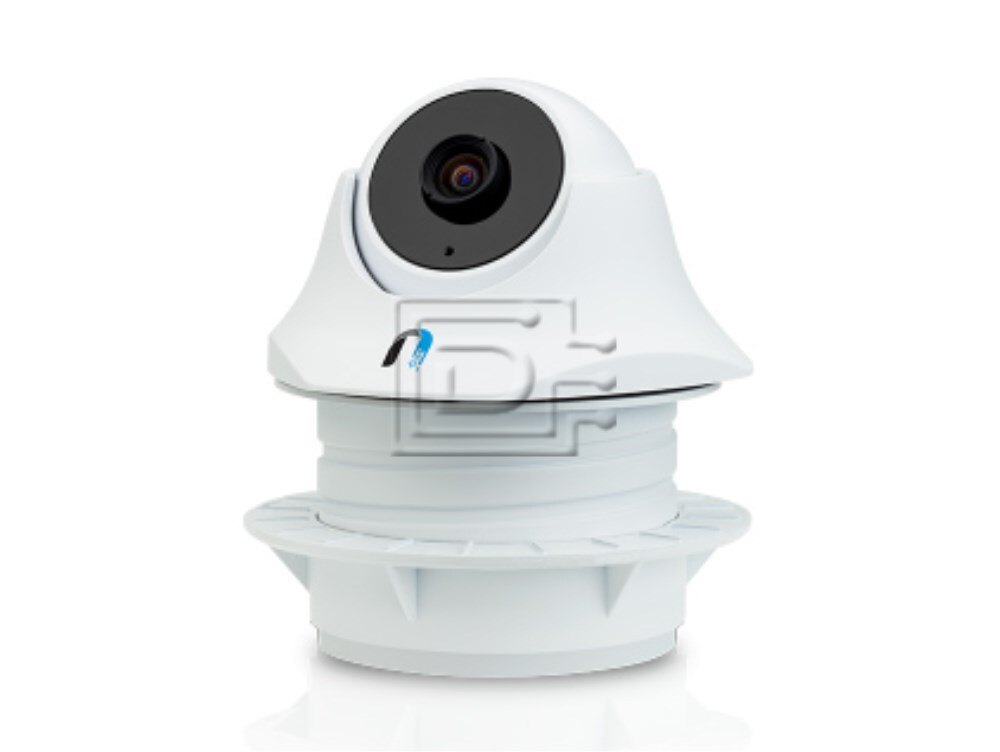

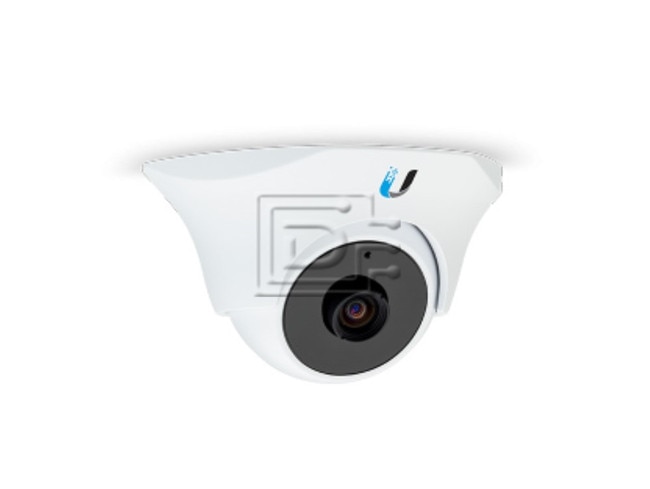

UniFi Dome Video Camera

Designed for indoor use, the UniFi®Video Camera Dome discreetly integrates into any ceiling surface. The camera features a wide-angle lens and provides 720p HD resolution at 30 FPS. The camera has infrared LEDs with automatic IR cut filter. It is available in a single-pack or 3-pack.

  • 720p HD, 30 FPS
  • Wide-Angle Lens
  • Built-in Microphone
  • Powered through Ethernet


The UniFi Video software is pre-installed on the UniFi NVR for quick and easy deployment. The UniFi Video software can also be downloaded and installed on a Windows/Linux system.


Feature-Packed User Interface
Accessible from a web browser, the UniFi Video interface was designed to be easy to use yet packed with advanced features. The UniFi Video interface is incredibly intuitive and loaded with powerful features such as detailed statistical reporting, multiple views, versatile camera settings, advanced analytics, and customizable event recordings.

Plug and Play Installation
Automatic camera detection in the UniFi Video software makes it easy to install and deploy cameras. UniFi Video Camera settings are integrated into the UniFi Video software. Configure camera settings, reboot the camera, or upgrade the firmware from the UniFI Video interface.

Mobile Support
The UniFi Video web interface is accessible on iOS and Android tablets and phones.

Camera-Based Motion Detection
The UniFi Video cameras handle motion detection instead of the server, relieving the workload on the server and ensuring that compression and noise won’t affect motion detection.

Additional Live Views
Playlists can be created with a configurable live camera feed rotation. Define the cameras you want included in the playlist and how long you want them to appear on the screen before moving on to the next live feed.

Disk Management Features
UniFi Video has automatic recording management to free up disk space. User definable disk space and date-based auto purge allow users to keep a set amount of free disk space or automatically delete recordings after a certain number of days. Another storage feature is the ability to map external USB or network storage drives

Cost-Effective Solution
Shattering conventional industry thinking, Ubiquiti offers UniFi Video’s powerful IP surveillance software at no additional cost. No huge upfront costs, no monthly subscription fees.

Memory NameUVC-DOME
Dimensions111 x 96 x 96 mm
(4.4 x 3.8 x 3.8 in)
Weight178 g
(6.28 oz)
Ports(1) 10/100 Ethernet, MicroSD Card Slot
Sensor1/4" CMOS Image Sensor
Lens1.96 mm/F1.8
Power LEDAmber
Link/Activity LEDGreen
Night ModeIR LED with Mechanical IR Cut Filter
ButtonsFactory Reset Button
Power MethodPassive over Ethernet (12-24V)
Power Supply24V, 0.5A PoE Adapter Included
Maximum Power Consumption4 W
CertificationsCE, FCC, IC
MountingCeiling Mount
Operating Temperature0 to 40°C (32 to 104°F)
Operating Humidity20 - 90% Noncondensing
Video CompressionH.264
Resolution720p HD (1280 x 720)
Maximum Frame Rate30 FPS
Image SettingBrightness, Contrast, Sharpness, Saturation, Mirror, Flip, Noise Reduction, 50/60 Hz
ProcessorARM 1136J-S, 528 MHz
Memory256 MB DDR3
Flash Memory Support(1) MicroSD Card Slot
View Angle88.8°(H)

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
