Ubiquiti Networks Part #/MPN: UVC
DiscTech Item #: UBI-UVC-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
On-Board Cache: 256MB
Wattage/VA: 4.5W
Voltage: 24V
Resolution: 720x1280

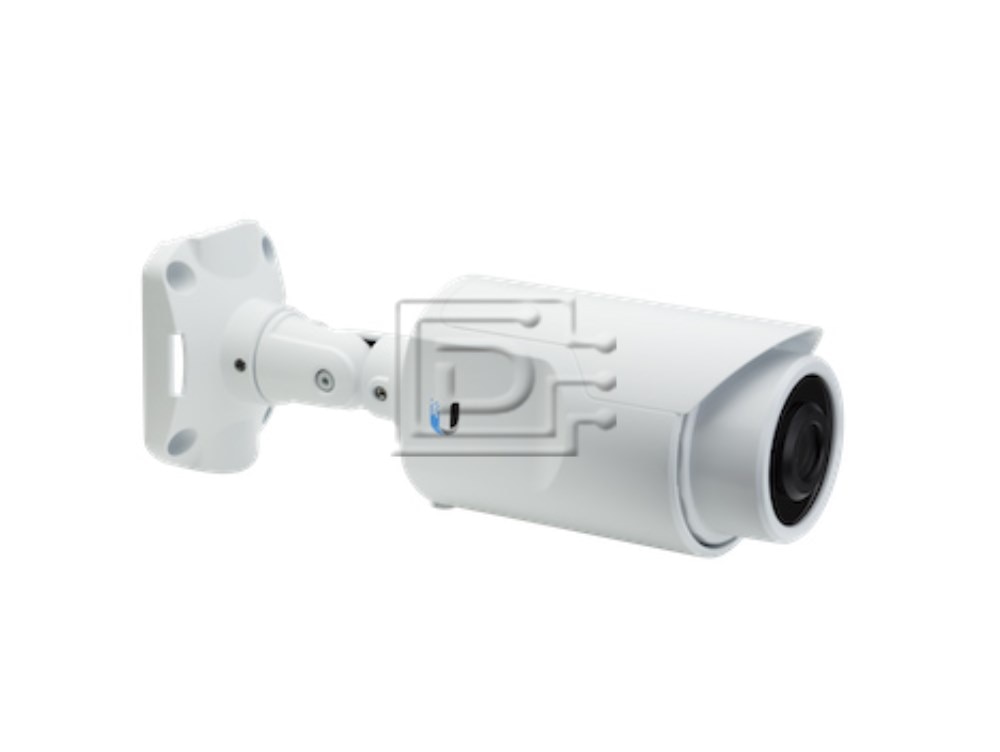

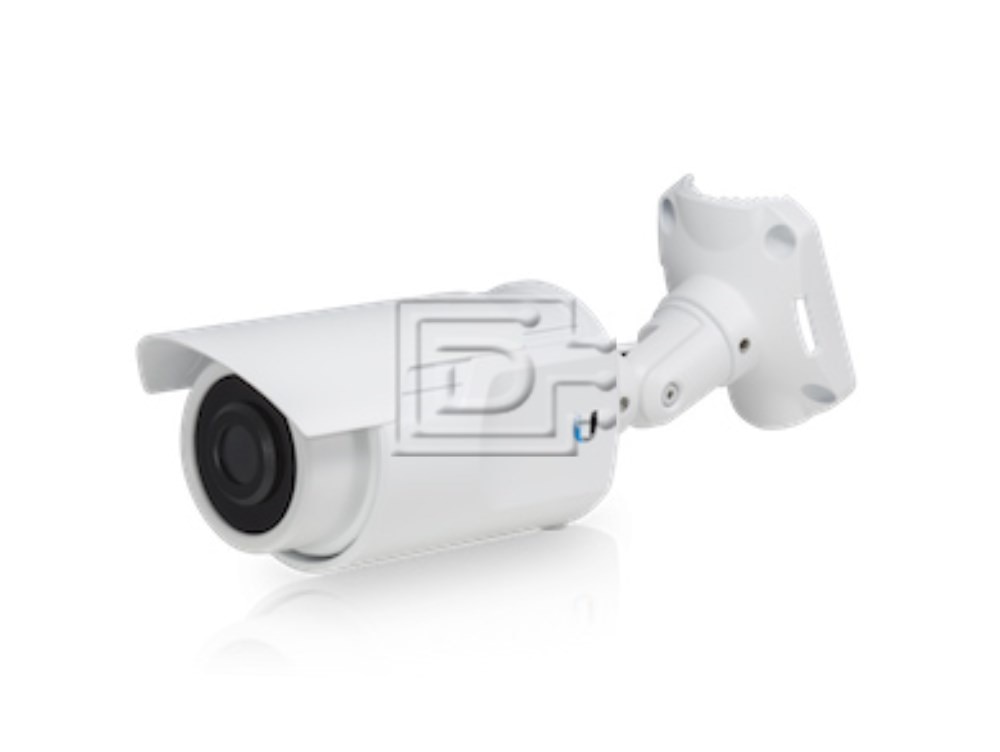

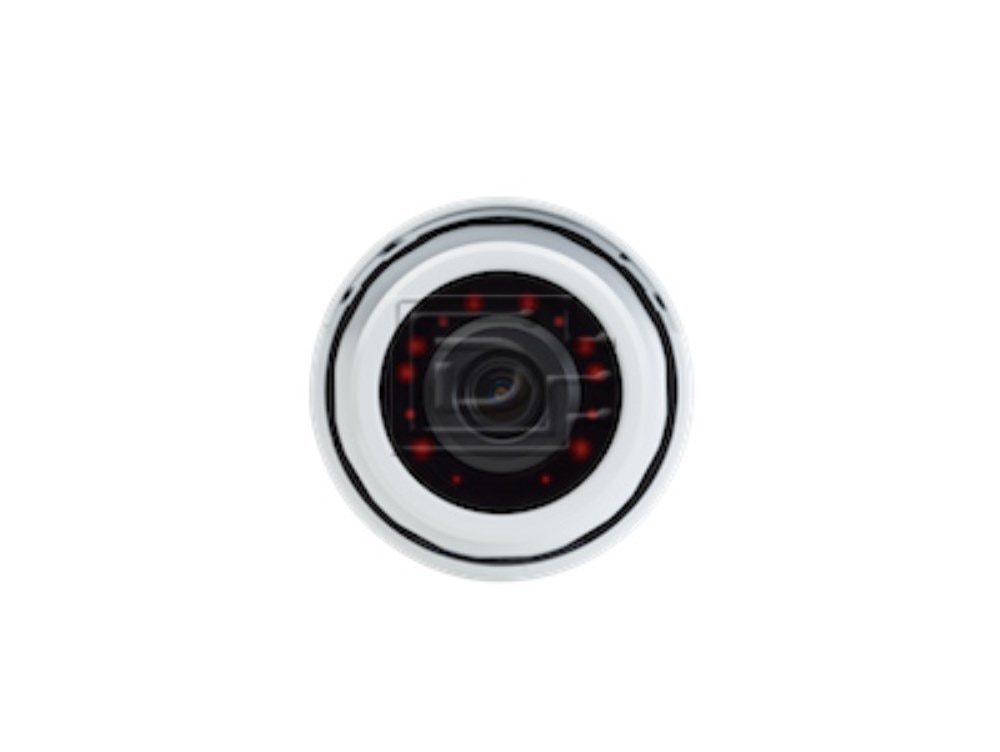

Ubiquiti Networks UVC 256MB 720p HD UniFi Surveillance Management Video Camera - Brand New
Ubiquiti Networks UVC 256MB 720p HD UniFi Surveillance Management Video Camera - Brand New
UniFi Video Camera
The UniFi® Video Camera provides 720p HD resolution at 30 FPS and is designed for use indoors or outdoors under an overhang. The camera has infrared LEDs with automatic IR cut filter. It is available in a single-pack or 3-pack.
- 720p HD, 30 FPS
- Built-in Microphone
- Wall, Ceiling, or Pole Mount
- Powered through Ethernet
Software
The UniFi Video software is pre-installed on the UniFi NVR for quick and easy deployment. The UniFi Video software can also be downloaded and installed on a Windows/Linux system.
Features
Feature-Packed User Interface
Accessible from a web browser, the UniFi Video interface was designed to be easy to use yet packed with advanced features. The UniFi Video interface is incredibly intuitive and loaded with powerful features such as detailed statistical reporting, multiple views, versatile camera settings, advanced analytics, and customizable event recordings.
Plug and Play Installation
Automatic camera detection in the UniFi Video software makes it easy to install and deploy cameras. UniFi Video Camera settings are integrated into the UniFi Video software. Configure camera settings, reboot the camera, or upgrade the firmware from the UniFI Video interface.
Mobile Support
The UniFi Video web interface is accessible on iOS and Android tablets and phones.
Camera-Based Motion Detection
The UniFi Video cameras handle motion detection instead of the server, relieving the workload on the server and ensuring that compression and noise won’t affect motion detection.
Additional Live Views
Playlists can be created with a configurable live camera feed rotation. Define the cameras you want included in the playlist and how long you want them to appear on the screen before moving on to the next live feed.
Disk Management Features
UniFi Video has automatic recording management to free up disk space. User definable disk space and date-based auto purge allow users to keep a set amount of free disk space or automatically delete recordings after a certain number of days. Another storage feature is the ability to map external USB or network storage drives
Cost-Effective Solution
Shattering conventional industry thinking, Ubiquiti offers UniFi Video’s powerful IP surveillance software at no additional cost. No huge upfront costs, no monthly subscription fees.
| UVC SPECIFICATIONS | |
|---|---|
| Model Name | UVC |
| Dimensions | 275 x 75 x 75 mm (8.85 x 2.95 x 2.95 in) |
| Weight | 373 g (13.1 oz) |
| Ports | (1) 10/100 Ethernet Port, microSD Card Slot |
| Sensor | Progressive Scan RGB 1/4" CMOS Image Sensor |
| Lens | 3.6 mm/F1.8 |
| Power LED | Amber |
| Link/Activity LED | Green |
| Night Mode | IR LED with Mechanical IR Cut Filter |
| Microphone | Yes |
| Buttons | Factory Reset Button |
| Power Method | Passive over Ethernet (12-24V) |
| Power Supply | 24V, 0.5A PoE Adapter Included |
| Maximum Power Consumption | 4.5 W |
| Certifications | CE, FCC, IC |
| Mounting | Pole/Wall/Ceiling |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Operating Humidity | 20 - 90% Noncondensing |
| VIDEO | |
| Video Compression | H.264 |
| Resolution | 720p HD (1280 x 720) |
| Maximum Frame Rate | 30 FPS |
| Image Setting | Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz |
| GENERAL | |
| Processor | ARM 1136J-S, 528 MHz |
| Memory | 256 MB DDR3 |
| View Angle | 56.14° (H) 36.86°(V) 64.33°(D) |
Click here to view the manufacturer's item description/brochure
Weight: 0.5 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
