Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 64MB
Bays/Ports/Slots: 1
Wattage/VA: 6.5W
Voltage: 24V

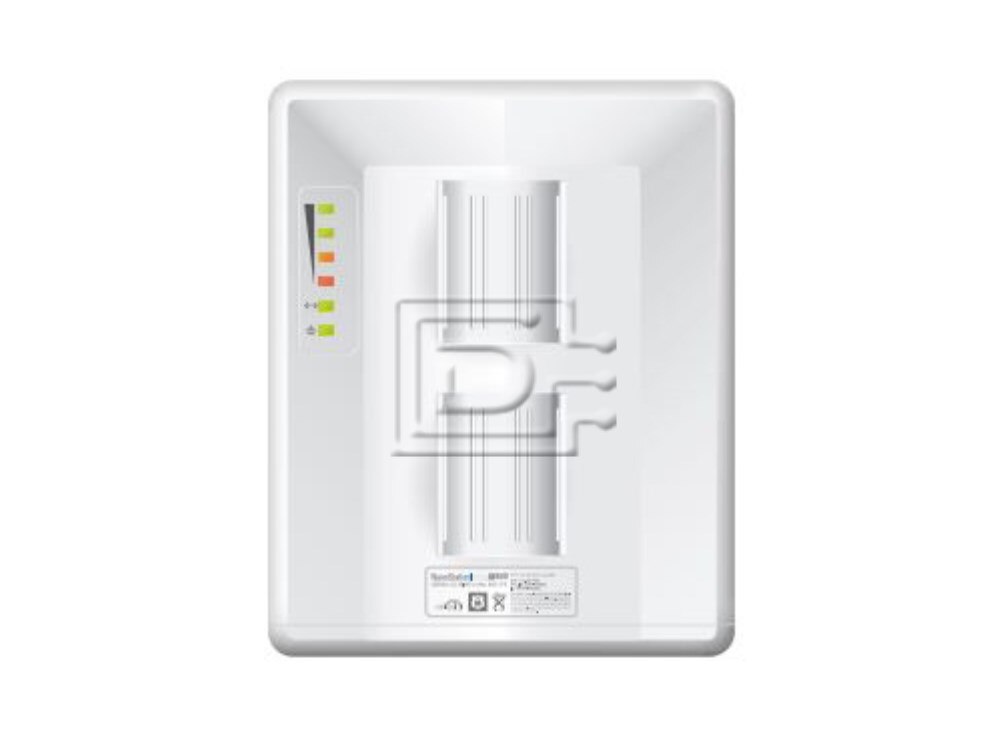

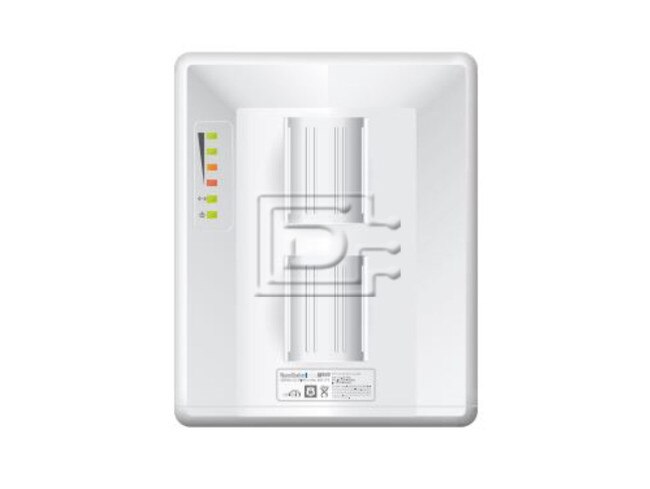

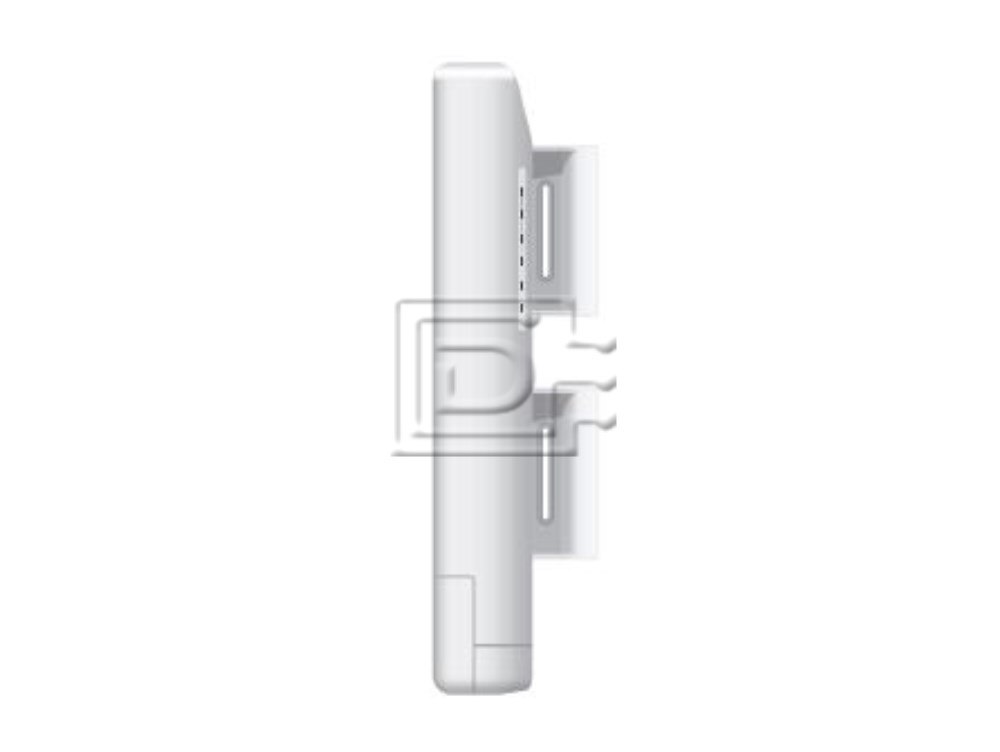

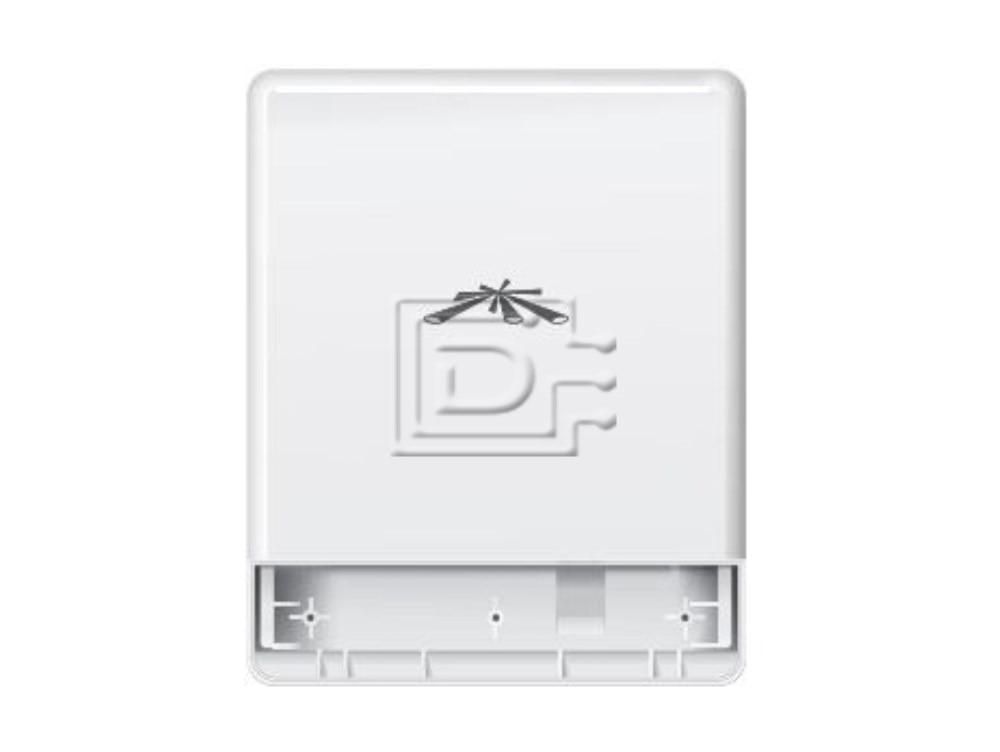

Ubiquiti Networks locoM9 NanoStation loco M 900MHz Indoor/Outdoor Wireless Bridge - Brand New
Ubiquiti Networks locoM9 NanoStation loco M 900MHz Indoor/Outdoor Wireless Bridge - Brand New
Overview
Leading-Edge Industrial Design
Ubiquiti Networks™ set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation™. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX™ (MIMO TDMA protocol) technology.
The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability
Long Distance Capable of high speed, carrier-class links.
Latency Multiple features dramatically reduce noise.
Dual Ethernet Connectivity
The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
Intelligent PoE
Remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.
The NanoStationM may also be powered by the Ubiquiti Networks TOUGHSwitch PoE. In addition, any NanoStationM can easily become 48V, 802.3af compliant through use of the Ubiquiti Instant 802.3af Adapter (sold separately).
| SYSTEM INFORMATION | |
|---|---|
| Model Number | LOCOM9 |
| Processor Specs | Atheros MIPS 24KC 400 MHz |
| Memory | 64 MB SDRAM 8 MB Flash |
| Networking Interface | (1) 10/100 Ethernet Port |
| REGULATORY/COMPLIANCE INFORMATION | |
| Wireless Approvals | FCC Part 15.247 IC R210 |
| RoHS Compliance | Yes |
| PHYSICAL/ELECTRICAL/ENVIRONMENTAL | |
| Dimensions (mm) | 164 x 72 x 199 |
| Weight | 0.9 kg |
| Power Supply | 24V 0.5A |
| Max Power Consumption | 6.5 W |
| Gain | 8 dBi |
| RF Connector | External RP-SMA |
| Polarizaion | Dual Linear |
| Enclosure Characteristics | |
| Mounting | Pole Mounting Kit Included |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Operating Temperature | -30 to 75°C |
| Operating Humidity | 5 to 95% Condensing |
| Shock & Vibration | ETS1300-019-1.4 |
| OPERATING FREQUENCY SUMMARY (MHz) | |
| Worldwide | 902 - 928 |
| USA | 902 - 928 |
| USA DFS | ----------- |
| OUTPUT POWER | |
| Power Specification | 900 MHz |
| ANTENNA INFORMATION | |
| Gain | 7.5 dBi |
| Cross-pol Isolation | 28 dB Minimum |
| Max VSWR | 1.3:1 |
| Beamwidth | 60° (H-pol) 60°(V-pol) 60°(Elevation) |
