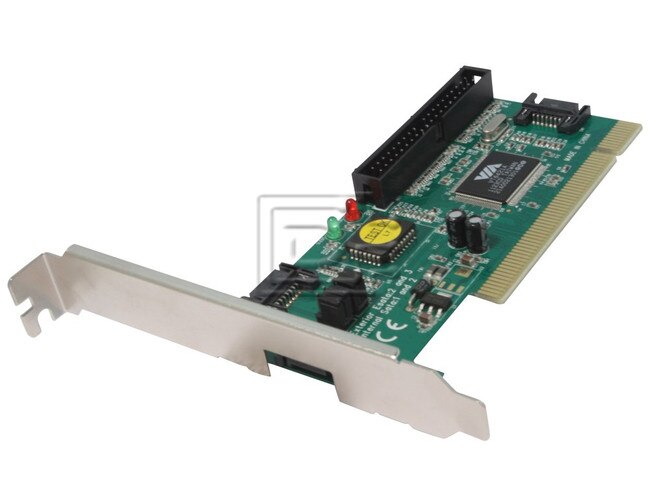

VIA VT6421A eSATA + SATA + IDE PCI Controller Card

VIA Part #/MPN: VT6421A

DiscTech Item #: VIA-VT6421A-BN-OE


$19.99
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$19.99

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: EIDE Ultra ATA133 133MBps

Voltage: 3.3V

VIA VT6421A eSATA + SATA Serial ATA + IDE PCI Controller Card for Windows 98SE/ME/NT/2000/XP - Brand New

  • VIA VT6421A chipset
  • PCI interface
  • 33 MHz operation
  • Supports PCI 2x mode
  • Complies with PCI Local Bus Specification Rev 2.2
  • Supports external flash for BIOS expansion and Raid Functions
  • Supports RAID Level 0/RAID Level 1/JBOD
  • Serial ATA Specification Rev 1.1 compliant
  • Supports intenal PHY
  • Dual channel master mode supports up to two SATA
  • Up to 150 Mbps maximum transmission rate for SATA
  • UDMA/133 IDE interface
  • Single channel mode disk controller supports two IDE enhanced drives
  • Supports ATA PIO mode 4 , DMA-mode 2 drives, & UDMA-mode 6
  • One (1) UDMA/133 internal IDE connector
  • Three (3) SATA connectors (two internal, one external - eSATA).

Compatibility:

  • Microsoft Windows 98/ME/NT/2000/XP/2003 Server
  • Available PCI slot
  • CD-ROM drive
  • Toshiba / Samsung MS28 Xbox 360 DVD Drive

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
