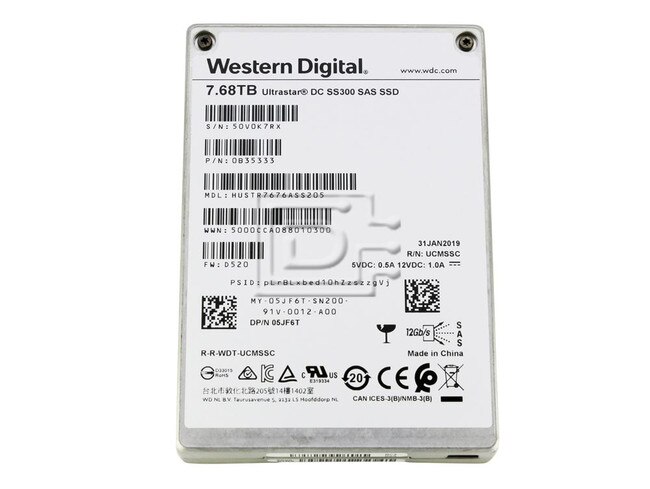

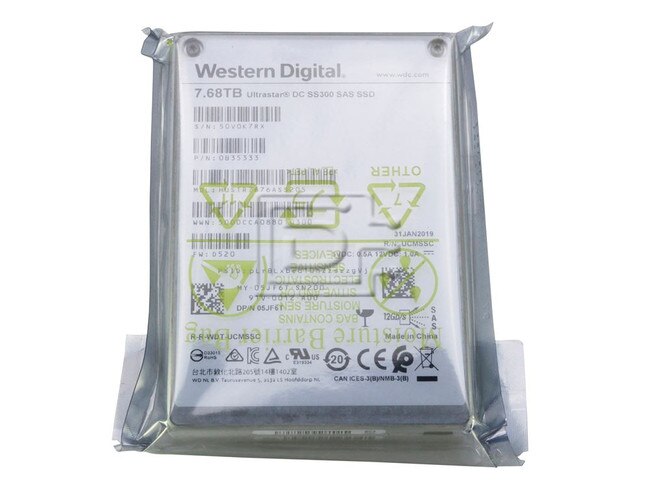

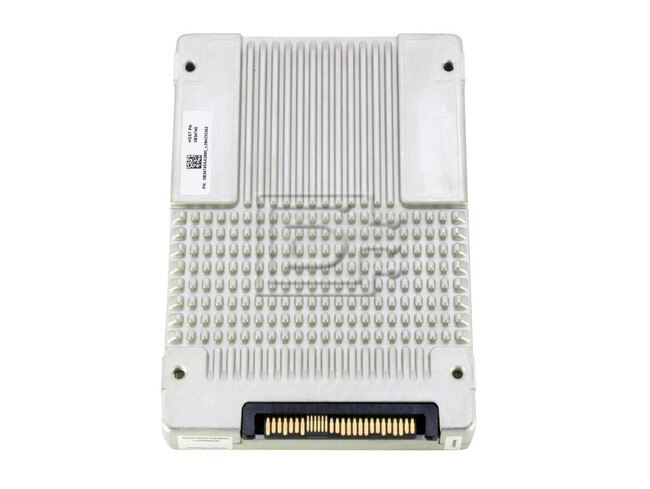

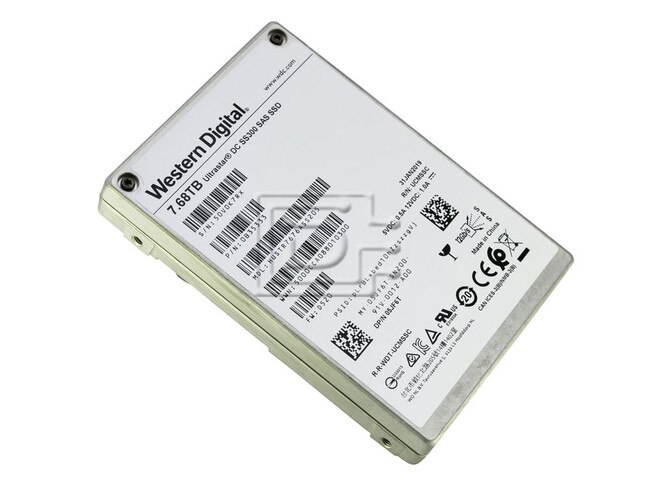

Western Digital / HGST Ultrastar DC SS300 HUSTR7676ASS205 / 0B35333 / Dell 5JF6T 7.68TB SED FIPS SAS Solid State Drive

Hitachi Part #/MPN: HUSTR7676ASS205

DiscTech Item #: WDC-HUSTR7676ASS205-BN-OE-DEG


$1,999.00
$1,999.00

Enterprise Grade

Capacity: 7.68TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 2100/1250

Average Seek Time: 105 μs | 105 μs

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Western Digital / HGST Ultrastar DC SS300 HUSTR7676ASS205 / 0B35333 / 0B34998 / Dell 5JF6T 7.68TB 2.5-Inch SFF 12Gbps TLC Read Intensive SED TCG FIPS SAS Solid State Drive - Brand New

Western Digital / HGST Ultrastar DC SS300 HUSTR7676ASS205 / 0B35333 / 0B34998 / Dell 5JF6T / 05JF6T 7.68TB / 7680GB 2.5" SFF / Small Form Factor 12.0 Gb/s TLC / 3D Tri-Level Cell NAND RI / Read Intensive 1-DWPD / Drive Writes Per Day SED / Self-Encrypting TCG / Trusted Computing Group FIPS SAS / Serial Attached SCSI SSD / Solid State Drive - Brand New

supports Trusted Computing Group Encryption

HGST
Ultrastar SS300



Increase Productivity and Operational Efficiency by Boosting IOPS Performance with SAS SSDs
As data centers and enterprises struggle to manage the growing abundance and availability of data, the next generation of SAS SSDs with enhanced performance and endurance arrives to help address data access challenges. The Ultrastar® SS300 solid-state drive (SSD) is offered in a 2.5-inch small form factor that delivers ultra-high performance to power through the most challenging workloads.

Designed with a 12Gb/s SAS interface for seamless integration into enterprise environments, the Ultrastar SS300 delivers high sequential throughput, up to 2100MB/s read at 14W power. Available with capacities from 7.68TB to 400GB, the SS300 delivers up to 400,000 read and 200,000 write IOPS—double the speed of current 12Gb/s SSDs—providing rapid access to “hot” enterprise data for higher productivity and operational efficiency. The Ultrastar SS300 family offers significant value in terms of IOPS per Watt, reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.

Data Durability and Security with Industry-Leading Quality and Reliability
Ultrastar SS300 combines enterprise-grade 3D MLC or TLC NAND flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance, and sustained performance over the life of the SSD. The Ultrastar SS300 family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hours mean-timebetween-failure (MTBF). The 3.2TB 10 DW/D capacity Ultrastar SSD endures up to 59 petabytes (PB) of random writes over the life of the drive—the equivalent of writing 16 terabytes (TB) per day for five years.

For complete end-to-end data protection and reliability, the Ultrastar SS300 family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), ExclusiveOR (XOR) parity to protect against flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SS300 family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity), whichever comes first.

Trust Your Storage Systems with SSD Products Developed by Experts in Enterprise Storage
The HGST brand leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar SS300 family. The synergistic relationship between the new throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage options, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST-brand storage drives an ideal choice to help meet escalating reliability, endurance, and performance in the most demanding enterprise environments.

Features & Benefits

Performance

  • Feature / Function
    • SAS 12Gb/s interface
    • MLC NAND flash memory
    • 2100 / 2050 MB/s sequential R/W
    • 400K / 200K IOPS random R/W
    • 285K IOPS on 70/30 mixed R/W
  • Benefits
    • 12G Active-Active Dual port & 12G single/dual port for enhanced reliability
    • Highest read/write performance at 14W operating power
    • Maximum throughput and IOPs for ultra-fast access to data. Double write performance of other 12Gb/s SAS SSD



Power

  • Feature / Function
    • 9, 11 & 14 Watt options
  • Benefits
    • Higher IOPS performance with higher power options



Capacity

  • Feature / Function
    • 7.68TB to 400GB
  • Benefits
    • Higher IOPS performance with higher power options



Reliability

  • Feature / Function
    • 0.35% AFR (2.5M hours MTBF)
    • 1E-17 bit error rate
    • Power loss data management
    • Unlimited reads, up to 59 PB writes
    • T10 end-to-end data protection
    • Exclusive-OR (XOR) NAND
  • Benefits
    • Reduced field replacement effort
    • Enhanced error detection and correction for optimal data integrity
    • Assures data integrity during power failure
    • Support for extreme write-intensive applications
    • Protection against flash die failure



Data Security

  • Feature / Function
    • Crypto Sanitize models
    • TCG encryption models
    • TCG + FIPS encryption models
  • Benefits
    • Enables swift drive redeployment and retirement
    • Hardware-based encryption protects data from unauthorized use



Integration

  • Feature / Function
    • HDD architecture commonality
    • Extensive systems integration and test lab
  • Benefits
    • Higher IOPS performance with higher power options



Highlights

  • 3D MLC or TLC NAND Flash for ultra-high performance and endurance
  • Best IOPs/Watt for reduced TCO
  • 12Gb/s SAS interface for maximum throughput
  • Advanced power loss data management technology
  • Self-encrypting models conform to TCG’s Enterprise specification



Applications/Environments

  • Ultra-high performance tier-0 enterprise storage
  • Enterprise-class servers and high performance computing
  • Space and/or power constrained environments
  • Online Transaction Processing (OLTP)
  • Video pre/post-production
  • Financial and e-commerce
  • Database analytics




Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS Hard Drive

HGST Ultrastar SS300
Model NumberHUSTR7676ASS205
Alt Model Number0B35333 / 0B34998
Encryption levelSelf Encrypting Drive (supports Trusted Computing Group Encryption) FIPS
Configuration
InterfaceSAS 6/12Gb/s supports Wide port @ 12Gb/s
Capacity7.68 / 7680GB
Endurance (Drive Writes per Day - DW/D)~1
Endurance (max PB, Rnd write)13,100
Form Factor2.5-inch SFF
Flash Memory Technology3D Tri-Level Cell (TLC) NAND
Performance
Read Throughput (max MB/s, Seq. 128KiB)2100
Write Throughput (max MB/s, Seq. 128KiB)1250
Read IOPS (max, Rnd 4KiB)400K
Write IOPS (max, Rnd 4KiB)85K
Mixed IOPS (70/30 R/W, max R/W, 4KiB)170K
Latency (μs , max)105
Reliability
Error Rate (non-recoverable, bits read)1 in 10e17
MTBF (M hours)2.5
Annualized Failure Rate (AFR)0.35%
Availability (hrs/day x days/week)24x7
Power
Requirement (+/- 5%)+5 VDC, +12VDC
Operating Modes (W, typical)
  • 9
  • 11
  • 14
Idle (W, max)<3.2TB: 3.7, ≥ 3.2TB: 4.7
Physical Size
z-height (mm)15
Dimensions (width x depth, mm)70.1 x 100.6
Weight (max, g)140
Environmental
Operating Temperature0º to 60º C
Non-operating Temperature-40º to 80º C
Shock (half-sine wave, G)1000G (0.5ms), 500G (2ms)
Vibration, random (G RMS, 5 to 700Hz)2.16 (XYZ)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0B35333 0B34998 5JF6T 05JF6T
