Dell 5PN33 7.68TB SAS Read Intensive SED 2.5in 12Gbps TCG FIPS Solid State Drive WUSTVA176BSS205 / 0B42928
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 7.68TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description

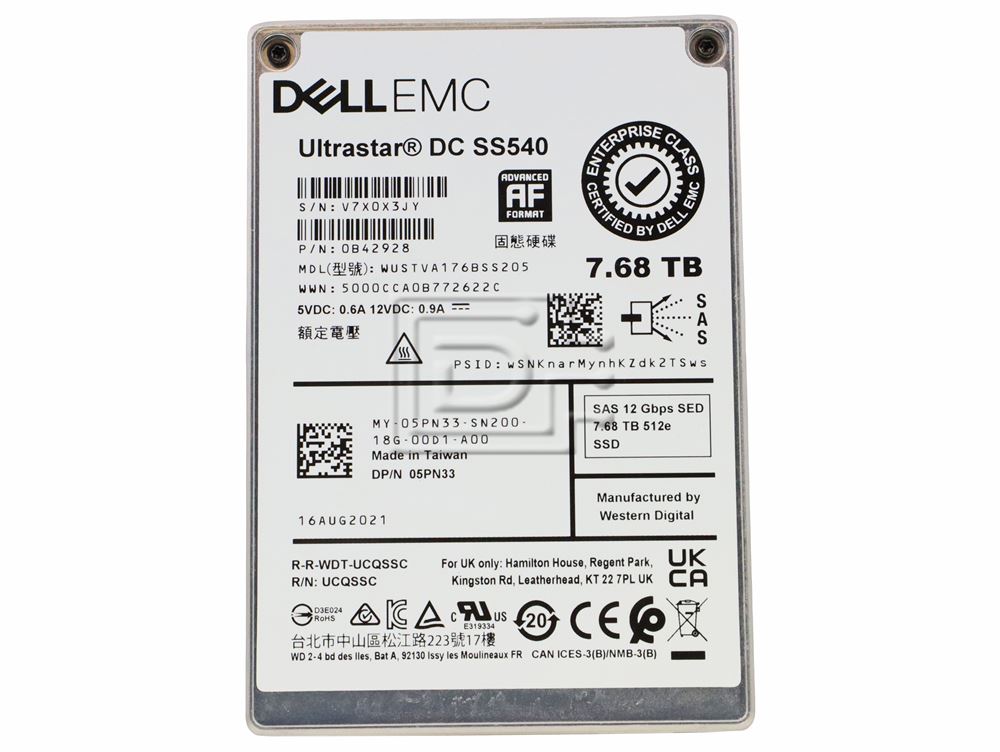

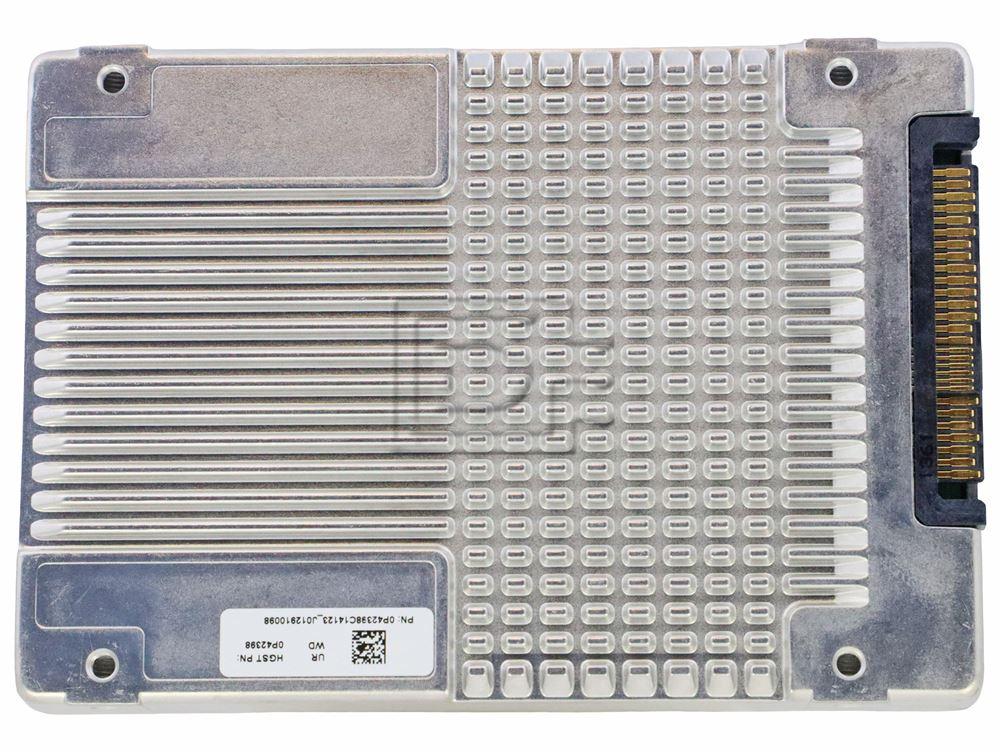

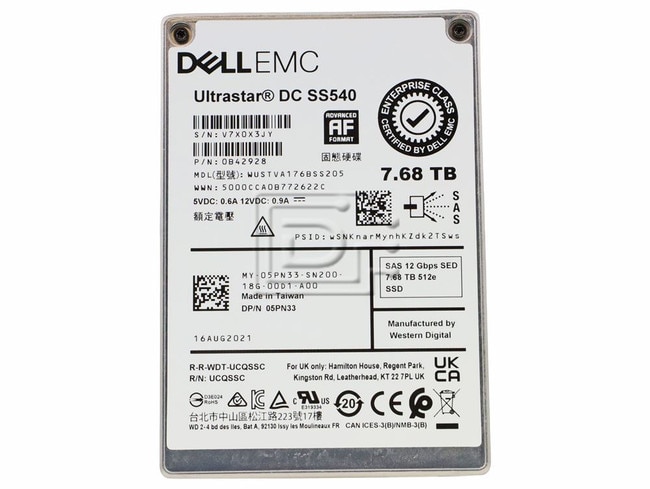

Western Digital / HGST Ultrastar DC SS540 WUSTVA176BSS205 / 0B42928 / Dell 5PN33 7.68TB 2.5" 12Gbps SAS SED TCG FIPS RI Solid State Drive - Brand New
Western Digital / HGST Ultrastar DC SS540 WUSTVA176BSS205 / 0B42928 / Dell 5PN33 05PN33 7.68TB / 7680GB 2.5" SFF / Small Form Factor 12.0 Gb/s TLC / 3D Tri-Level Cell NAND RI / Read Intensive 1-DWPD / Drive Writes Per Day SED / Self-Encrypting TCG / Trusted Computing Group FIPS SAS / Serial Attached SCSI SSD / Solid State Drive - Brand New
supports Trusted Computing Group Encryption
HGST
Ultrastar SS450
Highlights
- 3rd generation 96-layer 3D TLC NAND flash for performance and endurance
- 12Gb/s SAS interface for maximum throughput
- Advanced power-loss and data-management technology
- Self-encrypting models conform to TCG’s Enterprise specifications
Applications
- Ultra-high performance tier-0 enterprise storage
- Enterprise-class servers and high performance computing (HPC)
- Software-defined storage (SDS)
- Online transaction processing (OLTP)
- Finance and e-commerce
- Database analytics
Maximize Storage and Server Scalability with SAS SSDs
Data is transforming the world and growing at an exponential pace. The SAS interface continues its dominance in traditional enterprise storage arrays, making the ever-increasing volume of data rapidly and reliably available. Storage solutions depend on SAS’s protection features, such as dual-port failover for redundancy, and SAS’s high reliability to power missioncritical applications such as ERP, OLTP, OLAP, and more.
Ultrastar® DC SS540, Western Digital’s 6th generation of SAS SSD drive, delivers performance to data centers with 96-layer 3D NAND technology and a proven track record of reliability. Designed with a dual-port 12Gb/s SAS interface for seamless integration into data center
environments, the Ultrastar DC SS540 SAS SSD is available in capacities from 800GB to 15.36TB. Achieving exceptional performance by delivering up to 470K/240K Random Read/Random Write IOPS, the DC SS540 offers the best value for data centers by providing dual/single port support, desired features, power options, multiple endurance SKUs and mainstream capacities. It is ideal for ultra high-performance tier-0 enterprise storage, high performance computing (HPC), and software-defined storage (SDS).
Proven Architecture with Industry-Leading Quality and
Reliability
Ultrastar DC SS540, with 96-layer 3D TLC NAND flash, leverages the proven architecture of the prior generations of SAS to achieve an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hours mean-time-between-failure (MTBF). DC SS540 offers two endurance options of 1 and 3 drive writes per day (DW/D) to meet the most stringent data center requirements. Help keep confidential data secure by deploying self-encrypting drive technology that supports Trusted Computing Group (TCG) Enterprise standards for security services and FIPS 140 validation for cryptographic-enabled drives that are required for certain government applications. The Ultrastar DC SS540 is backed by a five-year limited warranty or the maximum petabytes (PB) written (based on capacity), whichever comes first.
Trust Your Storage Systems with SSD Products Developed by Experts in Enterprise Storage
Ultrastar SAS SSDs leverage decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification, and system integration to provide end-to-end data protection storage for data centers. The synergistic relationship
between throughput-enhancing SSDs and traditional HDDs provides cost-effective option that delivers reliability, compatibility, capacity, cost savings, and system performance. Ultrastar SAS SSD drives are the ideal choice to help meet escalating reliability, endurance, and performance requirements in the most demanding data center environments.
DPN: 5PN33 / 05PN33
Compatibility
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS Hard Drive
Specifications
| HGST Ultrastar SS540 | |
|---|---|
| Model Number | WUSTVA176BSS205 |
| Alt Model Number | 0B42928 |
| Configuration | |
| Performance | |
| Reliability | |
| Power | |
| Physical Size | |
| Environmental | |
| Encryption level | Self Encrypting Drive (supports Trusted Computing Group Encryption) FIPS |
| Interface | SAS 6/12Gb/s supports Wide port @ 12Gb/s |
| Capacity | 7.68 / 7680GB |
| Endurance (Drive Writes per Day - DW/D) | 1 DWPD |
| Endurance (max PB, Rnd write) | 15,050 |
| Form Factor | 2.5-inch SFF |
| Flash Memory Technology | 3D Tri-Level Cell (TLC) NAND |
| Read Throughput (max MB/s, Seq. 128KiB) | 2130 |
| Write Throughput (max MB/s, Seq. 128KiB) | 2101 |
| Read IOPS (max, Rnd 4KiB) | 441K |
| Write IOPS (max, Rnd 4KiB) | 110K |
| Mixed IOPS (70/30 R/W, max R/W, 4KiB) | 188K |
| Latency (μs , max) | 150/300 |
| Error Rate (non-recoverable, bits read) | 1 in 10e17 |
| MTBF (M hours) | 2.5 |
| Annualized Failure Rate (AFR) | 0.35% |
| Availability (hrs/day x days/week) | 24x7 |
| Requirement (+/- 5%) | +5 VDC, +12VDC |
| Operating Modes (W, typical) |
|
| Idle (W, max) | <15TB: 3.7, ≥ 15TB: 4.7 |
| z-height (mm) | 15 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (max, g) | 175 |
| Operating Temperature | 0º to 70º C |
| Non-operating Temperature | -40º to 80º C |
| Shock (half-sine wave, G) | 1000G (0.5ms), 500G (2ms) |
| Vibration, random (G RMS, 5 to 700Hz) | 2.16 (XYZ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0B42928 5PN33 05PN33
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
