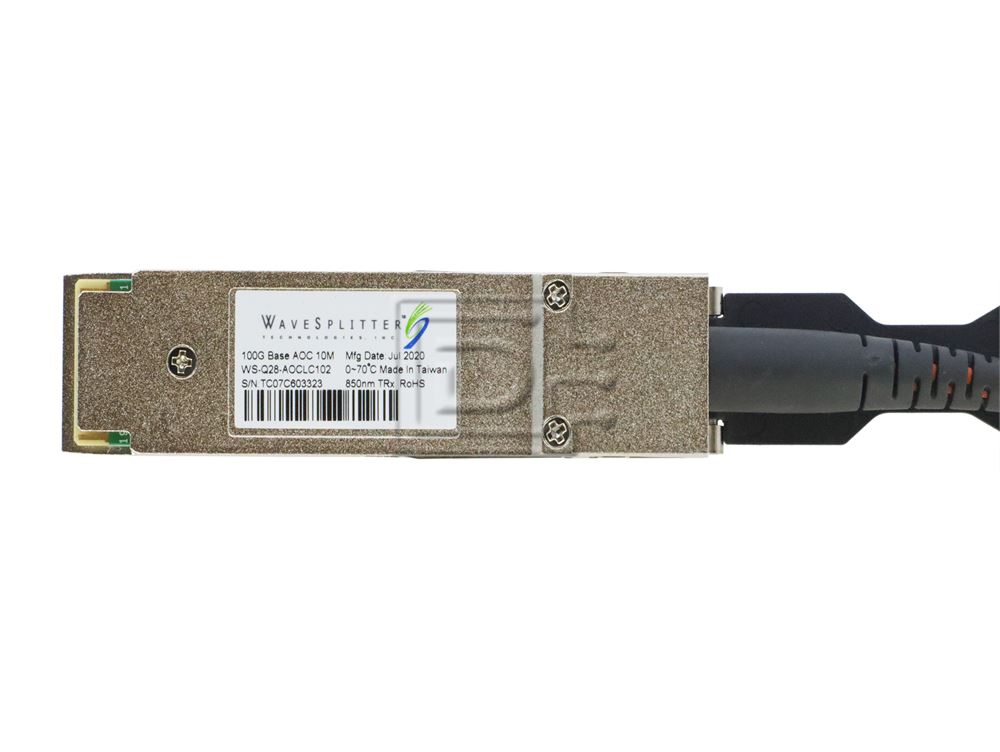

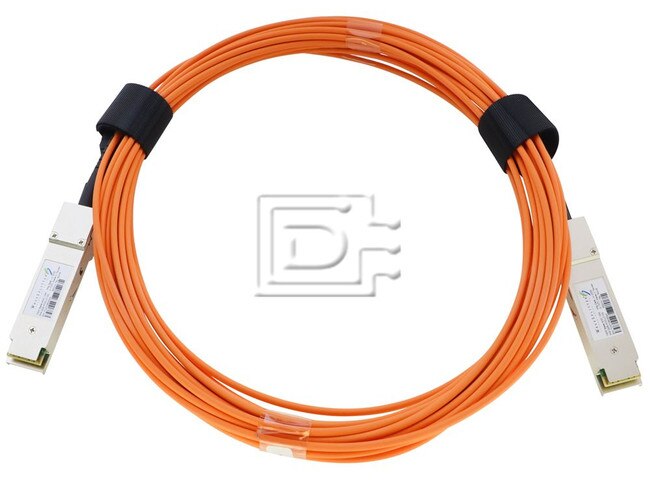

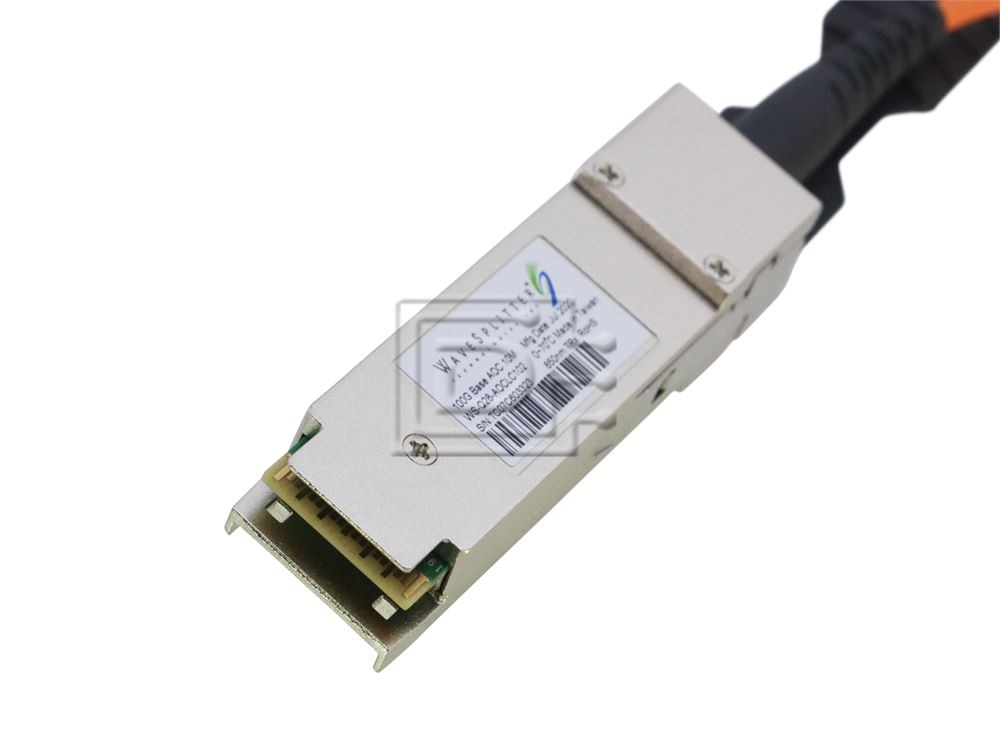

WaveSplitter WS-Q28-AOCLC102 / WS-Q28-AOCLC103 100Gbps QSFP28 10M / 33FT Active Ethernet Optical Cable - Brand New

WaveSplitter WS-Q28-AOCLC102 WS-Q28-AOCLC103 100G QSFP28 AOC Active Optical Cable Image 1 imageWaveSplitter WS-Q28-AOCLC102 WS-Q28-AOCLC103 100G QSFP28 AOC Active Optical Cable Image 2 imageWaveSplitter WS-Q28-AOCLC102 WS-Q28-AOCLC103 100G QSFP28 AOC Active Optical Cable Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:15
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$199.00

Interface Types:QSFP
Electrical Interface:QSFP28 - 100Gbps

Description

WaveSplitter WS-Q28-AOCLC102 / WS-Q28-AOCLC103 100Gbps QSFP28 10M / 33FT Active Ethernet Optical Cable - Brand New

WaveSplitter WS-Q28-AOCLC102 / WS-Q28-AOCLC103 100Gbps QSFP28 10M / 33FT Active Ethernet Optical Cable - Brand New

Quad Small Form-Factor Pluggable 28 (QSFP28) active optical cables (AOC) are high- performance active optical cable with bi-directional signal transmission and aggregate 100-Gbps bandwidth for both InfiniBand EDR and Ethernet 100G-SR4 applications. Compared to conventional copper cables, longer and lighter optical cables enable the ease of complicated data-center cablings. The AOCs utilize multimode fiber with 850-nm VCSELs and PIN PDs. The certificated cables have superior signal integrity and biterror-rate, which enables reliable operation performance.

  • Compliant with 100GBASE-SR4 and CAUI-4 specification per IEEE 802.3bm
  • Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
  • Supports 100 Gbps data rate links up to 30m/70m/100 m via OM2/OM3/OM4
  • Power consumption of max 2.5W
  • Hot pluggable electrical interface
  • Using standard 12/8 lane optical fiber with 3-mm round cable
  • 0 to 70°C case temperature operating range
  • RoHS Compliant (lead-free)
  • Applications:
    • Ethernet for 100GBASE-SR4
    • InfiniBand EDR, FDR, & QDR
    • HPC Interconnects
    • Proprietary Interconnections

Alt. MPN: WS-Q28-AOCXCYYZ

Specifications

  • Features:
  • Hot Pluggable QSFP28 Cable End
  • Supports 25.78125Gb/s per channel
  • Low Power Dissipation, Max 1.8W Each End
  • Operating Case Temperature: 0 ºC ~70 ºC
  • SFF-8636 Management Interface
  • SFF-8661: Pluggable Module
  • SFF-8679: General Electrical
  • GR-468: Reliability Qualification
  • IEEE 802.3bm: Physical Layer Specifications and Management Parameters
  • ROHS-6: Environment Safety
  • Cable length : 10M / 33FT
Click here to view the manufacturer's item description/brochure

Alternate MPNs: WS-Q28-AOCLC103

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
