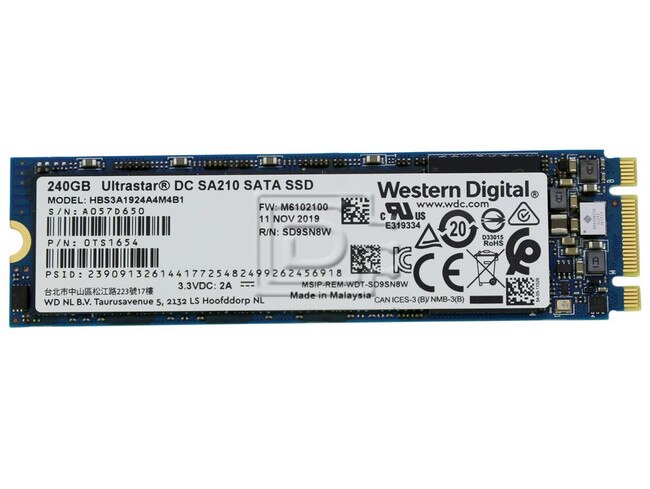

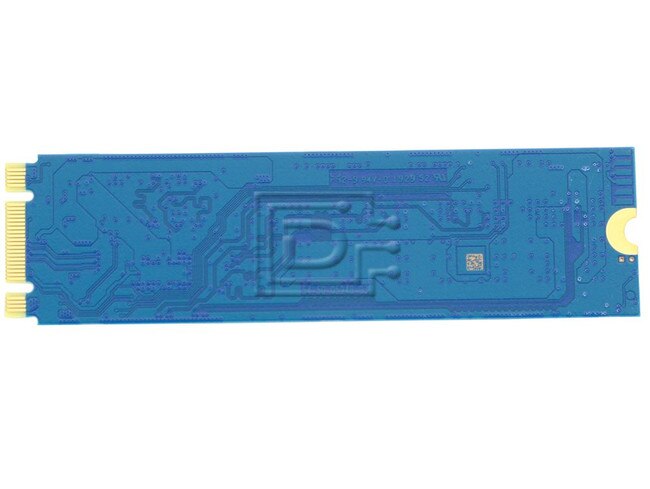

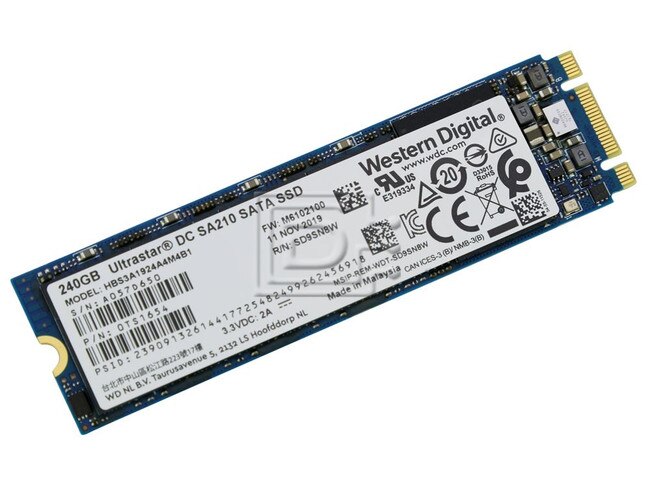

Western Digital DC SA210 0TS1654 / HBS3A1924A4M4B1 240GB M.2 2280 SSD

Western Digital Part #/MPN: 0TS1654

DiscTech Item #: WDC-0TS1654-BN-OE


$39.00
$39.00

Capacity: 240GB

Speed: Solid State Memory

Interface Types: SATA, SATA M.2 NGFF

Form Factor: M.2 x 80mm

Sector Size: 512 / 512e

Sustained Throughput: 510/475

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Consumer / Value

Western Digital DC SA210 0TS1654 / HBS3A1924A4M4B1 240GB M.2 2280 SATA Solid State Drive - Brand New

Western Digital DC SA210 0TS1654 / HBS3A1924A4M4B1 240GB M.2 2280 SATA Solid State Drive - Brand New

Alt. P/N: P21457-001 HBS3A1924A4M4B1

The Right Choice for Server Boot Drives
Built on Western Digital 64-layer 3D NAND, the Ultrastar® SA210 SATA SSD is Western Digital first SSD purpose-built for enterprise boot and edge applications. The Ultrastar DC SA210 offers outstanding value and provides the best alternative to enterprise boot HDDs. With capacities as low as 120GB and up to 1.92TB, you can choose the right capacity point for your operating system and logging requirements. End-to-end data protection and LDPC error correction mechanisms provide greater reliability and help support a five-year warranty. Ultrastar DC SA210 has been validated to operate with Windows Server® 2012/2016 and various versions of the enterprise Linux® operating systems.

A Natural SSD for Edge Computing & Read-intensive Environments
Edge computing is pushing applications, like content delivery, away from centralized data centers and closer to those who are consuming the content. In such environments, data access speed is essential. The Ultrastar DC SA210 delivers up to 510MiB/s sequential read throughput and 64K IOPS random read performance to unleash the full potential of your server grade system and its high-end CPU capabilities. Such applications can also benefit from higher capacity offerings.

The Ultrastar SA210 is designed to be cost-optimized and offer sufficient endurance for read-intensive environments. It is architected to minimize the probability of data loss due to unexpected power loss yet still be a cost-effective alternative to traditional enterprise SSDs that rely on costly hold-up capacitors.

The Ultrastar DCSA210 is designed to be cost-optimized and offer sufficient endurance for read-intensive environments. It is architected to minimize the probability of data loss due to unexpected power loss yet still be a cost-effective alternative to traditional enteprise SSDs that rely on costly hold-up capacitors.

To address encryption, The Ultrastar DC SA 210 supports self-encryption drive (SED) capability compliant with TCG OPAL 2.01 SSC security protocol support to help protect data from unauthorized access. The DC SA210 also includes Instant Secure Erase functionality to speed and simplify drive redeployment and retirement.

M.2 and 2.5-inch Form Factor Support
Ultrastar DC SA210 supports the M.2 2280 form factor, which is becoming much more widely implemented within 1U and blade servers and broadly adopted by motherboard manufacturers. The M.2 means a much smaller physical footprint and is quickly becoming the de-facto SSD-only form factor. Additionally, the Ultrastar DC SA210 is available in 2.5-inch to serve as a true drop-in replacement for mechanical HDDs. Both form factors are offered across all five capacity points, from the smallest at 120GB to the largest at 1.92TB.

Features & Benefits

Performance

  • Feature / Function
    • Optimized performance for read-intensive applications
  • Benefits
    • Increased lifecycle, reducing total cost of ownership

Reliability

  • Feature / Function
    • LDPC error correction mechanisms and data path protection
  • Benefits
    • Adds additional reliability to your data

Rigorous Testing

  • Feature / Function
    • Server & software interoperability
  • Benefits
    • Western Digital system integration testing ensures quality and broad platform compatibility

Security

  • Feature / Function
    • SED functionality
  • Benefits
    • TCG Opal 2.0.1 and Instant Secure Erase help keep your data safe

Highlights

  • Enterprise-grade SATA 6Gb/s SSD designed specifically for boot & edge applications
  • Capacity points of 120GB1 to 1.92TB in a 7mm 2.5-inch or M.2 2280 form factor
  • Optimized sustained performance
    • Sequential read throughput up to 510MB/s
    • Sequential write throughput up to 475MB/s
  • 2 million hours MTBF4
  • Self-encrypting TCG OPAL 2.01 with Instant Secure Erase

Applications and Workloads

  • Enterprise Boot
  • Video Streaming, Video-on-Demand
  • Audio Streaming
  • File Servers
  • Read-intensive Applications



Compatibility:

This drive is compatible with any laptop/desktop or server that accepts M.2 2280 SATA drives.


Similar and comparable to: WDS240G2G0B WDS250G2B0B


Western Digital Ultrastar DC SA210
Model Number0TS1654
Alt Model NumberHBS3A1924A4M4B1
Data Security Mode
  • Boot/Edge Use
  • InterfaceSATA 6Gb/s 2.5-inch,
    Configuration
    Interface SATA 6Gb/s
    Capacity240GB
    Form FactorM.2 2280
    Endurance
  • Drive Writes per Day (DW/D)


  • Terabytes Written (TBW, JESD219 workload)

  • 0.1 (JESD219 Workloads)
  • 0.7 (128KiB Sequential Workloads)

  • 43
  • Sustained Performance
    Sequential Read (max MB/s, 128KiB)Up to 510
    Sequential Write (max MB/s, 128KiB)Up to 475
    Random Read (max IOPS, 4KiB, QD32)Up to 64K
    Random Write (max IOPS, 4KiB, QD32)Up to 5K
    Mixed Random Read/Write (max IOPS)
  • 70%R/30%W, 4KiB, QD32
  • 90%R/10%W, 4KiB, QD32

  • Up to 11K
  • Up to 21K
  • Latency (ms, 4KiB Random Read QD1, typical)0.15
    Reliability
    Error Rate in bits read1 in 10e17
    MTBF2M hours
    Annual failure rate (AFR)0.44%
    Data Retention3-month at 40°C
    Power
    Requirement (DC +/- 5%)3.3V

    Physical
    z-height (mm, max)2.23
    Dimensions (width x depth, mm)22.80
    Wt. (g, max)
    7

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: P21457-001 HBS3A1924A4M4B1

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
