Western Digital 1TB SATA Hard Drive
$68.00
| Capacity: | 1TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 64MB |
Description

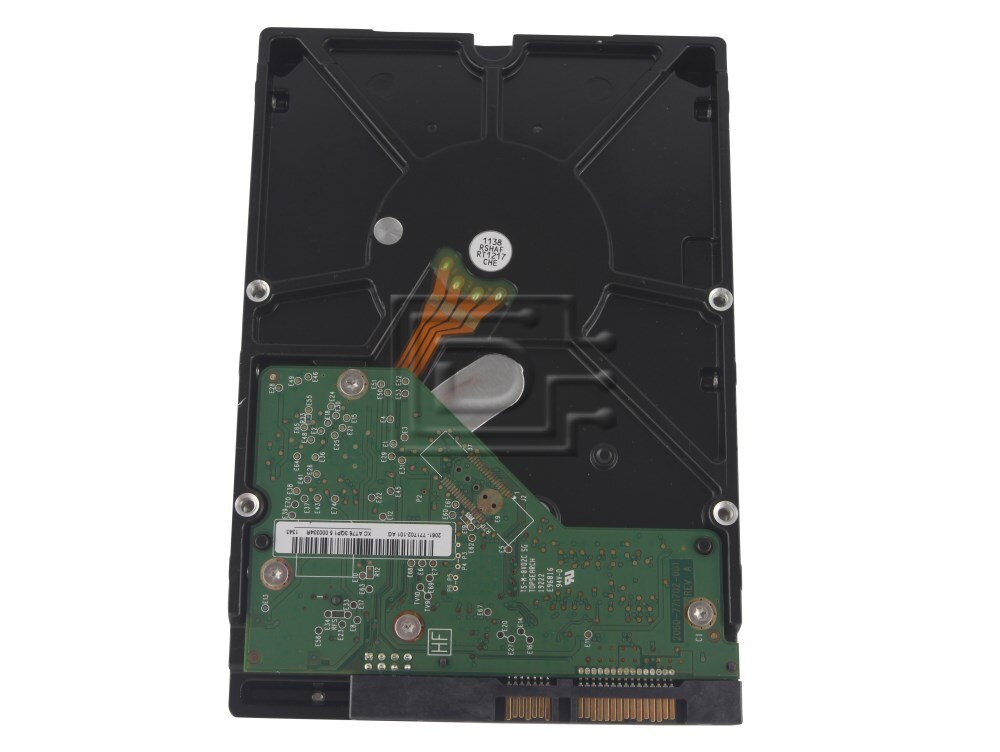

Western Digital WD1003FBYX 1TB 3.5in 3Gbps 7.2K RPM RE4 Enterprise SATA HDD - New Pull
Western Digital WD1003FBYX 1TB 3.5" 3.0 Gbps 7200 RPM RE4 Enterprise Serial Advanced Technology Attachment Hard Disk Drive - New Pull
WD RE4 Enterprise SATA Hard Drives - Ideal for servers, video surveillance, and other demanding write-intensive applications, WD RE4 7200 RPM Enterprise SATA hard drives offer up to 2 TB capacity, 64 MB cache, 4th generation vibration tolerance.
Product Benefits
- Massive capacity WD RE4 Enterprise SATA drives are available with up to 2 TB of cavernous capacity.
- Dual processor With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family.
- RAFF™ Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
- Dual actuator technology A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB only)
- StableTrac™ The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. (1 TB and larger drives only)
- IntelliSeek™ Calculates optimum seek speeds to lower power consumption, noise, and vibration.
- Multi-axis shock sensor Automatically detects the subtlest shock events and compensates to protect the data.
- RAID-specific, time-limited error recovery (TLER) Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
- NoTouch™ ramp load technology The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
- Thermal extended burn-in test Each drive is put through extended burning testing with thermal cycling to ensure reliable operation.
- Third generation dynamic fly height Each read-write head’s fly height is adjusted in real time for optimum reliability.
- 24x7 reliability With 1.2 million hours MTBF (tested at 100% duty cycle), these drives have the highest available reliability rating on a high-capacity drive.
MDL: WD1003FBYX-01Y7B0
Compatibility:
This drive is compatible with any server that accepts 3.5"x1.0" (LFF Hard Drive) SATA Drives.
Specifications
| SPECIFICATIONS | |
|---|---|
| Model number | WD1003FBYX |
| Capacity | 1TB |
| Interface | SATA 3Gb/s |
| User sectors per drive | 1,953,525,169 |
| Native command queuing | Yes |
| SATA latching connector | Yes |
| Form factor | 3.5-inch |
| PERFORMANCE | |
| Data transfer rate (max) Buffer to host Host to/from drive (sustained) | 3 Gb/s 138 MB/s |
| Cache (MB) | 64 |
| Rotational speed (RPM) | 7200 |
| Average drive ready time (sec) | 18 |
| CONFIGURATION/ORGANIZATION | |
| Head/disks | 4/2 |
| Bytes per sector (STD) | 512 |
| RELIABILITY/DATA INTEGRITY | |
| Load/unload cycles | 600,000 |
| Non-recoverable read errors per bits read | 1 in 10e15 |
| POWER MANAGEMENT | |
| 12VDC (A, max) | 1.8 |
| Average powere requirements (W) Read/Write Idle Standby Sleep | 7.9 5.9 0.7 0.7 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature (°C) Operating Non-operating | 5 to 55 -40 to 70 |
| Shock (Gs) Operating (2 ms, read/write) Operating (2 ms, read) Non-oerating (2 ms) | 28 33 300 |
| Average acoustics (dBA) Idle mode Performance seek mode Quiet seek mode | 28 33 29 |
| PHYSICAL DIMENSIONS | |
| Height (in/mm, max) | 1.028/26.1 |
| Length (in/mm, max) | 5.787/147 |
| Width (in/mm, ± .01 in.) | 4/101.6 |
| Weight (lb./g, ± 10%) | 1.49/680 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: WD1003FBYX-01Y7B0
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
