Western Digital Part #/MPN: WD10JUCT
DiscTech Item #: WDC-WD10JUCT-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 1TB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: 144
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

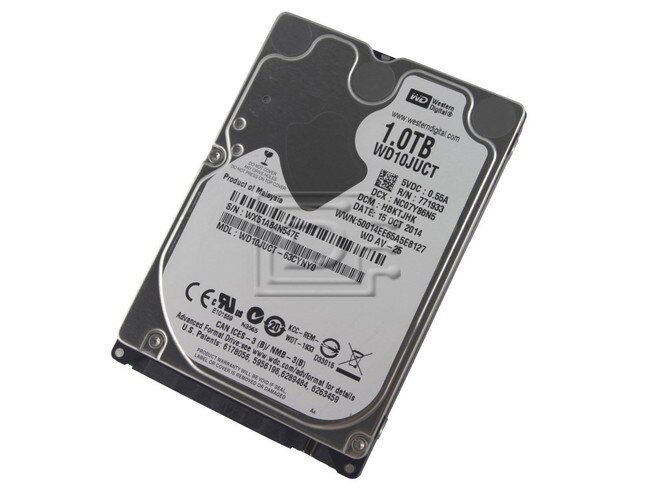

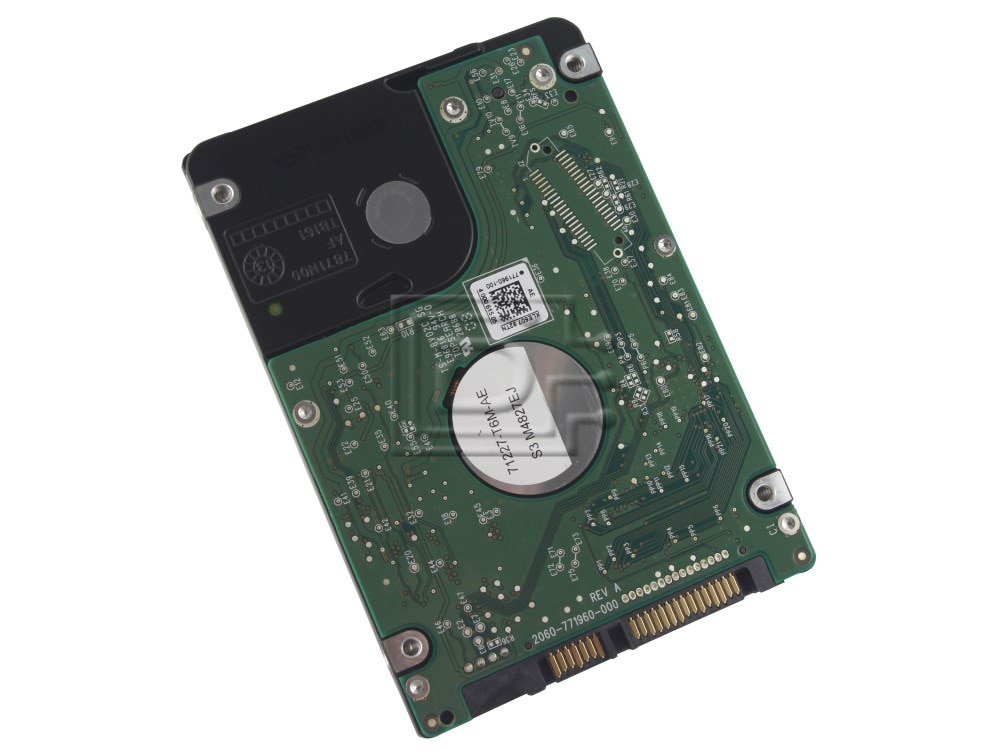

Western Digital AV-25 WD10JUCT 1TB / 1000GB 2.5" 3Gbps 5.4K SATA Hard Drive - Brand New
Western Digital AV-25 WD10JUCT 1TB / 1000GB 2.5" 3.0Gbps 5,400 RPM Serial ATA Hard Drive - Brand New
WD AV-25
WD AV-25 2.5-inch SATA hard drives are specially engineered to offer cool quiet operation while providing maximum reliability in 24x7 always-on environments. With support for up to five simultaneous HD video streams, these drives are perfect for DVRs, set-top boxes and digital video surveillance.
PRODUCT FEATURES
24x7 reliability
These drives are designed to last in high temperature alwayson streaming digital audio/video environments such as PVR/DVR, IPTV, and video surveillance systems.
Advanced Format technology
Leading edge technology delivers improved video quality and AV performance through enhanced error correction capability.
SilkStream™ technology
Optimized for smooth, continuous digital video playback of up to five simultaneous HD streams. SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.
Ultra-cool operation
A cool drive is a more reliable drive. WD continues to develop new and innovative ways to keep drives cool while they are operating.
Quiet
Noise levels have been minimized to less than one sone - virtually below the threshold of human hearing.
Low power consumption
The drive draws less than 2 Watts while operating and a mere 4.75 Watts during spin up.
1 million hours MTBF
Best-in-class reliability for small form-factor AV storage.
Preemptive Wear Leveling (PWL)
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm SATA drives.
| Specifications | |
|---|---|
| Model number | WD10JUCT |
| Formatted capacity | 1,000,204 MB |
| User sectors per drive | 1,953,525,168 |
| Form factor | 2.5-inch |
| Advanced Format (AF) | Yes |
| RoHS compliant | Yes |
| Performance | |
| Data transfer rate (max) Buffer to host Host to/from drive (sustained) | 3 Gb/s 144 MB/s |
| Cache (MB) | 16 |
| Rotational speed (RPM) | 5400 |
| Reliability/Data Integrity | |
| Load/unload cycles | 600,000 |
| Non-recoverable read errors per bits read | <10 in 10^14 |
| Power Management | |
| Average power requirements (W) Read/Write Idle Standby and Sleep | 1.4 0.6 0.2 |
| Environmental Specifications | |
| Temperature (°C) Operating Non-operating | 0 to 60 -40 to 65 |
| Shock (Gs) Operating (2 ms, read) Non-operating (2 ms) | 400 1000 |
| Acoustics (dBA) Idle Seek (average) | 24 25 |
| Physical Dimensions | |
| Height (in./mm, max) | 0.374/9.50 |
| Length (in./mm, max) | 3.94/100. |
| Width (in./mm, ± .01 in.) | 2.75/69.85 |
| Weight (lb./kg, ± 10%) | 0.25/0.12 |
Click here to view the manufacturer's item description/brochure
