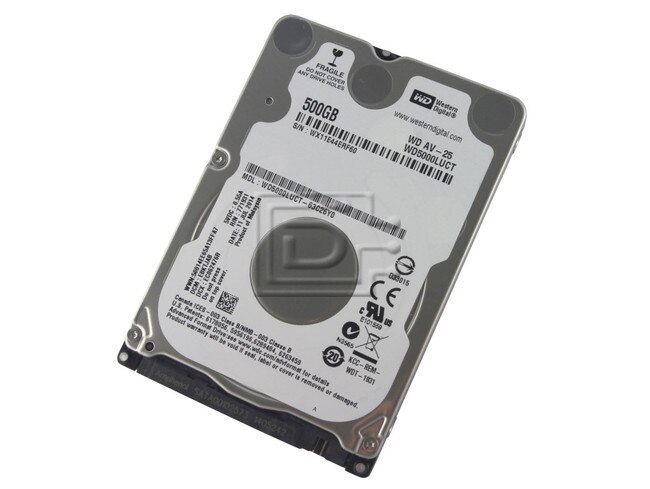

Western Digital AV-25 WD5000LUCT 500GB SATA Hard Drive

Western Digital Part #/MPN: WD5000LUCT

DiscTech Item #: WDC-WD5000LUCT-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 500GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Sustained Throughput: 136

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

Western Digital AV-25 WD5000LUCT 2.5"  500GB 3Gbps 5.4K SATA Hard Drive - Brand New

Western Digital AV-25 WD5000LUCT 2.5"  500GB 3Gbps 5.4K SATA Hard Drive - Brand New

WD AV 2.5-inch (formerly WD AV-25) hard drives are optimized with SilkStream™ technology to capture data from up to 12 simultaneous HD video streams. With 24x7 operation, low temperature, and best-in-class reliability, WD AV 2.5-inch hard drives are ideal for DVR/PVR, IPTV and digital video surveillance applications requiring smaller form factor hard drives.


This drive is compatible with any system that acceptes 2.5" SATA 9.5mm drives

Model numbersWD5000LUCT
Formatted capacity500,107 MB
User sectors per drive976,773,168
Advanced Format (AF)Yes
ROHS CompliantYes
Cache Buffer16MB
Form factor3.5-inch
RoHS compliantYes
Data transfer rate (max)
Buffer to host (SATA)
Host to/from drive (sustained)

SATA 3 Gb/s
110 MB/s
Cache (MB)16
Data Transfer - Buffer to host3.0 Gb/s
Data Transfer -  Host to Drive (sustained)136 MB/s
Rotational Speed5400 rpm
Reliability/Data Integrity
Load/unload cycles600,000
Non-recoverable read errors per bits read<1 in 1014
Physical Dimensions
Height (in./mm, max).374/9.5
Length (in./mm, max)3.94/100.20
Width (in./mm, ± .01 in.)2.75/69.85
Weight (lb./kg, ± 10%)0.97/0.44

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
