Western Digital AV-GP WD10EVDS 1TB SATA Hard Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 1TB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 8MB |
Description

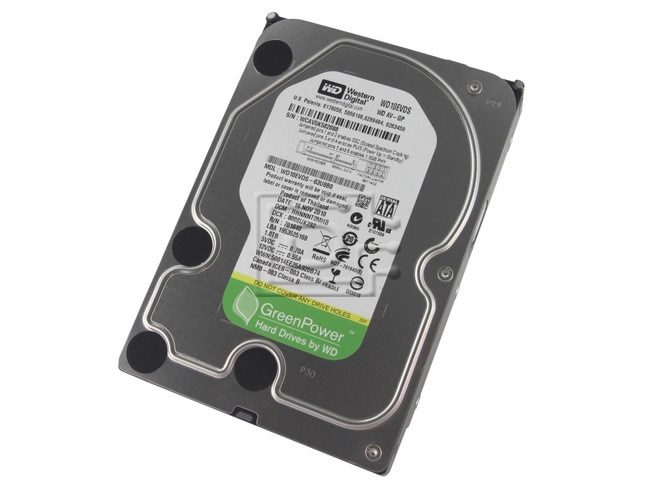

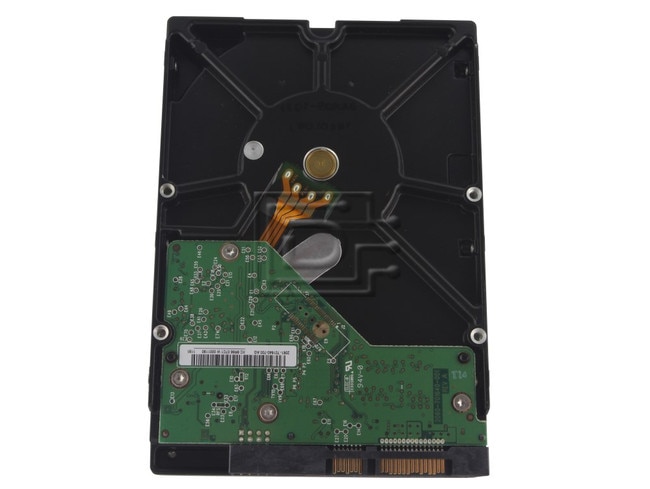

Western Digital WD10EVDS 1TB 3.5" 3Gbps IntelliPower AV-GP SATA HDD - Refurbished
Western Digital WD10EVDS 1TB 3.5" 3.0 Gbps Green Power AV-GP Serial Advanced Technology Attachment Hard Disk Drive - Refurbished
Product Features
24x7 Reliability
These drives are designed to last in always-on, streaming digital audio/ video environments such as PVR/DVR, DVR recorders, and surveillance video recorders.
Reduced Power Consumption
With the combination of WD’s IntelliSeek, IntelliPark, and IntelliPower technologies, WD has reduced power consumption by up to 40 percent, compared to competitors’ drives. Lower power means less heat and better reliability
Quiet
Noise levels have been minimized to less than one sone – virtually below the threshold of human hearing
SilkStream™
Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams. SilkStream in compatible with the ATA steaming command set so CE customers can use standard streaming management and error recovery options.
IntelliSeek™
Calculates optimum seek speeds to lower power consumption, noise, and vibration.
IntelliPower™
A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance.
IntelliPark™
Parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Preemptive Wear Leveling (PWL)
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.
1 Million Hours MTBF
Best-in-class reliability for mainstream 3.5-inch form-factor AV storage
Specifications
| SPECIFICATIONS | |
|---|---|
| Model Number | WD10EVDS |
| Capacity | 1TB/1000GB |
| Formatted Capacity | 1,000,204 MB |
| User Sector per Drive | 1,953,525,168 |
| Advanced Format (AF) | No |
| Native Command Queuing | Yes |
| SATA Latching Connector | Yes |
| Form Factor | 3.5-inch |
| PERFORMANCE | |
| Data Transfer Rate (max) Buffer to Host (SATA) Host to/from Drive (Sustained) | 3 Gb/s 111 MB/s |
| Cache (MB) | 8 |
| Average Latency (ms) | 4.2 |
| Rotational Speed (RPM) | IntelliPower |
| Average Drive Ready Time (sec) | 14.3 |
| RELIABILITY/DATA INTEGRITY | |
| Load/Unload Cycles | 300,000 |
| Non-Recoverable Read Errors | <1 in 10e14 |
| POWER MANAGEMENT | |
| 12VDC (A, max) | 1.671 |
| Average Power Requirements (W) Read/Write Idle Standby Sleep | 4.9 4.2 0.4 0.4 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature (°C) Base Casting (max) Operating Non-Operating | 70 0 to 60 -40 to 70 |
| Shock Operating (2 ms, read/write) Operating (2 ms, read) Non-operating (2 ms) | 30 65 300 |
| Average Acoustics (dBa) Idle Mode Quiet Seek Mode | 24 25 |
| PHYSICAL DIMENSIONS | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb./kg, ± 10%) | 1.32/0.60 |
Click here to view the manufacturer's item description/brochure
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
