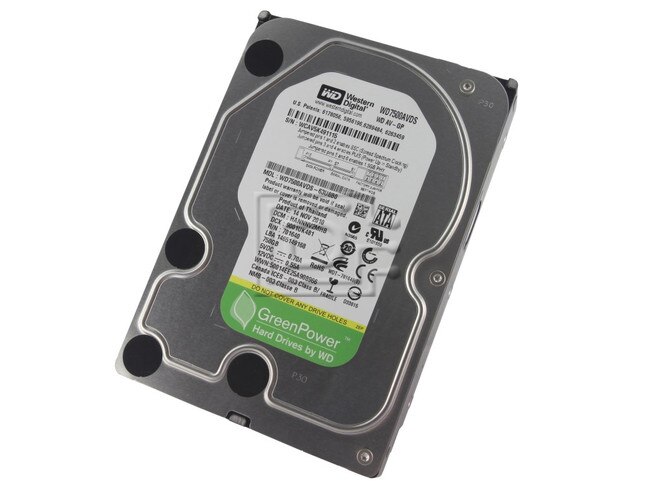

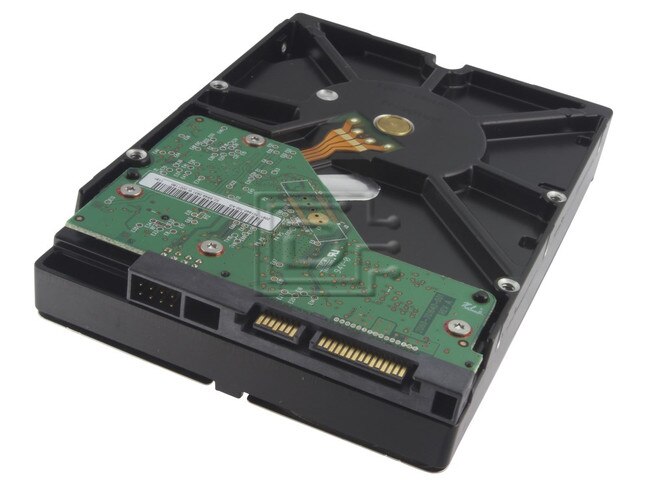

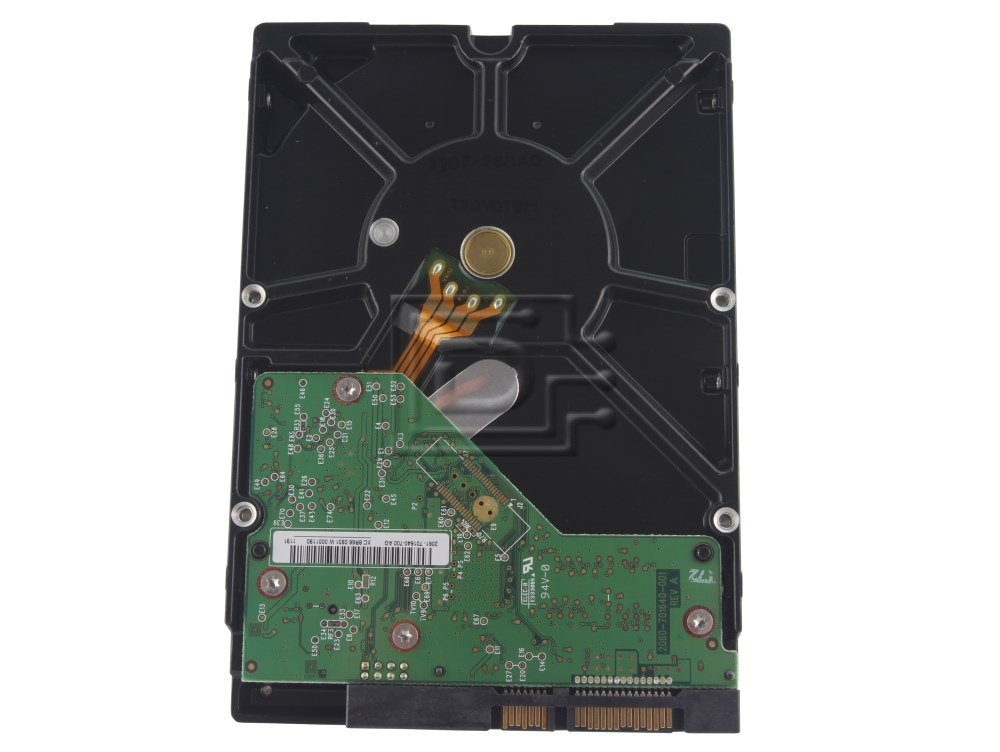

Western Digital AV-GP WD7500AVDS 750GB SATA Hard Drive

Western Digital Part #/MPN: WD7500AVDS

DiscTech Item #: WDC-WD7500AVDS-RF-OE


Capacity: 750GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 110

Average Seek Time: 4.2

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 32MB

Western Digital AV-GP WD7500AVDS 750GB 3Gbps IntelliPower SATA Hard Drive - Refurbished

Western Digital AV-GP WD7500AVDS 750GB 3.0Gbps IntelliPower Serial ATA Hard Drive - Refurbished

Power-saving Hard Drives

Power-conserving WD AV-GP SATA hard drives take advantage of WD GreenPower Technology™ to meet the extreme requirements of demanding audio and video environments. With power reduction of up to 40 percent, they deliver cool and quiet operation and reliability perfect for audio video applications such as PVRs, DVRs, set-top boxes (STBs) as well as surveillance video recording.

  • Long-term reliability – These drives are designed to last in high temperature, always-on, streaming digital audio/video environments.
  • Reduced power consumption – With the combination of WD’s IntelliSeek™, IntelliPark™, and IntelliPower™ technologies, WD has reduced power consumption by up to 40 percent compared to competitors’ drives.
  • Quiet – Noise levels have been optimized to less than one sone* – virtually below the threshold of human hearing.

  • Compatibility:

    The Western Digital WD7500AVDS is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.

Model numberWD7500AVDS
Formatted capacity750,156 MB
User sectors per drive1,465,149,168
Native command queuingYes
SATA latching connectorYes
Actuator latch/auto parkYes
Form factor3.5-inch
RoHS compliantYes
Data transfer rate (max)
  • Buffer to host (SATA)
  • Host to/from drive (sustained)

  • SATA 3 Gb/s
  • 110 MB/s
  • Cache (MB)32
    Average latency (ms)4.2
    Rotational speed (RPM)IntelliPower
    Average drive ready time (sec)14.3
    Bytes per sector (STD)512
    Reliability/Data Integrity
    Load/unload cycles300,000
    Non-recoverable read errors per bits read<1 in 1015
    Power Management
    12VDC (A, max) 1.671
    Average power requirements (W)
  • Read/Write
  • Idle
  • Standby
  • Sleep

  • 4.9
  • 4.2
  • 0.4
  • 0.4
  • Environmental Specifications
    Temperature (°C)
  • Base casting (max)
  • Operating
  • Non-operating

  • 70
  • 0 to 60
  • -40 to 70
  • Shock (Gs)
  • Operating (2 ms, read)
  • Operating (2 ms, read/write)
  • Non-operating (2 ms)

  • 30
  • 60
  • 300
  • Average acoustics (dBA)
  • Idle mode
  • Quiet seek mode

  • 24
  • 25
  • Physical Dimensions
    Height (in./mm, max) 1.028/26.1
    Length (in./mm, max) 5.787/147
    Width (in./mm, ± .01 in.)4/101.6
    Weight (lb./kg, ± 10%)1.32/0.60

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech


    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
