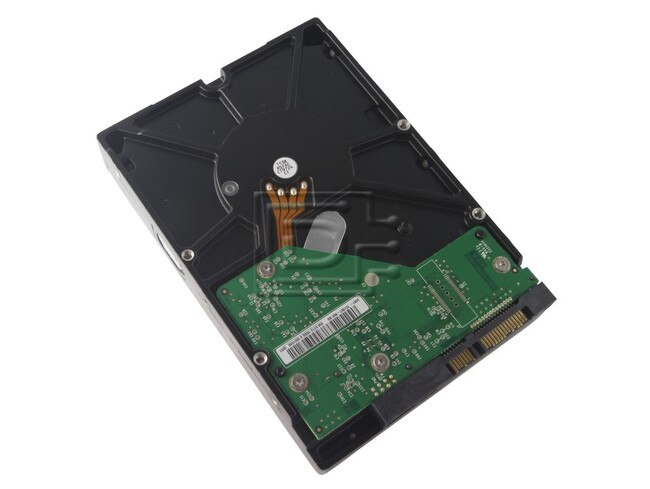

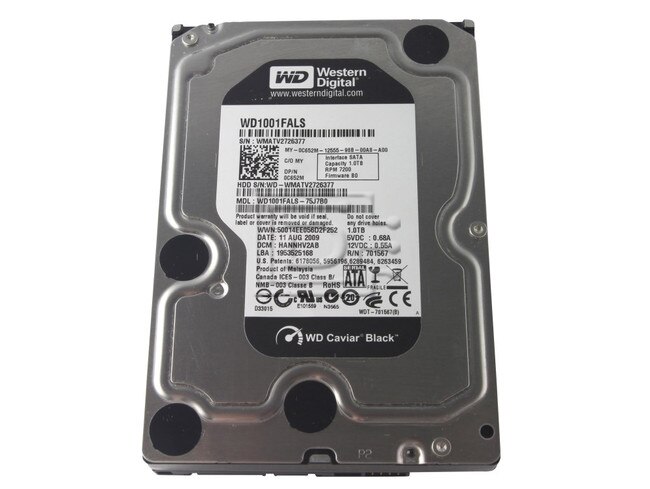

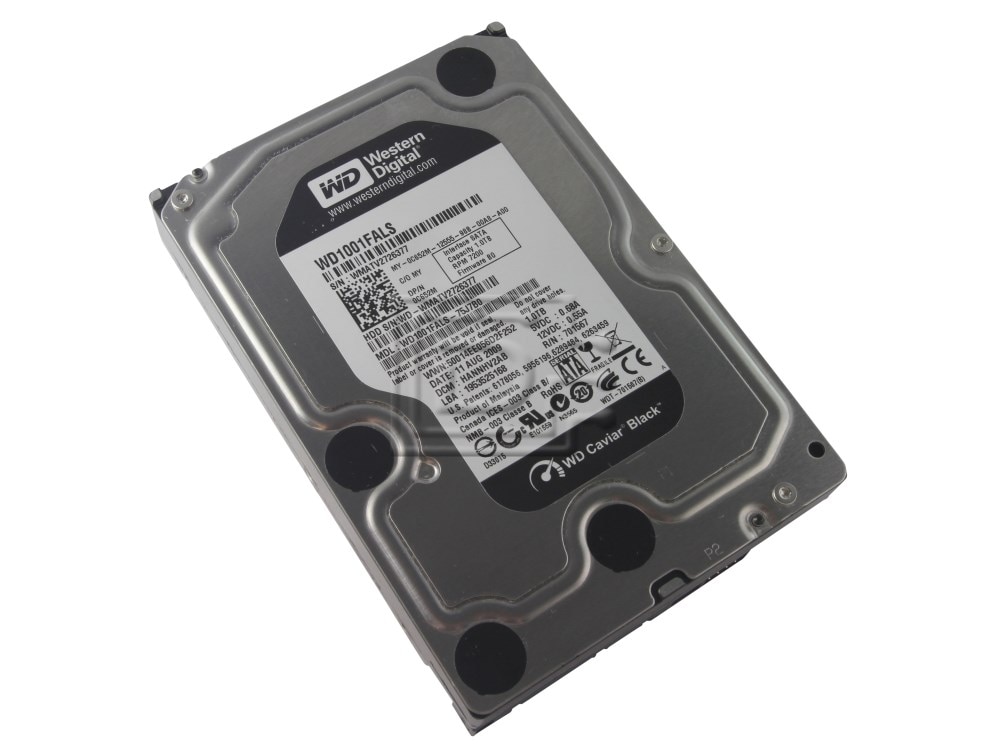

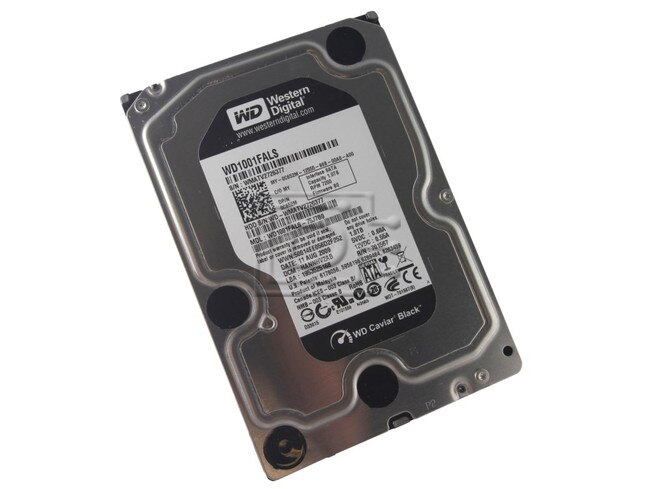

Western Digital Caviar Black WD1001FALS SATA Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD1001FALS

DiscTech Item #: WDC-WD1001FALS-RF-OE


Capacity: 1TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 8.9ms

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 32MB

Western Digital Caviar Black WD1001FALS 1000GB / 1TB 7.2K SATA 3.0Gb/s 3.5" Hard Drive - Refurbished

WD Caviar Black drives combine a high performance electronics architecture with a rock solid mechanical

architecture to deliver the perfect storage solution for your fully-loaded PC or maxed out gaming machine. Cool drive operation, no-touch head technology, and leading-edge vibration protection ensure enhanced reliability and sustained data throughput.

Dual processor - Twice the processing power to maximize performance.

Colossal cache - Bigger, faster cache of up to 64 MB means faster performance.

Rock Solid Mechanical Architecture

Dual actuator technology - A head positioning system with two actuators that improves positional accuracy over

the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator

principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree

of accuracy. (2 TB only)

StableTrac - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters

for accurate tracking, during read and write operations.

NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear

to the recording head and media as well as better drive protection in transit.

Massive Capacity - WD Caviar Black SATA drives are available in capacities

up to 2 TB.

Compatible - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab™ and Mobile

Compatibility Lab to give our customers confidence that our drives will work in their systems.


This drive is compatible with any computer/server that accepts 3.5" SATA hard drives.

Performance Specifications
 Rotational Speed7200 rpm
 Buffer Size32 MB
*x A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, GreenPower drives consume less current during start up allowing more drives to spin up simultaneously resulting in faster system readiness.
Seek Times
 Read/Write Seek Time8.4 ms
Transfer Rates
 Buffer To Host (Serial ATA)3 Gb/s (Max)
Physical Specifications
 Formatted Capacity1,000,204 MB
 Capacity1 TB
 InterfaceSATA 3 Gb/s
 User Sectors Per Drive1,953,525,169
Physical Dimensions
 Height1.028 Inches
 Depth5.787 Inches
 Width4.00 Inches
 Weight1.61 Pounds
 Height26.1 mm
 Depth147 mm
 Width101.6 mm
 Weight0.73 kg
Environmental Specifications
 Operating Shock (Read)65G, 2 ms
 Non-operating Shock250G, 2 ms
 Idle Mode24 dBA (average)
 Performance Seek Mode33 dBA (average)
 Quiet Seek Mode29 dBA (average)
  Linear20-300 Hz, 0.75 G (0 to peak)
  Random0.004 g²/Hz (10 to 300 Hz)
Electrical Specifications
Current Requirements
 12 VDC
  Read/Write340 mA
  Idle254 mA
  Standby6 mA
  Sleep6 mA
 5 VDC
  Read/Write675 mA
  Idle195 mA
  Standby180 mA
  Sleep180 mA
 Power Dissipation
  Read/Write7.40 Watts
  Idle4.00 Watts
  Standby0.97 Watts
  Sleep0.97 Watts

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
