Western Digital Part #/MPN: WD7500AAKS
DiscTech Item #: WDC-WD7500AAKS-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 750GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 8.9 / 10.9
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

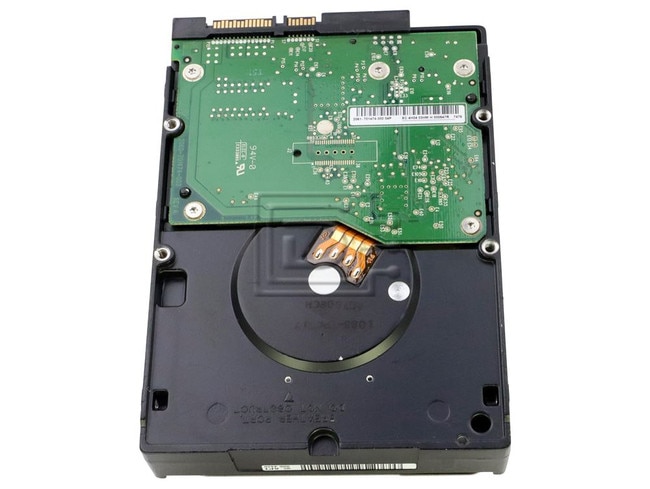

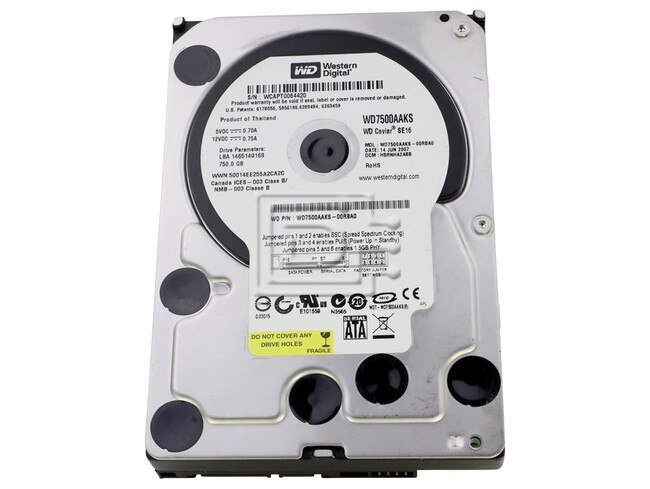

Western Digital Caviar SE16 WD7500AAKS 750GB 7.2K SATA Hard Drive - Refurbished
WD Caviar SE16 drives combine 16 MB cache with 3 Gb/s transfer rate for lightning-fast performance in demanding desktop and workstation applications. Technologically advanced acoustics minimize noise, and cooldrive operation and enhanced reliability features help protect the drive andthe data stored on it.
Product Features
Top performance for Windows® Vista™ — The WD Caviar SE16 500 and 750 GB SATA drives received a 5.9, the highest possible score on the Windows Experience Index.
16 MB Cache — Bigger cache means faster performance. A massive 16 MB cache combined with advanced acoustic and power-reducing technologies make these ultra-fast drives the perfect solution for the fully loaded PC.
Perpendicular Magnetic Recording (PMR) — The latest generation of WD Caviar SE16 drives employs PMR technology to achieve even greater areal density. (750 GB only)
IntelliSeek™ — Calculates optimum seek speeds to lower power consumption, noise, and vibration.
SecurePark™ — Parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface, resulting in improved long-term reliability due to less head wear, and improved non-operational shock tolerance.
StableTrac™ — The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. (750 GB only)
Compatibility:
This drive is compatible with any computer that accepts 3.5" SATA drives.
| Physical Specifications | |
| Formatted Capacity 1 | 750,156 MB |
| Interface | SATA |
| Actuator latch/auto park | Yes |
| Bytes Per Sector | 512 |
| User Sectors Per Drive | 1,465,149,168 |
| Servo Type | Embedded |
| Performance Specifications | |
| Average Seek 1 - Read - Write | 8.9 ms average 10.9 ms average |
| Track-to-Track Seek | 2.0 ms average |
| Full Stroke Seek | 21 ms average |
| Index Pulse Period | 8.3 ms (nominal) |
| Average Latency | 4.2 ms (nominal) |
| Rotational Speed | 7200 RPM (nominal) |
| Buffer Size | 16 MB |
| Data Transfer Rate (maximum) - Buffer to Host - Buffer to Disk | 100 MB/s (Mode 5 Ultra ATA) 66.6 MB/s (Mode 4 Ultra ATA) 33.3 MB/s (Mode 2 Ultra ATA) 16.6 MB/s (Mode 4 PIO) 16.6 MB/s (Mode 2 multi-word DMA) 748 Mbits/s maximum |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
