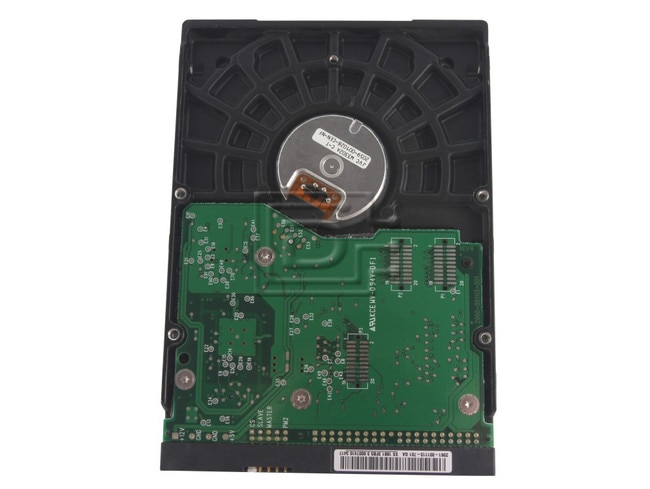

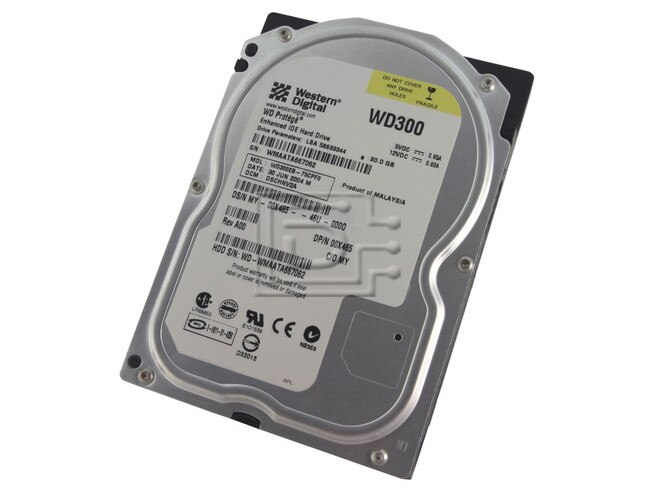

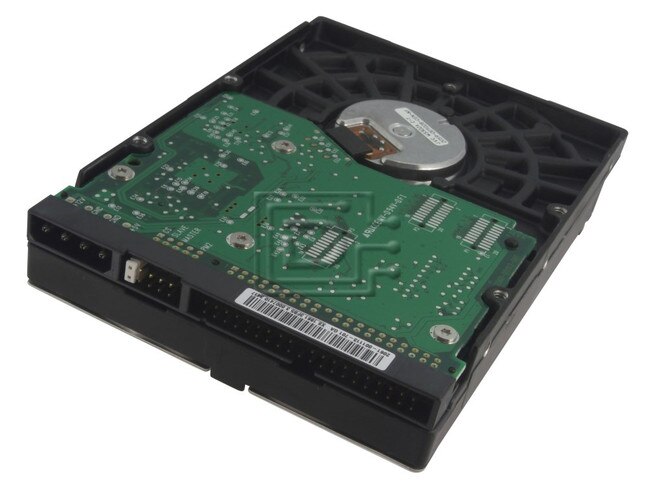

Western Digital Caviar WD300EB 30GB 5.4K 3.5" EIDE Hard Drive

Western Digital Part #/MPN: WD300EB

DiscTech Item #: WDC-WD300EB-RF-OE


$55.00
  • Special Order - Ships in 5-10 business days
$55.00

Capacity: 30GB

Speed: 5.4K RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 12.8 / 13.8

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 2MB

Western Digital Caviar 30GB 5.4K 3.5" EIDE Hard Drive WD300EB - Refurbished

Western Digital Protege 30GB 5400 RPM 3.5-inch Enhanced IDE Hard Drive WD300EB - Refurbished

Physical Specifications
Capacity30GB
Interface 40-pin EIDE
Actuator Type Rotary Voice Coil
Bytes Per Sector 512
Servo Type Embedded


Performance Specifications
Average Seek 1
- Read
- Write
12.8 ms average
13.8 ms average
Track-to-Track Seek 2.0 ms average
Full Stroke Seek 28.5 ms average
Index Pulse Period 8.3 ms (nominal)
Average Latency 4.2 ms (nominal)
Rotational Speed5400 RPM (nominal)
Buffer Size 2 MB
Data Transfer Rate (maximum)
- Buffer to Host





- Buffer to Disk

100 MB/s (Mode 5 Ultra ATA)
66.6 MB/s (Mode 4 Ultra ATA)
33.3 MB/s (Mode 2 Ultra ATA)
16.6 MB/s (Mode 4 PIO)
16.6 MB/s (Mode 2 multi-word DMA)

695 Mbits/s maximum

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 00X465

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

1 Year DiscTech Warranty
