Western Digital Part #/MPN: WD5002ABYS
DiscTech Item #: WDC-WD5002ABYS-RF-OE
- Refurbished
- Warranty:1 Year DiscTech
- Special Order - Ships in 5-10 business days
Enterprise Grade
Capacity: 500GB
Speed: 7.2K RPM
Interface Types: SATA
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 300 - 3Gbps
On-Board Cache: 16MB

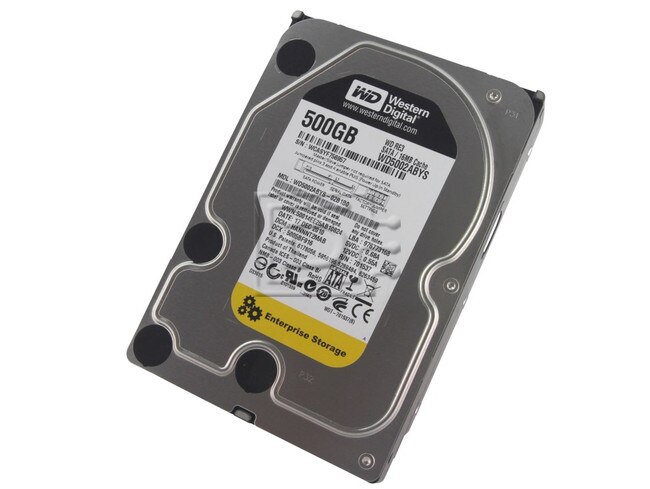

Western Digital Caviar RE3 WD5002ABYS 500GB 7.2K Enterprise SATA Hard Drive - Refurbished
Compatibility Summary
WD RE3 drives combine up to 32 MB cache with SATA 3 Gb/s transfer rate for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.
| Massive capacity - WD RE3 Enterprise SATA drives are available in capacities up to 1 TB. Dual processor - Twice the processing power results in a 20% performance improvement over the previous generation. StableTrac™ - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. RAFF™ - Our fourth generation RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time for up to a 60% performance improvement in high vibration environments over the previous generation of drives. IntelliSeek™ - Calculates optimum seek speeds to lower power consumption, noise, and vibration. Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data. RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives. Third generation dynamic fly height - Each read-write head’s fly height is adjusted in real time for optimum reliability. Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation. NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit. Perpendicular Magnetic Recording (PMR) - WD RE3 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin. |
| Ideal For Ideal for servers, storage arrays, video surveillance, and other demanding write-intensive applications. |
Capacity: 500GB
Compatibility:
This drive is compatible with any of our 3.5" SATA drive trays and any computer / server that uses SATA drives.
| Specifications | |
|---|---|
| Model number | WD5002ABYS |
| Model Name | RE3 |
| Formatted Capacity | 500 Gbytes |
| Rotational Speed | 7,200 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 300 MBytes/sec |
| Average Latency | 4.2 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.69 kg |
| Electrical | |
| Power 12VDC (Rd/Wr; Idle; Standby; Sleep) | 490 mA; 470 mA; 5mA; 5mA |
| Power 5VDC (Rd/Wr; Idle; Standby; Sleep) | 500 mA; 420 mA; 160mA; 160mA |
| Environmental | |
| Max Operating Shock (2-msec) | 65 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | .75 Gs |
| Nonoperating Vibration (max) | 4.0 Gs |
| Operating Temperature (max) | 60 deg C |
| Operating Temperature (min) | 0 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 28 dBA |
| MTBF (Hours) | 1,200,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
1 Year DiscTech Warranty
