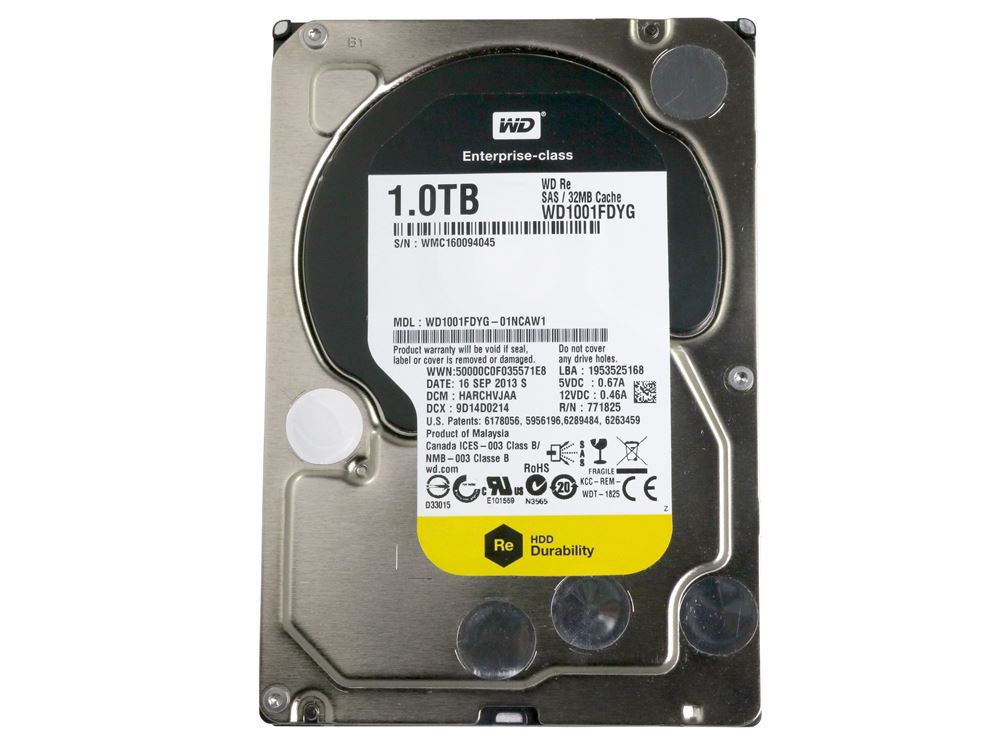

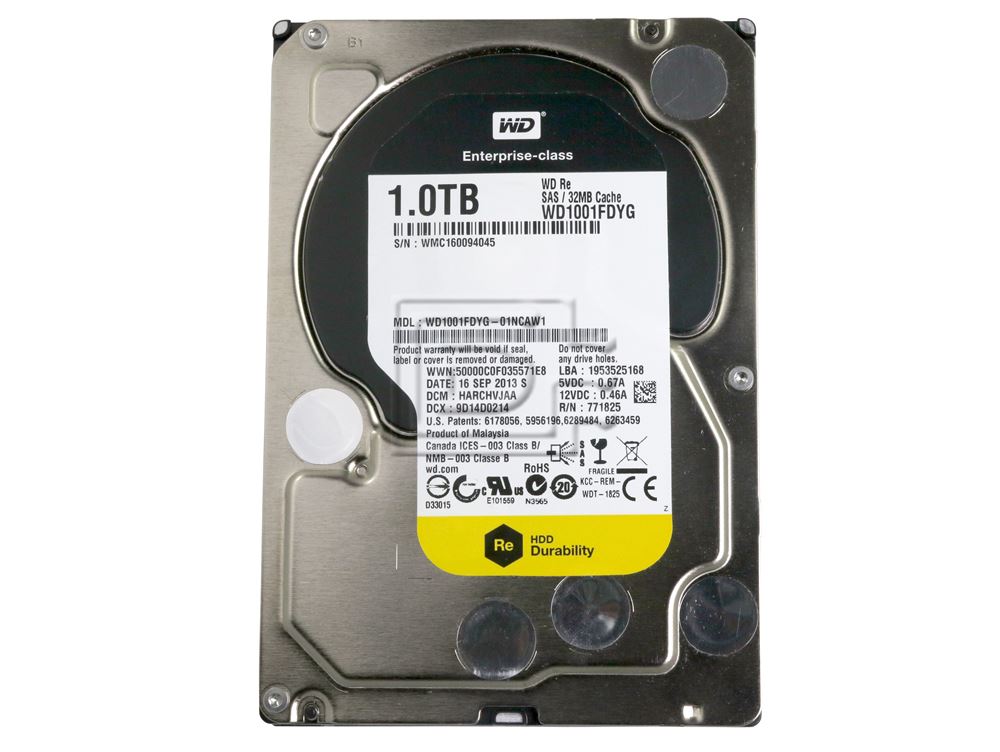

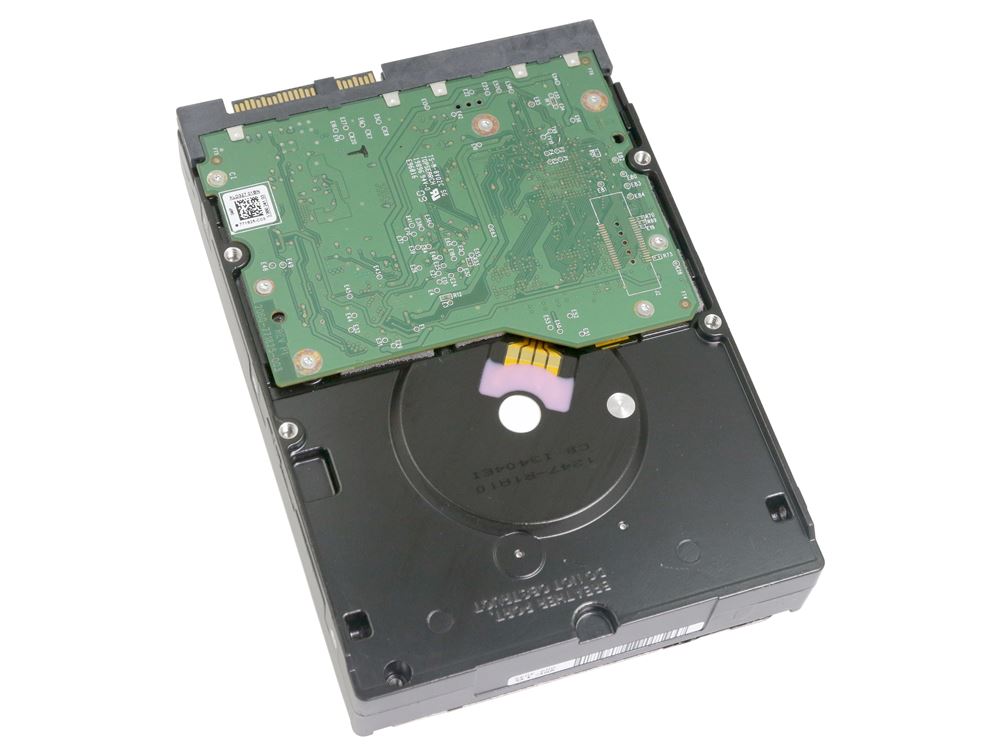

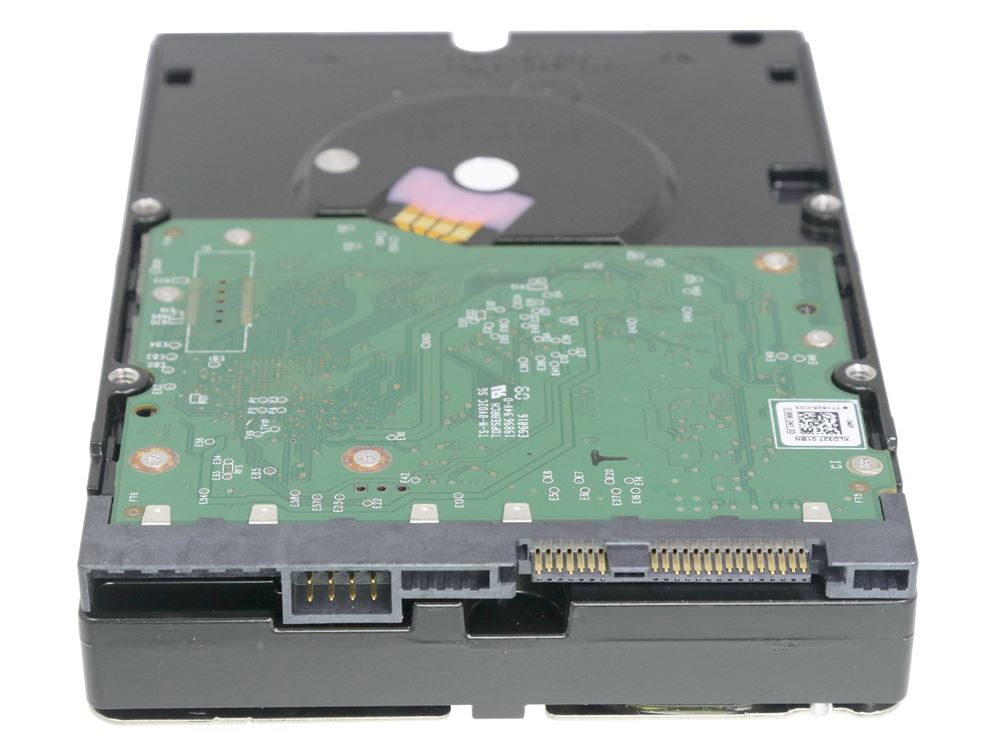

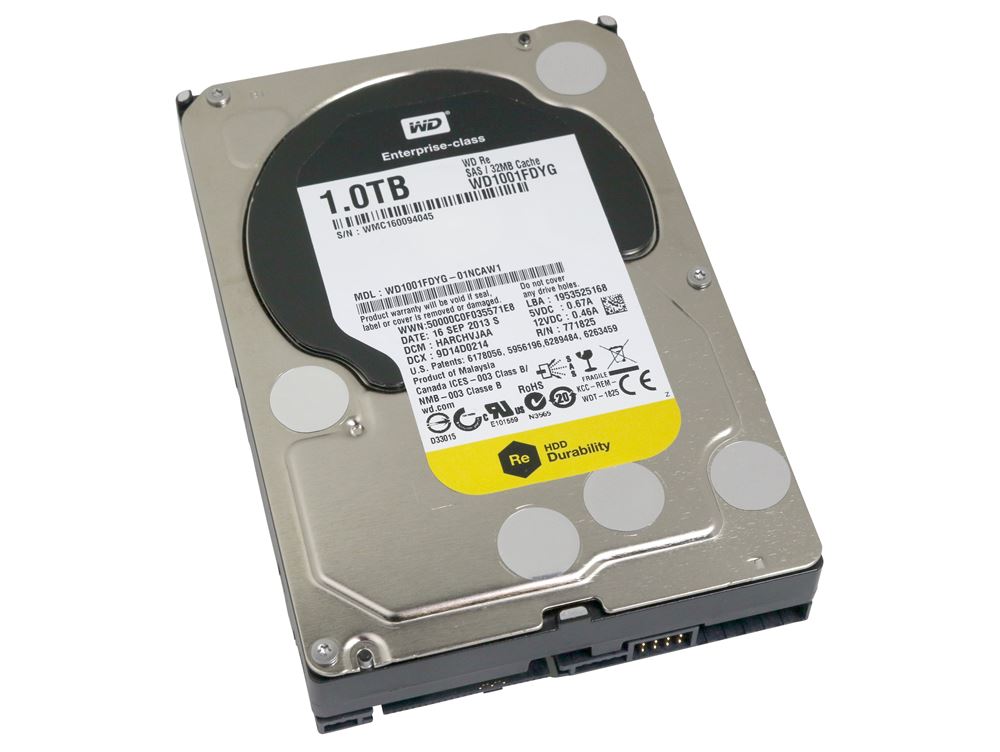

Western Digital RE WD1001FDYG 1TB 7.2K 3.5in LFF SAS SED Hard Drive

- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:16Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
Capacity: | 1TB |
Speed: | 7.2K RPM |
Interface Types: | SAS |
Form Factor: | 3.5" LFF Hard Drive |
Electrical Interface: | SAS-2 6Gbps |
RAM: | 32MB |
Description
This 3.5" Western Digital 4TB Drive is the industries highest capacity nearline drive. It delivers 6 Gb/s transfer rates and being designed for quality and reliability, it delivers 24/7 operation in up to 100% duty cycles.
By eliminating single points of failure this drive offers higher reliability, performance, and data availability for leading business-critical enterprise topologies. This drive is RoHS compliant. With a head positioning system equip with two actuators, positional accuracy is improved over the data track(s). The primary actuator is able to provide coarse displacement, using conventional electromagnetic actuator principles; while the secondary actuator then uses piezoelectric motion to then fine tune the head positioning to a higher degree of accuracy.
With this drive comes a significant performance improvement in high vibration environments. This is achieved by enhanced RAFF technology, that includes sophisticated electronics that monitor the drive and are able to correct both linear and rotational vibration in real time. This drive also has RAID-specific time limited error recovery (TLER) that prevents drive fallout that is caused by the extended hard drive error-recovery process, common to desktop drives. With a stunningly fast 6Gb/s SAS interface, there is an easy integration into SAS storage subsystems, while continuing to delver twice the interface speed of traditional 3Gb/s SAS nearline hard drives.
This drive is ideal for high-capacity data center storage, business-critical environments, high-performance computing, storage area networks (SAN), network attached storage (NAS), direct attached storage (DAS), cloud storage, as well as surveillance systems.
Compatibility: This hard drive is compatible with: Windows 7/Vista/XP/2000, Windows Server, Linux, and Mac OS.
Specifications
Product Specifications | |
Interface | SAS 6 Gb/s |
Performance Specifications | |
Rotational Speed | 7,200 RPM (nominal) |
Buffer Size | 32 MB |
Load/unload Cycles | 600,000 minimum |
Transfer Rates | |
Transfer Rate (Buffer To Disk) | 182 MB/s (Sustained) |
Physical Specifications | |
Capacity | 4 TB |
User Sectors Per Drive | 7,814,037,168 |
Physical Dimensions | |
English | |
Height | 1.028 Inches |
Depth | 5.787 Inches |
Width | 4.00 Inches |
Weight | 1.66 Lbs |
Metric | |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Weight | 0.75 kg |
Environmental Specifications | |
Shock | |
Operating Shock (Read) | 65G, 2 ms |
Non-operating Shock | 300G, 2 ms |
Acoustics | |
Idle Mode | 31 dBA (average) |
Seek Mode 0 | 34 dBA (average) |
Temperature (English) | |
Operating | 41° F to 131° F |
Non-operating | -40° F to 158° F |
Temperature (Metric) | |
Operating | 5° C to 55° C |
Non-operating | -40° C to 70° C |
Electrical Specifications | |
Current Requirements | |
Power Dissipation: | |
Read/Write | 11.50 Watts |
Idle | 9.20 Watts |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
