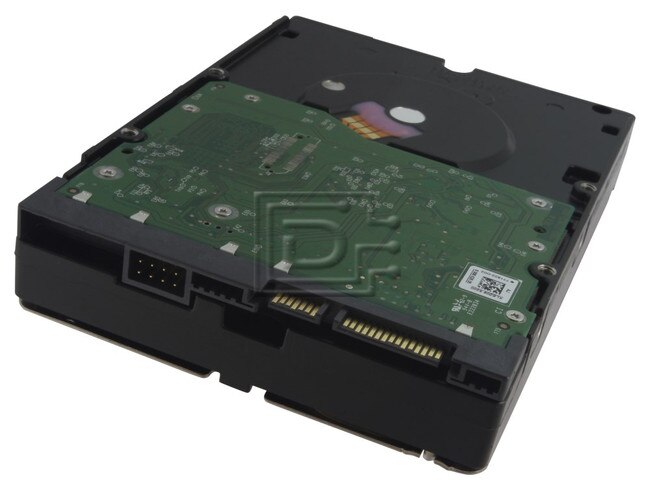

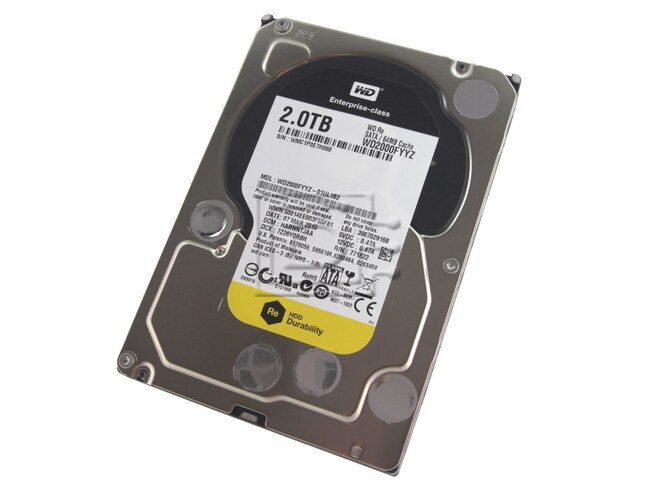

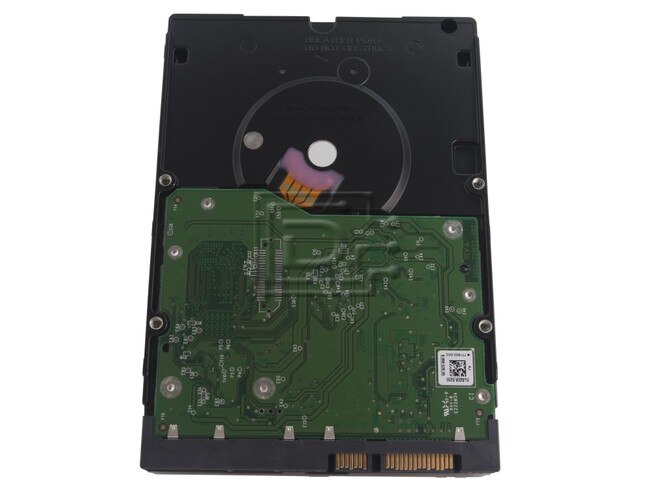

Western Digital RE WD2000FYYZ 2TB SATA Hard Disk Drive

- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
Capacity: | 2TB |
Speed: | 7.2K RPM |
Interface Types: | SATA |
Form Factor: | 3.5" LFF Hard Drive |
Electrical Interface: | SATA 600 - 6Gbps |
RAM: | 64MB |
Description
Western Digital RE WD2000FYYZ 2TB 7.2K 3.5" SATA 6 Gb/s - Brand New
This 3.5" Western Digital 2TB SATA Drive is the industries highest capacity nearline drive.It delivers 6 Gb/s transfer rates, with a sustained sequential data rate of up to 171 MB/s along with high random I/O rates.
With a field-tested 1.2 million hour MTBF, this high performance drive delivers the highest level of reliability for 24x7 operation in up to 100% duty cycle applications. It has a dual processor, allowing twice the processing power to maximize performance. In addition is a head positioning system equipped with two actuators, allowing positional accuracy is improved over the data track(s). The primary actuator is able to provide coarse displacement, using conventional electromagnetic actuator principles; while the secondary actuator then uses piezoelectric motion to then fine tune the head positioning to a higher degree of accuracy.
With this drive comes a significant performance improvement in high vibration environments. This is achieved by enhanced RAFF technology that includes sophisticated electronics that monitor the drive and are able to correct both linear and rotational vibration in real time. On top of that, the motor shaft is secured at both ends, reducing the system-induced vibration and stabilizes platters for accurate tracking during read and writes operations. In an effort to protect data, the multi-axis shock sensor automatically detects shock events and compensates for them.
This drive also has RAID-specific time limited error recovery (TLER) that prevents drive fallout that is caused by the extended hard drive error-recovery process, common to desktop drives. Due to the NoTouch ramp load technology this hard drive is equip with, The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
This drive is ideal for high-capacity data center storage, business-critical environments, high-performance computing, storage area networks (SAN), network attached storage (NAS), direct attached storage (DAS), cloud storage, as well as surveillance systems.
Alternate MPN: WD2000FYYZ-01UL1B1
Compatibility:
This hard drive is compatible with: Windows 7/Vista/XP/2000, Windows Server, Linux, and Mac OS.
Specifications
Product Specifications | ||
Interface | SATA 6 Gb/s | |
Performance Specifications | ||
Rotational Speed | 7,200 RPM (nominal) | |
Buffer Size | 64 MB | |
Load/unload Cycles | 600,000 minimum | |
Transfer Rates | ||
Buffer To Host (Serial ATA) | 6 Gb/s (Max) | |
Physical Specifications | ||
Capacity | 2 TB | |
User Sectors Per Drive | 3,907,029,168 | |
Physical Dimensions | ||
English | ||
Height | 1.028 Inches | |
Depth | 5.787 Inches | |
Width | 4.00 Inches | |
Weight | 1.66 Pounds | |
Metric | ||
Height | 26.1 mm | |
Depth | 147 mm | |
Width | 101.6 mm | |
Weight | 0.75 kg | |
Environmental Specifications | ||
Shock | ||
Operating Shock (Read) | 30G, 2 ms | |
Non-operating Shock | 300G, 2 ms | |
Power Management | ||
Read (Peak Watts) | 7.60 Watts | |
Write (Peak Watts) | 7.40 Watts | |
Acoustics | ||
Idle Mode | 31 dBA (average) | |
Seek Mode 0 | 34 dBA (average) | |
Temperature (English) | ||
Operating | 41° F to 131° F | |
Non-operating | -40° F to 158° F | |
Temperature (Metric) | ||
Operating | 5° C to 55° C | |
Non-operating | -40° C to 70° C | |
Electrical Specifications | ||
Current Requirements | ||
Power Dissipation | ||
Read/Write | 8.90 Watts | |
Idle | 6.20 Watts |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: WD2000FYYZ-01UL1B1
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
