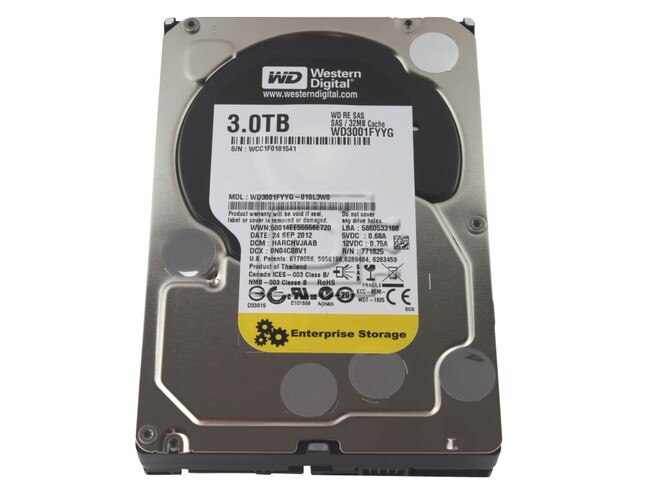

Western Digital RE WD3001FYYG 3TB SAS Hard Drive

Western Digital Part #/MPN: WD3001FYYG

DiscTech Item #: WDC-WD3001FYYG-BN-5Y


$180.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$180.00

Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 175

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 32MB

Western Digital RE WD3001FYYG 3TB 7.2K 3.5" SAS 6 Gb/s - Brand New

This 3.5" Western Digital 3TB Drive is among the industries highest capacity nearline drives. It delivers 6 Gb/s transfer rates and being designed for quality and reliability, with 24/7 operation in up to 100% duty cycles.

By eliminating single points of failure this drive offers higher reliability, performance, and data availability for leading business-critical enterprise topologies. This drive is RoHS compliant. With a head positioning system equip with two actuators, positional accuracy is improved over the data track(s). The primary actuator is able to provide coarse displacement, using conventional electromagnetic actuator principles; while the secondary actuator then uses piezoelectric motion to then fine tune the head positioning to a higher degree of accuracy.

With this drive comes a significant performance improvement in high vibration environments. This is achieved by enhanced RAFF technology, that includes sophisticated electronics that monitor the drive and are able to correct both linear and rotational vibration in real time. This drive also has RAID-specific time limited error recovery (TLER) that prevents drive fallout that is caused by the extended hard drive error-recovery process, common to desktop drives. With a stunningly fast 6Gb/s SAS interface, there is an easy integration into SAS storage subsystems, while continuing to delver twice the interface speed of traditional 3Gb/s SAS nearline hard drives.

This drive is ideal for high-capacity data center storage, business-critical environments, high-performance computing, storage area networks (SAN), network attached storage (NAS), direct attached storage (DAS), cloud storage, as well as surveillance systems.


Compatibility:

This hard drive is compatible with: Windows 7/Vista/XP/2000, Windows Server, Linux, and Mac OS.

Product Specifications
InterfaceSAS 6 Gb/s
Performance Specifications
Rotational Speed7,200 RPM (nominal)
Buffer Size32 MB
Load/unload Cycles600,000 minimum
Transfer Rates
Transfer Rate (Buffer To Disk)175 MB/s (Sustained)
Physical Specifications
Capacity3 TB
User Sectors Per Drive5,860,533,168
Physical Dimensions
English
Height1.028 Inches
Depth5.787 Inches
Width4.00 Inches
Weight1.66 Lbs
Metric
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.75 kg
Environmental Specifications
Shock
Operating Shock (Read)65G, 2 ms
Non-operating Shock300G, 2 ms
Acoustics
Idle Mode31 dBA (average)
Seek Mode 034 dBA (average)
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 158° F
Temperature (Metric)
Operating5° C to 55° C
Non-operating-40° C to 70° C
Electrical Specifications
Current Requirements
Power Dissipation:
Read/Write11.50 Watts
Idle9.20 Watts


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
