Western Digital Part #/MPN: WD1500ADFD
DiscTech Item #: WDC-WD1500ADFD-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 150GB
Speed: 10,000RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 16MB

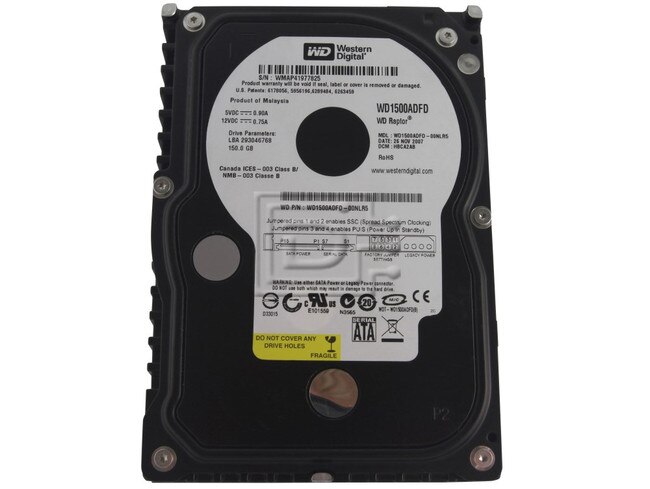

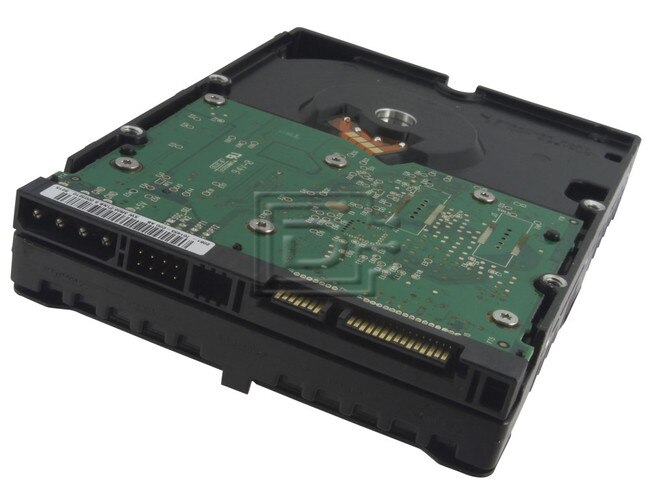

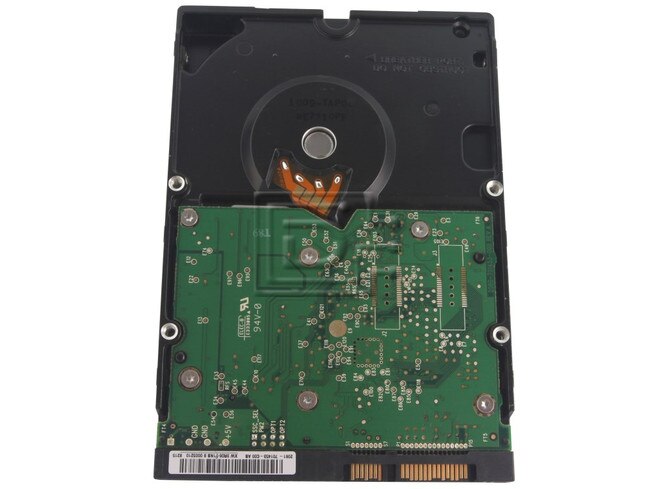

Western Digital Raptor WD1500ADFD 150GB 10K SATA Enterprise Hard Drive - Brand New
Some hard drive companies design desktop-class drives with the SATA interface. To meet the demands of enterprise storage, WD is going one better. WD is the only company combining a 10,000 RPM enterprise-class mechanical platform with the SATA interface to meet all the demands of the enterprise environment—reliability, performance, and reduced cost.
Product Benefits
WD produces the world’s most reliable SATA drives. With 1.2 million hours MTBF, enterprise duty cycle, 5-year warranty, next-generation SATA technology, and state-of-the-art vibration tolerance, WD Raptor drives offer the best combination of reliability, high capacity, and performance for enterprise applications.
Product Features
Reliable — designed and manufactured to enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.2 million hours MTBF, these drives have the highest available reliability rating on a high-capacity drive.
Fast — with a next-generation SATA interface, 1.5 Gb/s data transfer rate, native command queuing (NCQ), and 16 MB cache, these drives deliver optimum performance.
RAID-specific, time-limited error recovery (TLER) — a feature unique to WD, prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Rotary Acceleration Feed Forward (RAFF™) — optimizes operation and performance when the drives are used in vibration-prone, multidrive systems such as rack-mounted servers or network storage.
FlexPower™ — connector technology that accepts power from either industry-standard or new SATA power supplies.
Applications
Servers, network attached storage, scientific computing, video surveillance, enterprise backup, document and image management, digital video.
Drive specification | WD1500ADFD |
Formatted Gbytes (512 bytes/sector) | 150 |
Bytes per sector | 512 |
Spindle speed (RPM) | 10,000 |
I/O data transfer rate (MBps) | 150 |
Cache buffer | 16 Mbytes |
Interface Type | Serial ATA-150 |
Average latency | 2.99 ms |
Seek time (read / write) ms | 4.6 / 5.2 |
Track-to-track seek - Read | 0.3 ms (average), 0.6 (maximum) |
Track-to-track seek - Write | 0.4 ms (average), 0.75 (maximum) |
Start/stop cycles | 20,000 minimum |
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
