Western Digital Part #/MPN: WD740GD
DiscTech Item #: WDC-WD740GD-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:4Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 73GB
Speed: 10,000RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.1
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 8MB

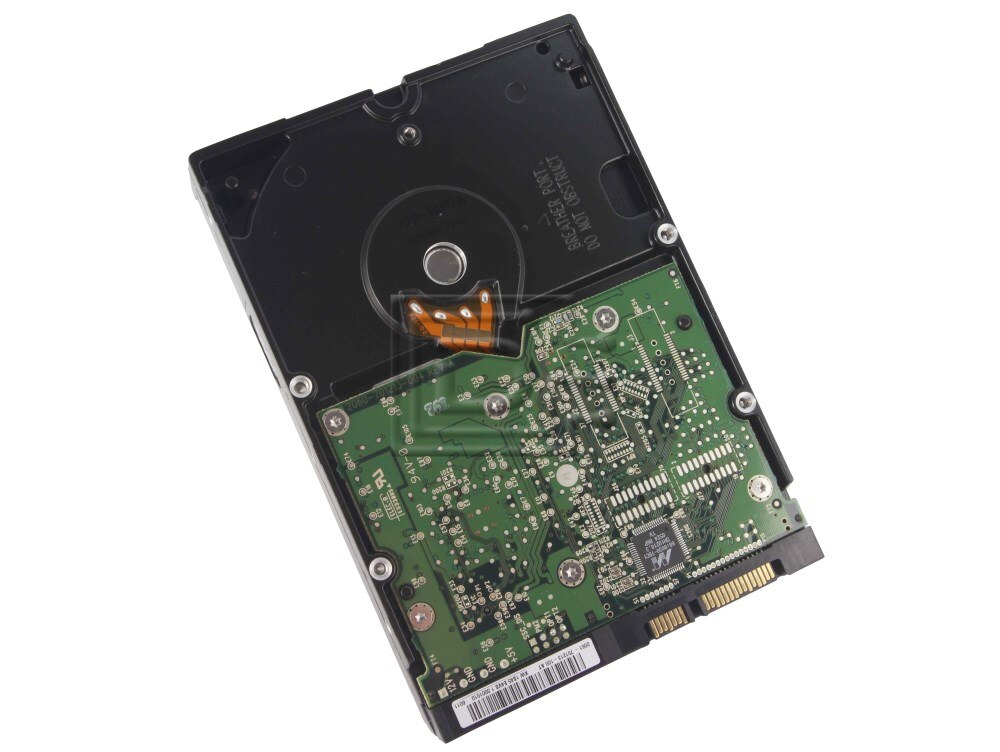

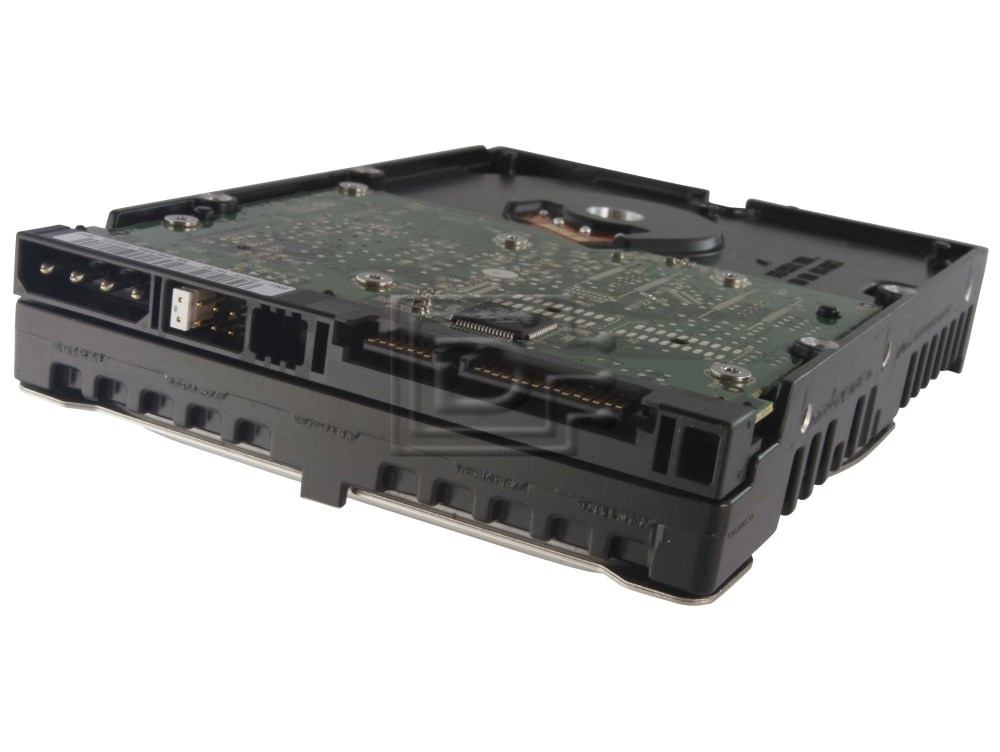

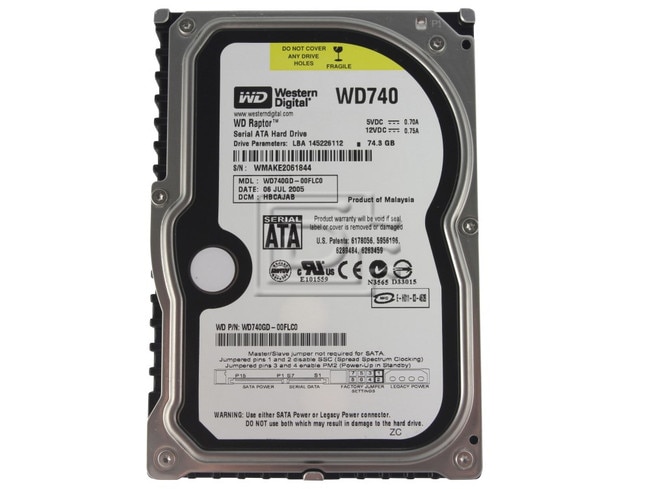

Western Digital Raptor WD740GD 74GB 10K SATA Hard Drive - Refurbished
Western Digital Raptor WD740GD 74GB 10K SATA Hard Drive - Refurbished
Compatibility:
This drive is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.
| Specifications | |
|---|---|
| Model Name | WD Raptor |
| Model Number | WD740GD |
| Capacity | 74GB |
| Formatted capacity | 74,356 MB |
| User sectors per drive | 146,226,112 |
| SATA latching connector | Yes |
| Bytes per sector (STD) | 512 |
| Form factor | 3.5-inch |
| Interface | SATA 1.5 Gb/s |
| RoHS compliant | Yes |
| Performance | |
| Average latency | 2.99 ms |
| Buffer | 8 MB |
| Cache Read Write | Adaptive Yes |
| Data transfer rate (buffer to host) | 150 MB/s (maximum) |
| Drive ready time | 7.0 sec (average), 10 sec (maximum) |
| Error rate (non-recoverable) | <1 in 10^15 bits read |
| LBA support | Yes |
| MTBF | 1,200,000 |
| Rotational speed | 10,000 RPM |
| Seek time Read Write | 4.5 ms (average) 5.1 ms (average) |
| Track-to-track seek Read Write | 0.3 ms (average), 0.6 (maximum) 0.4 ms (average), 0.75 (maximum) |
| Start/stop cycles | 20,000 minimum |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
