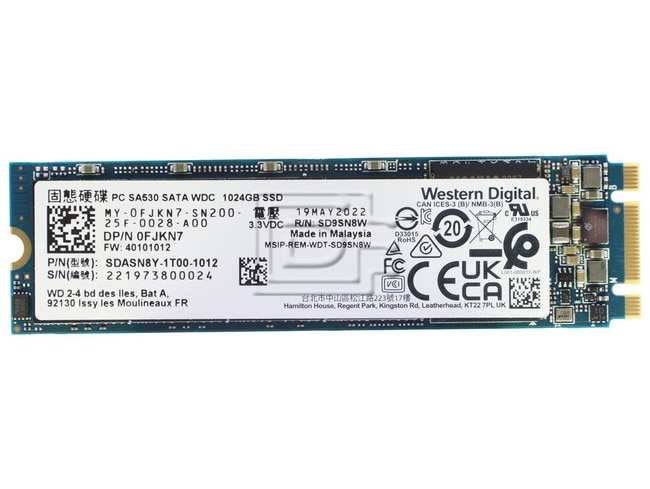

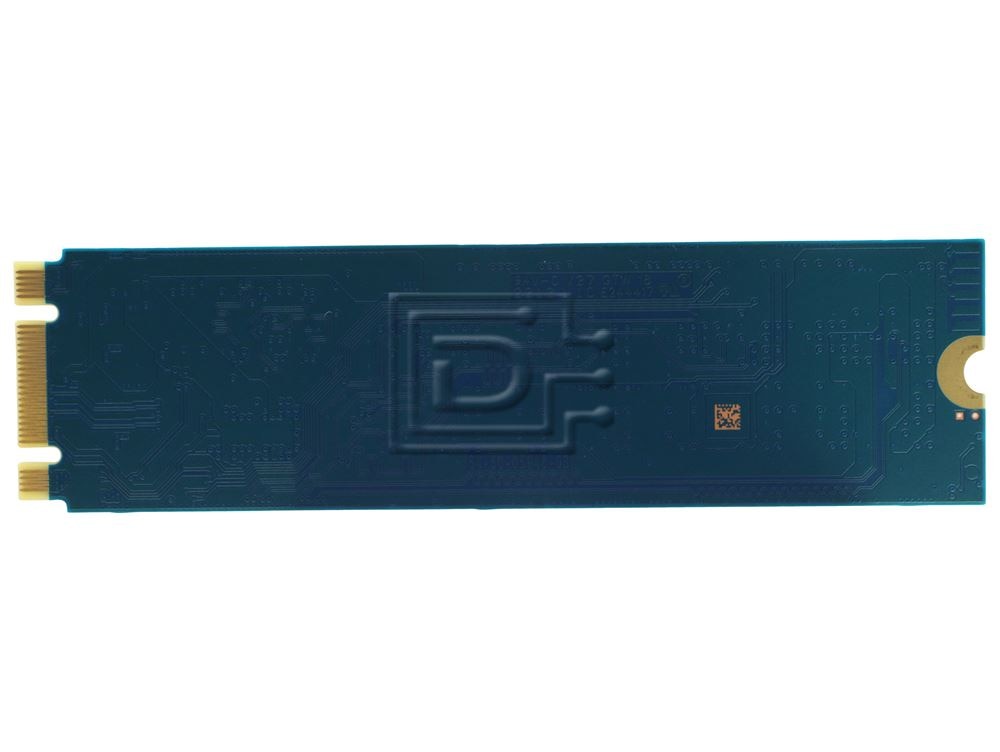

Western Digital SA530 SDASN8Y-1T00-1012 / Dell FJKN7 1TB M.2 2280 6Gbps 3D NAND SATA SSD
| Capacity: | 1TB |
| Speed: | Solid State |
| Interface Types: | SATA M.2 NGFF |
| Form Factor: | M.2 x 80mm |
| SSD Endurance DWPD: | Consumer / Value |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Western Digital PC SA530 SDASN8Y-1T00-1012 / Dell FJKN7 / 1TB M.2 2280 6Gbps 3D NAND SLC Cache / TLC Consumer SATA Solid State Drive - Brand New OEM
Western Digital PC SA530 SDASN8Y-1T00-1012 / Dell FJKN7 / 1TB M.2 2280 6Gbps 3D NAND SLC Cache / TLC Consumer SATA Solid State Drive - Brand New OEM
High Performance and High Capacity for Computing
Based on Western Digital 96-layer 3D NAND, the Western Digital PC SA530 3D NAND SATA SSD delivers high performance, high capacity, and superior endurance. In capacities of up to 1TB, the Western Digital PC SA530 achieves this while expending less power than our previous generations of SATA SSDs. The Western Digital PC SA530 combines Western Digital’s state-of-the-art 96-layer 3D NAND technology with our proven SSD platform. It also incorporates nCache™ 2.0, a tiered caching technology designed to improve responsiveness for corporate and consumer workloads. nCache 2.0 uses a combination of both SLC (single level cell) and TLC flash blocks to improve endurance, increase efficiency, and boost performance. Writing data first to the SLC cache reduces write amplification on the TLC blocks. With on-the-fly hardware-based encryption, the Western Digital PC SA530 (SED models only) provides complete end-to-end encryption to the storage, system and infrastructure. It supports password protection, AES-256-bit encryption, TCG-OPAL 2.01 standard and PSID.
Lower Power, Higher Capacity and Thin Form
Factors Offers Design Flexibility The Western Digital PC SA530 is optimized for the demanding power management requirements of ultra-thin and small form factor products. It features Device Sleep (DEVSLP), more frequent use of low-power modes, and faster transitions between various power modes. Also included for superior error recovery, DataGuard™ Client provides a robust on-the-fly error handling technology. With a variety of design and integration options for manufacturers and systems builders, the Western Digital PC SA530 is available in either an SATA 2.5”/7mm cased or an M.2 2280 form factor, with capacities of 256 gigabytes (GB), 512GB, and 1 terabyte (TB).
DP/N: FJKN7 / 0FJKN7
Alt MP/N: SDASN8Y-1T00 / SD9SN8W
Compatibility:
The PC SA530 NAND SATA SSD is optimized for the demanding power management requirements of ultra-thin and small form factor products.
Specifications
| Western Digital / SanDisk® PC SA530 3D NAND SATA SSD | |
|---|---|
| Model Number | SDASN8Y-1T00-1012 |
| Form Factor | M.2 2280 |
| Interface | SATA 6 Gb/s |
| Size | 2.23mm x 22.00mm x 80.0mm @ 7 ± 1g |
| Capacity | 1TB / 1000GB |
| Seq. Read up to (MB/s) | 560 |
| Seq. Write up to (MB/s) | 530 |
| Rand Read up to (IOPS) | 95K |
| Rand Write up to (IOPS) | 84K |
| Endurance (TBW) | 400 |
| Average Active Power (mW) | 60 |
| Max Read Operating (mW) | 2550 |
| Max Write Operating (mW) | 3750 |
| Slumber (mW) | 52 |
| DEVSLP (mW) | 5-12 |
| MTTF | Up to 1,750,000 hours |
| Operating Temperatures | 0°C to 70°C |
| Non-operating Temperatures | -55°C to 85°C |
| Operating Vibration | 5.0 gRMS, 10 – 2000 Hz |
| Non-operating Vibration | 4.9 gRMS, 7 – 800 Hz |
| Shock | 1,500 G @0.5 msec half sine |
| Certifications | FCC UL TUV KC BSMI VCCI |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: SDASN8Y-1T00 FJKN7 0FJKN7 SD9SN8W
Weight: 0.25 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
