Western Digital Part #/MPN: WD3200BEKT
DiscTech Item #: WDC-WD3200BEKT-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 320GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: 147
Average Seek Time: 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

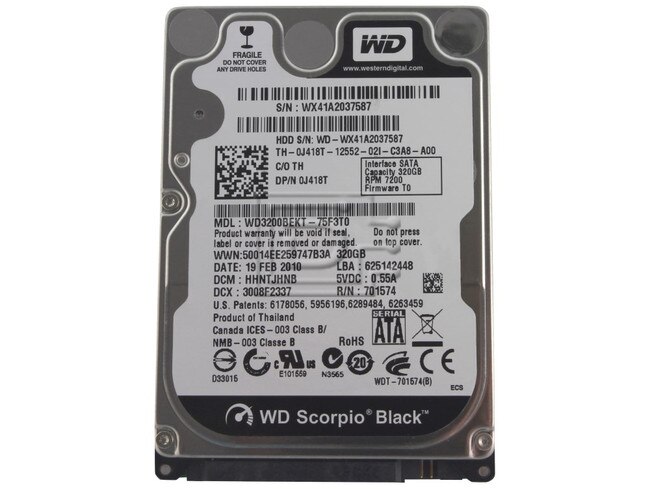

Western Digital Scorpio Black WD3200BEKT 320GB 7.2K Mobile 2.5" SATA Hard Drive - Refurbished OEM
Quiet - In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and Rugged - WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark ™ parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Alternate PNs: W5Y3D 0W5Y3D
Performance Specifications | |
Rotational Speed | 7,200 RPM (nominal) |
Buffer Size | 16 MB |
Average Latency | 4.20 ms (nominal) |
Seek Times | |
Read Seek Time | 12.0 ms |
Track-To-Track Seek Time | 2.0 ms (average) |
Transfer Rates | |
Buffer To Host (Serial ATA) | 3.0 Gb/s (Max) |
Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) |
Physical Specifications | |
Formatted Capacity | 320,072MB |
Capacity | 320 GB |
Interface | SATA 3.0 Gb/s |
Physical Dimensions | |
English | |
Height | 0.374 Inches ±0.008 inch |
Length | 3.94 Inches ±0.010 inch |
Width | 2.75 ±0.010 inch |
Weight | 0.22 Pounds |
Metric | |
Height | 9.5 mm ±0.20 mm |
Length | 100.2 ±0.25 mm |
Width | 69.85 ±0.25 mm |
Weight | 0.117 kg |
Environmental Specifications | |
Acoustics | |
Idle Mode | 28 dBA (average) |
Seek Mode 0 | 25 dBA (average) |
Temperature (English) | |
Operating | 32° F to 140° F |
Non-operating | -40° F to 149° F |
Temperature (Metric) | |
Operating | 0° C to 60° C |
Non-operating | -40° C to 65° C |
Humidity | |
Operating | 8-90% RH non-condensing |
Non-operating | 5-95% RH non-condensing |
Altitude (English) | -1,000 feet to 10,000 feet |
Non-operating | -1,000 feet to 40,000 feet |
Altitude (Metric) | |
Operating | -305M to 3,050M |
Non-operating | -305M to 12,200M |
Vibration | |
Operating | |
Linear | 10-500 Hz, 1.0G (0 to peak) |
Random | 10-500 Hz (0.309 g² / Hz) |
Electrical Specifications | |
Current Requirements | |
5 VDC | |
Read/Write | 500 mA |
Idle | 400 mA |
Standby | 50 mA |
Sleep | 20 mA |
Power Dissipation | |
Read/Write | 2.50 Watts |
Idle | 0.85 Watts |
Standby | 0.25 Watts |
Sleep | 0.10 Watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: W5Y3D 0W5Y3D J418T 0J418T
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
