Western Digital Part #/MPN: WD5000BEKT
DiscTech Item #: WDC-WD5000BEKT-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 8.9 / 10.9
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

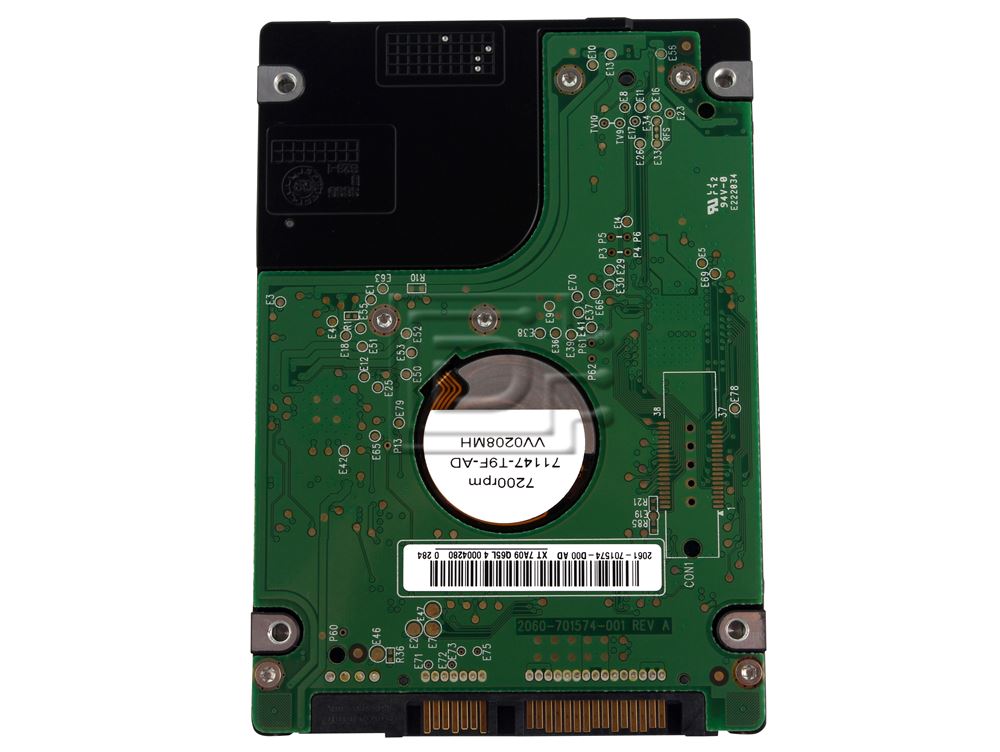

Western Digital Scorpio Black WD5000BEKT 500GB 7.2K 2.5" Mobile SATA Hard Drive - Refurbished OEM
Desktop-class performance for notebook computers
With 7200 RPM spin speed,16 MB cache, and capacities up to 750 GB, these drives enable you to have the best of both worlds: the capacity and performance of a desktop PC with the convenience and portability of a notebook.
Reliable and rugged
WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks during shipping and handling and in daily operation. WD’s SecurePark parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface, resulting in improved long-term reliability due to less head wear and improved non-operational shock tolerance
Massive capacity
WD’s 750 GB 2.5-inch drives offer huge capacity for space-hungry operating systems with plenty of room left over for photos, music, and video
Low power consumption
With technologies like IntelliSeek™, which calculates optimum seek speeds to lower power consumption and SecurePark™, which reduces power by parking the heads during low power idle mode, this drive delivers 5400 RPM-equivalent power consumption in a 7200 RPM drive
Tested for compatibility
We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab™ and Mobile Compatibility Lab to give WD customers confidence that our drives will work in their systems.
Advanced Format (AF)
Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities. (BPKT models only).
Quiet
In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-ofthe-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market.
Dell p/n: 4YY77 04YY77
Compatibility:
This drive is compatible with any computer that accepts 3.5" SATA drives.
| Performance Specifications | WD5000AAKS |
| Rotational Speed | 7200 RPM |
| Buffer Size | 16 MB |
| Average Latency | 4.20 ms (nominal) |
| Seek Time | |
| Full Stroke Seek | 28 ms (average) |
| Transfer Rates | |
| Buffer To Host (Serial ATA) | 3 Gb/s (Max) |
| Buffer To Disk | 154 Mbits/s (Max) |
| Physical Specifications | |
| Formatted Capacity | 500,107 MB |
| Capacity | 500 GB |
| Interface | SATA 3 Gb/s |
| User Sectors Per Drive | 976,773,168 |
| Physical Dimensions | |
| English | |
| Height | 0.374 Inches (Max) |
| Length | 3.94 Inches (Max) |
| Width | 2.75 Inches (+/- 0.010 inch) |
| Weight | 0.24 Pounds |
| Metric | |
| Height | 9.50 mm (Max) |
| Length | 100.20 mm (Max) |
| Width | 69.85 mm |
| Weight | 0.106 kg |
| Environmental Specifications | |
| Operating Shock (Read) | 350G, 2 ms |
| Non-operating Shock | 1000G, 2 ms |
| Acoustics | |
| Idle Mode | 28 dBA (average) |
| Seek Mode | 28 dBA (average) |
| Temperature (Metric) | |
| Operating | 0° C to 60 ° C |
| Non-operating | -40° C to 65° C |
| Electrical Specifications | |
| 12 VDC Current Requirements | |
| Read/Write | 395 mA |
| Idle | 380 mA |
| Standby | 6 mA |
| Sleep | 6 mA |
| 5 VDC Current Requirements | |
| Read/Write | 660 mA |
| Idle | 532 mA |
| Standby | 180 mA |
| Sleep | 180 mA |
| Power Dissipation | |
| Read/Write | 7.80 Watts |
| Idle | 7.20 Watts |
| Standby | .97 Watts |
| Sleep | .97 Watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 4YY77 04YY77
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
