Western Digital Part #/MPN: WD2500BEVS
DiscTech Item #: WDC-WD2500BEVS-RF-OE-DEL
- Refurbished
- Warranty:1 Year DiscTech
- In Stock:5Need more?
Capacity: 250GB
Speed: 5.4K RPM
Interface Types: SATA
Form Factor: 2.5" x 9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 300 - 3Gbps
On-Board Cache: 8MB

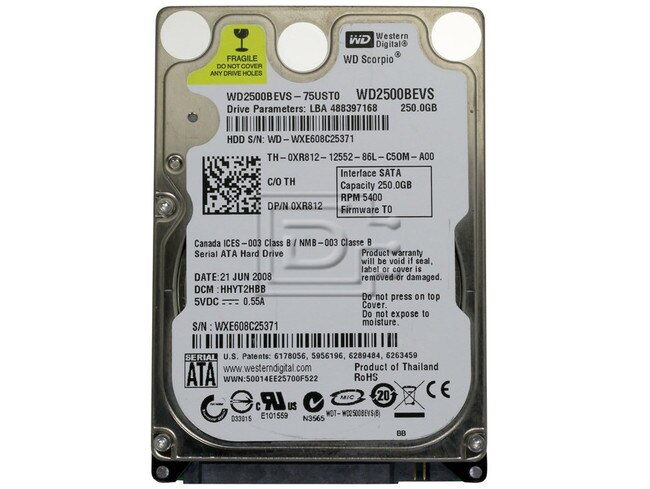

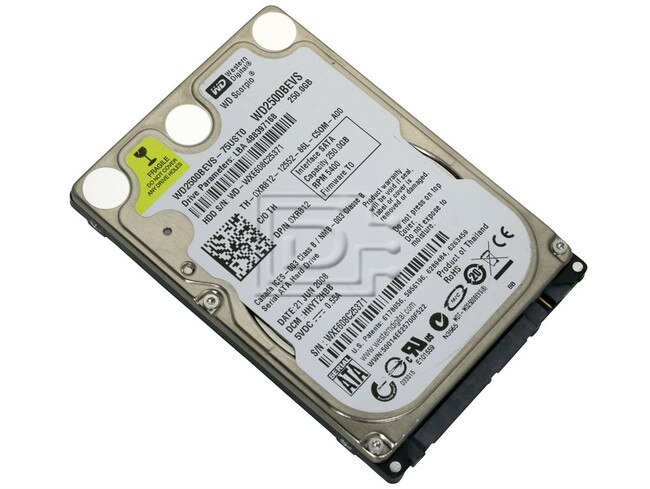

Western Digital Scorpio Blue WD2500BEVS 250GB 5.4K 2.5 inch SATA Hard Drive - Refurbished OEM
Quiet - In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and Rugged - WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark ™ parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Fast and Efficient - With 5400 RPM spin speed and 12 ms access time and up to 3 Gb/s SATA interface speed, even the most demanding customer will appreciate the performance achieved by WD Scorpio Blue drives.
Alt MPN: XR812
| Performance Specifications | ||
 | Rotational Speed | 5,400 RPM (nominal) |
| Buffer Size | 8 MB |
| Average Latency | 5.50 ms (nominal) |
| Seek Times | ||
| Read Seek Time | 12.0 ms |
| Track-To-Track Seek Time | 2.0 ms (average) |
| Transfer Rates | ||
| Buffer To Host (Serial ATA) | 3.0 Gb/s (Max) |
| Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) |
| Physical Specifications | ||
| Formatted Capacity | 250,059MB |
| Capacity | 250 GB |
| Interface | SATA 3.0 Gb/s |
| Physical Dimensions | ||
| English | ||
| Height | 0.374 Inches ±0.008 inch |
| Length | 3.94 Inches ±0.010 inch |
| Width | 2.75 ±0.010 inch |
| Weight | 0.22 Pounds |
| Metric | ||
| Height | 9.5 mm ±0.20 mm |
| Length | 100.2 ±0.25 mm |
| Width | 69.85 ±0.25 mm |
| Weight | 0.117 kg |
| Environmental Specifications | ||
| Acoustics | ||
| Idle Mode | 22 dBA (average) |
| Seek Mode 0 | 25 dBA (average) |
| Temperature (English) | ||
| Operating | 32° F to 140° F |
| Non-operating | -40° F to 149° F |
| Temperature (Metric) | ||
| Operating | 0° C to 60° C |
| Non-operating | -40° C to 65° C |
| Humidity | ||
| Operating | 8-90% RH non-condensing |
| Non-operating | 5-95% RH non-condensing |
| Altitude (English) | ||
| Operating | -1,000 feet to 10,000 feet |
| Non-operating | -1,000 feet to 40,000 feet |
| Altitude (Metric) | ||
| Operating | -305M to 3,050M |
| Non-operating | -305M to 12,200M |
| Vibration | ||
| Operating | |
| Linear | 10-500 Hz, 1.0G (0 to peak) |
| Random | 10-500 Hz (0.309 g² / Hz) |
| Electrical Specifications | ||
| Current Requirements | ||
| 5 VDC | |
| Read/Write | 500 mA |
| Idle | 400 mA |
| Standby | 50 mA |
| Sleep | 20 mA |
| Power Dissipation | ||
| Read/Write | 2.50 Watts |
| Idle | 0.85 Watts |
| Standby | 0.25 Watts |
| Sleep | 0.10 Watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0XR812 XR812
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
1 Year DiscTech Warranty
