Western Digital Part #/MPN: WD3200BEVT
DiscTech Item #: WDC-WD3200BEVT-RF-OE-DEL
- Refurbished
- Warranty:1 Year DiscTech
- Special Order - Ships in 5-10 business days
Capacity: 320GB
Speed: 5.4K RPM
Interface Types: SATA
Form Factor: 2.5" x 9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: 97
Average Seek Time: 12
Electrical Interface: SATA 300 - 3Gbps
On-Board Cache: 8MB

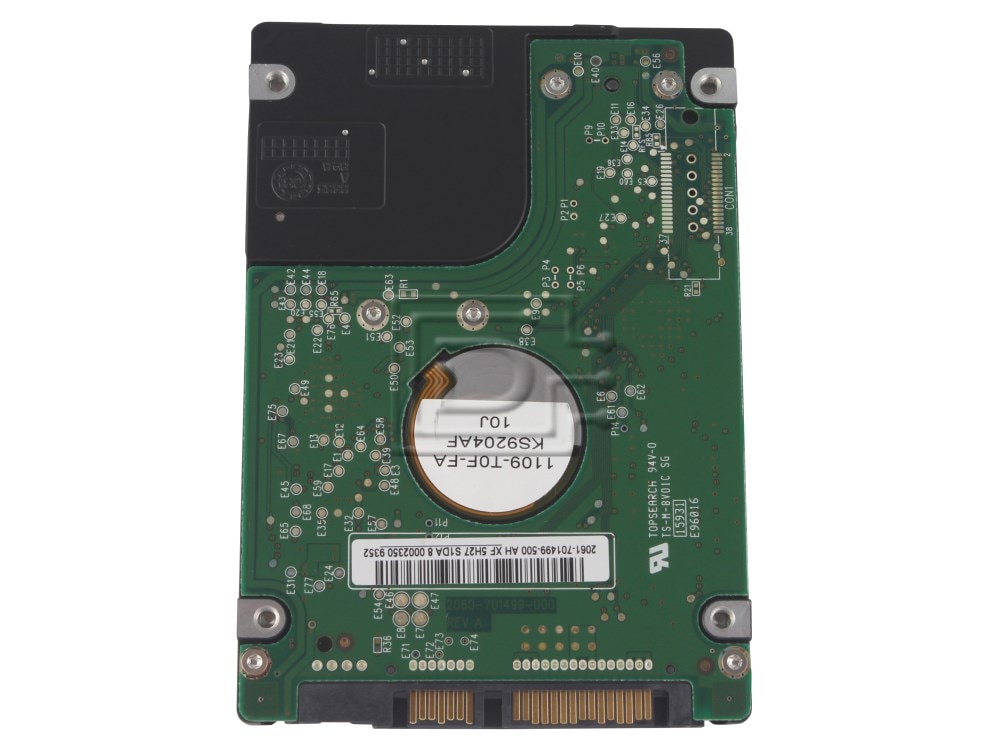

Western Digital Scorpio Blue WD3200BEVT 320GB 5.4K SFF 2.5" SATA Hard Drive - Refurbished OEM
Quiet - In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and Rugged - WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark ™ parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
DPN: 0WU082 / WU082
Performance Specifications | ||
Rotational Speed | 5,400 RPM (nominal) | |
Buffer Size | 8 MB | |
Average Latency | 5.50 ms (nominal) |
Seek Times | ||
Read Seek Time | 12.0 ms | |
Track-To-Track Seek Time | 2.0 ms (average) |
Transfer Rates | ||
Buffer To Host (Serial ATA) | 3.0 Gb/s (Max) | |
Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) |
Physical Specifications | ||
Formatted Capacity | 320,072MB | |
Capacity | 320 GB | |
Interface | SATA 3.0 Gb/s |
Physical Dimensions | ||
English | ||
Height | 0.374 Inches ±0.008 inch | |
Length | 3.94 Inches ±0.010 inch | |
Width | 2.75 ±0.010 inch | |
Weight | 0.22 Pounds |
Metric | ||
Height | 9.5 mm ±0.20 mm | |
Length | 100.2 ±0.25 mm | |
Width | 69.85 ±0.25 mm | |
Weight | 0.117 kg |
Environmental Specifications | ||
Acoustics | ||
Idle Mode | 24 dBA (average) | |
Seek Mode 0 | 26 dBA (average) |
Temperature (English) | ||
Operating | 32° F to 140° F | |
Non-operating | -40° F to 149° F |
Temperature (Metric) | ||
Operating | 0° C to 60° C | |
Non-operating | -40° C to 65° C |
Humidity | ||
Operating | 8-90% RH non-condensing | |
Non-operating | 5-95% RH non-condensing |
Altitude (English) | ||
Operating | -1,000 feet to 10,000 feet | |
Non-operating | -1,000 feet to 40,000 feet |
Altitude (Metric) | ||
Operating | -305M to 3,050M | |
Non-operating | -305M to 12,200M |
Vibration | ||
Operating | ||
Linear | 10-500 Hz, 1.0G (0 to peak) | |
Random | 10-500 Hz (0.309 g² / Hz) |
Electrical Specifications | ||
Current Requirements | ||
5 VDC | ||
Read/Write | 500 mA | |
Idle | 400 mA | |
Standby | 50 mA | |
Sleep | 20 mA |
Power Dissipation | ||
Read/Write | 2.50 Watts | |
Idle | 0.85 Watts | |
Standby | 0.25 Watts | |
Sleep | 0.10 Watts |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0WU082 WU082
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
1 Year DiscTech Warranty
